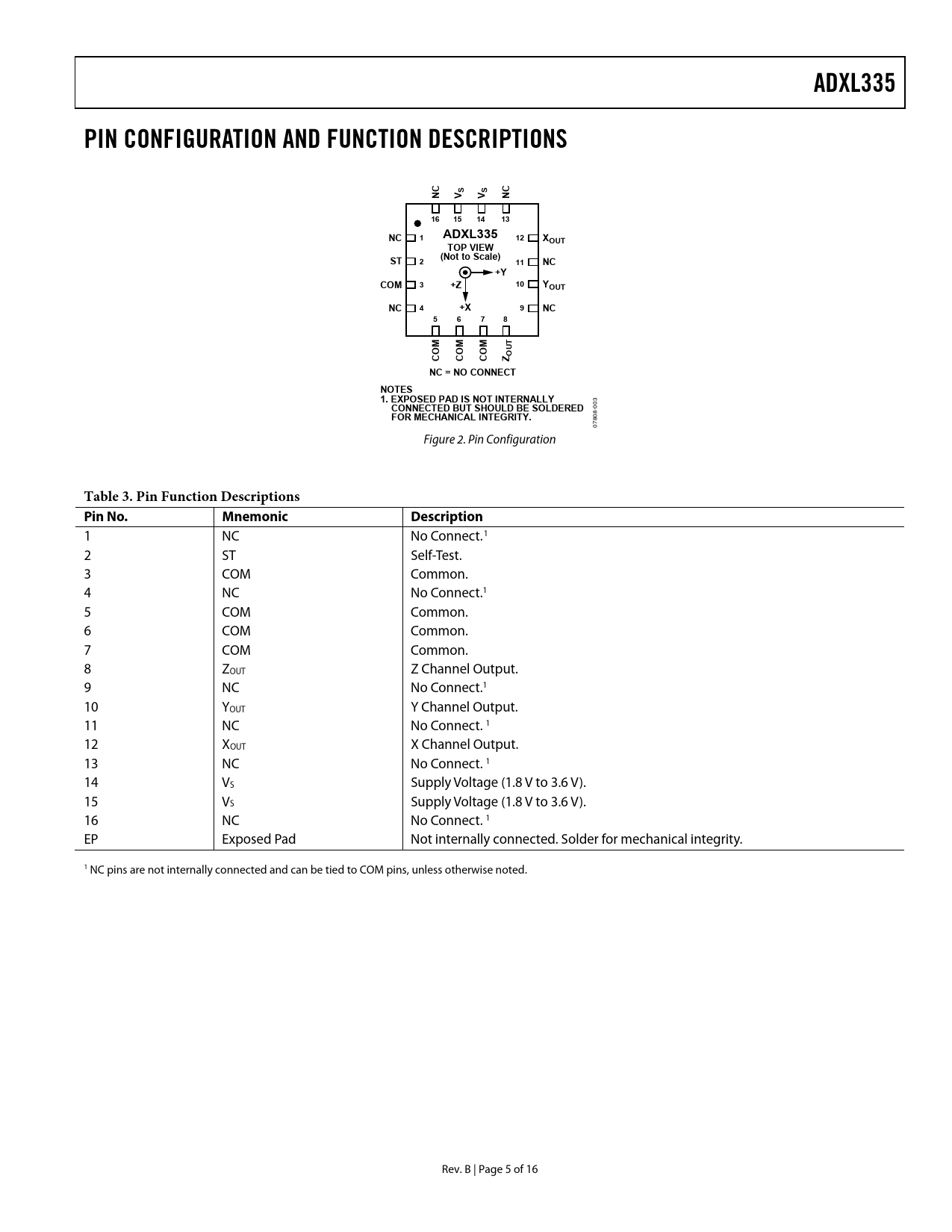

link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 ADXL335PIN CONFIGURATION AND FUNCTION DESCRIPTIONSSSNCVVNC16151413NC1ADXL33512XOUTTOP VIEWST(Not to Scale)211NC+YCOM310+ZYOUTNC4+X9NC5678MMMTCOCOCOZ OUNC = NO CONNECTNOTES1. EXPOSED PAD IS NOT INTERNALLY 3 00 CONNECTED BUT SHOULD BE SOLDERED 8- FOR MECHANICAL INTEGRITY. 80 07 Figure 2. Pin Configuration Table 3. Pin Function Descriptions Pin No.MnemonicDescription 1 NC No Connect.1 2 ST Self-Test. 3 COM Common. 4 NC No Connect.1 5 COM Common. 6 COM Common. 7 COM Common. 8 ZOUT Z Channel Output. 9 NC No Connect.1 10 YOUT Y Channel Output. 11 NC No Connect. 1 12 XOUT X Channel Output. 13 NC No Connect. 1 14 VS Supply Voltage (1.8 V to 3.6 V). 15 VS Supply Voltage (1.8 V to 3.6 V). 16 NC No Connect. 1 EP Exposed Pad Not internally connected. Solder for mechanical integrity. 1 NC pins are not internally connected and can be tied to COM pins, unless otherwise noted. Rev. B | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL SENSOR PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX, CY, AND CZ SELF-TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: THE NOISE/BW TRADE-OFF USE WITH OPERATING VOLTAGES OTHER THAN 3 V AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
