Datasheet ADXL337 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Small, Low Power, 3-Axis ±3 g Accelerometer |
| Páginas / Página | 17 / 5 — Table 2. Parameter Rating. ESD CAUTION |
| Formato / tamaño de archivo | PDF / 332 Kb |
| Idioma del documento | Inglés |
Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

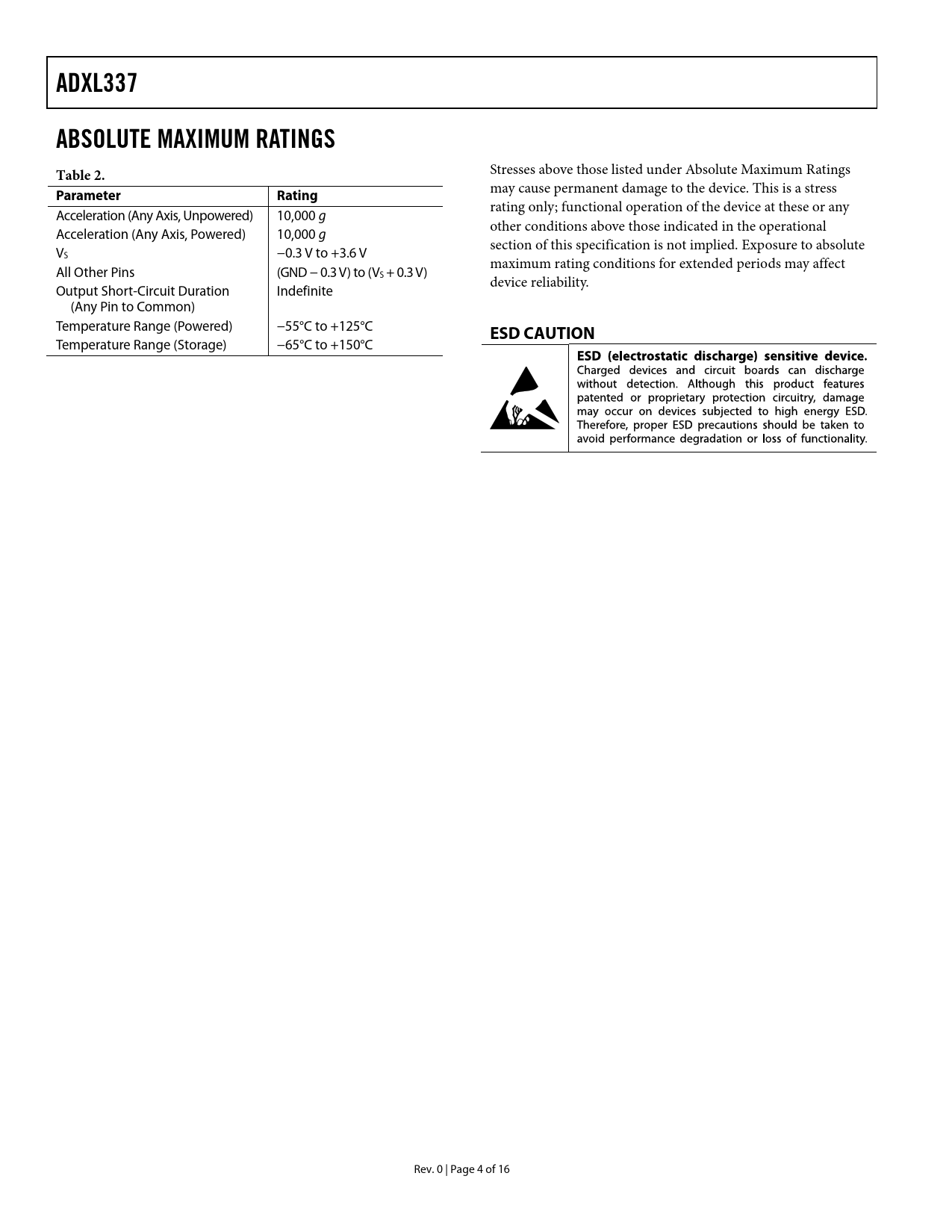

ADXL337 ABSOLUTE MAXIMUM RATINGS
Table 2.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Acceleration (Any Axis, Unpowered) 10,000 g other conditions above those indicated in the operational Acceleration (Any Axis, Powered) 10,000 g section of this specification is not implied. Exposure to absolute VS −0.3 V to +3.6 V maximum rating conditions for extended periods may affect All Other Pins (GND − 0.3 V) to (VS + 0.3 V) device reliability. Output Short-Circuit Duration Indefinite (Any Pin to Common) Temperature Range (Powered) −55°C to +125°C
