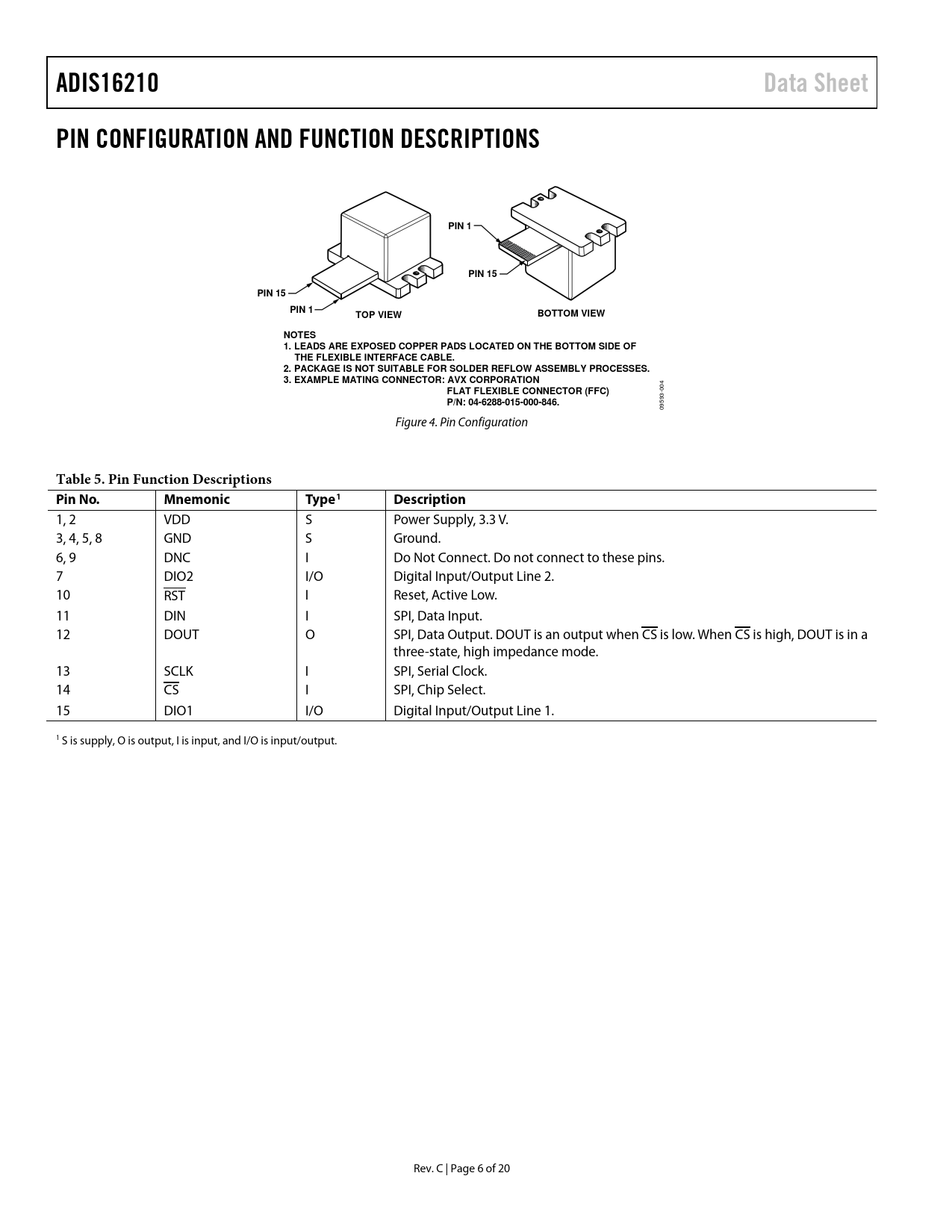

ADIS16210. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. PIN 1. PIN 15. TOP VIEW. BOTTOM VIEW
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADIS16210 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS PIN 1 PIN 15 PIN 15 PIN 1 TOP VIEW BOTTOM VIEW NOTES 1. LEADS ARE EXPOSED COPPER PADS LOCATED ON THE BOTTOM SIDE OF THE FLEXIBLE INTERFACE CABLE. 2. PACKAGE IS NOT SUITABLE FOR SOLDER REFLOW ASSEMBLY PROCESSES. 3. EXAMPLE MATING CONNECTOR: AVX CORPORATION
004
FLAT FLEXIBLE CONNECTOR (FFC) P/N: 04-6288-015-000-846.
09593- Figure 4. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1, 2 VDD S Power Supply, 3.3 V. 3, 4, 5, 8 GND S Ground. 6, 9 DNC I Do Not Connect. Do not connect to these pins. 7 DIO2 I/O Digital Input/Output Line 2. 10 RST I Reset, Active Low. 11 DIN I SPI, Data Input. 12 DOUT O SPI, Data Output. DOUT is an output when CS is low. When CS is high, DOUT is in a three-state, high impedance mode. 13 SCLK I SPI, Serial Clock. 14 CS I SPI, Chip Select. 15 DIO1 I/O Digital Input/Output Line 1. 1 S is supply, O is output, I is input, and I/O is input/output. Rev. C | Page 6 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS BASIC OPERATION READING SENSOR DATA DEVICE CONFIGURATION USER REGISTER MAP SENSOR DATA OUTPUT DATA REGISTERS Accelerometers Inclinometers Internal Temperature Power Supply SIGNAL PROCESSING, BIAS CORRECTION, AND ALIGNMENT Digital Filtering Accelerometer/Inclinometer Resolution Accelerometer Bias Correction Gravity Vector Axis Definition Measurement Mode Two-Axis Mode User Reference Alignment SYSTEM TOOLS GLOBAL COMMANDS Software Reset User Register Save to Flash Memory Flash Memory Test Self Test Power-Down INPUT/OUTPUT FUNCTIONS Data Ready Indicator Alarm Indicator General-Purpose Input/Output DEVICE IDENTIFICATION STATUS/ERROR FLAGS FLASH MEMORY MANAGEMENT ALARMS SYSTEM ALARM STATIC ALARMS DYNAMIC ALARMS ALARM REPORTING APPLICATIONS INFORMATION INTERFACE BOARD MATING CONNECTOR OUTLINE DIMENSIONS ORDERING GUIDE
