Datasheet ADXL316 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Small, Low Power, 3-Axis, ±16 g Accelerometer |
| Páginas / Página | 15 / 6 — Data Sheet. ADXL316. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 309 Kb |
| Idioma del documento | Inglés |

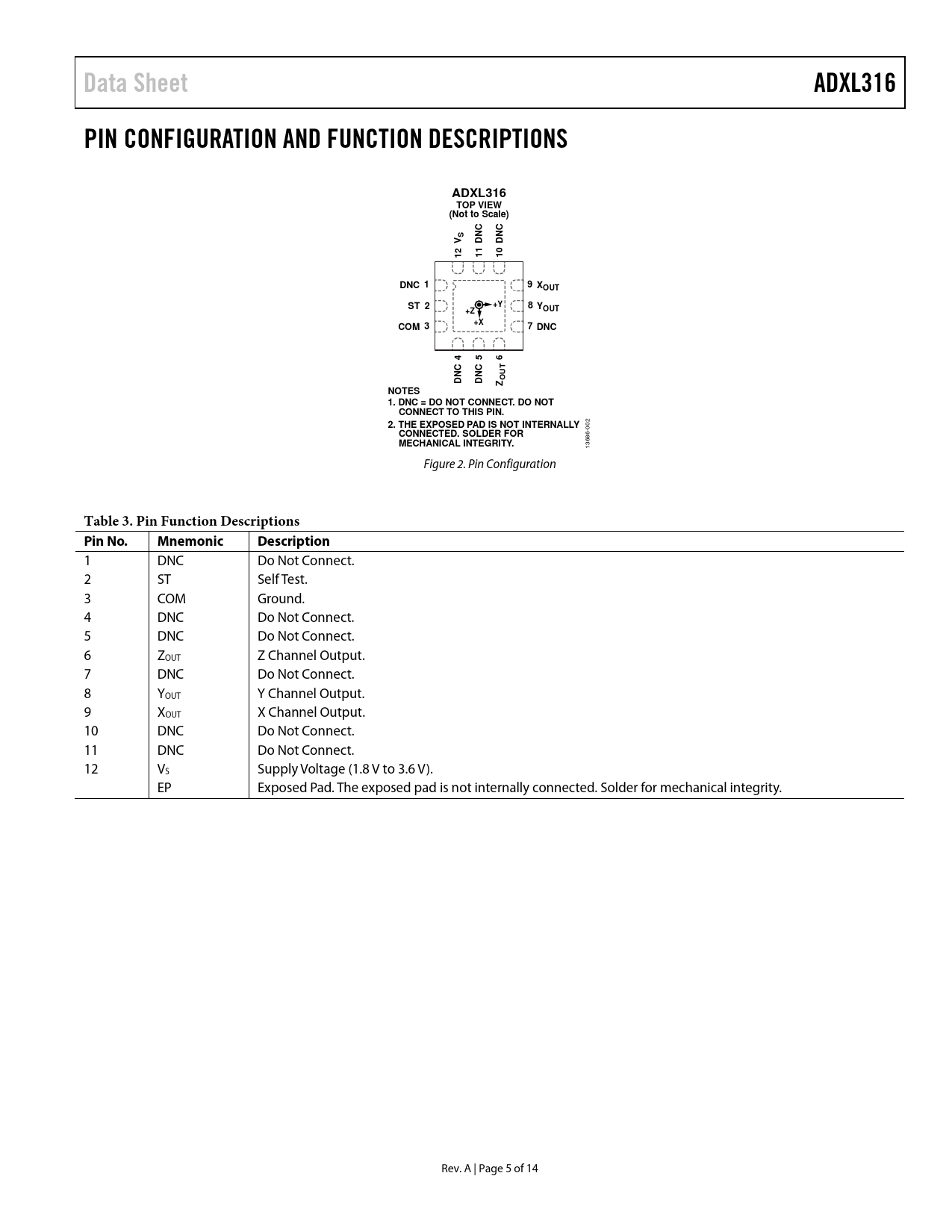

Data Sheet. ADXL316. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). DNC. DNC 1. 9 XOUT. ST 2. 8 Y. OUT. COM 3. 7 DNC
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADXL316 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADXL316 TOP VIEW (Not to Scale) SV DNC DNC 1 12 1 10 DNC 1 9 XOUT ST 2 +Y 8 Y +Z OUT COM 3 +X 7 DNC 4 5 6 UT DNC DNC OZ NOTES 1. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PIN. 2. THE EXPOSED PAD IS NOT INTERNALLY
002
CONNECTED. SOLDER FOR MECHANICAL INTEGRITY.
13686- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 DNC Do Not Connect. 2 ST Self Test. 3 COM Ground. 4 DNC Do Not Connect. 5 DNC Do Not Connect. 6 ZOUT Z Channel Output. 7 DNC Do Not Connect. 8 YOUT Y Channel Output. 9 XOUT X Channel Output. 10 DNC Do Not Connect. 11 DNC Do Not Connect. 12 VS Supply Voltage (1.8 V to 3.6 V). EP Exposed Pad. The exposed pad is not internally connected. Solder for mechanical integrity. Rev. A | Page 5 of 14 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL SENSOR PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX, CY, AND CZ SELF TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: THE NOISE/BW TRADE-OFF USE WITH OPERATING VOLTAGES OTHER THAN 3 V AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
