Datasheet ICL7106, ICL7107, ICL7107S (Intersil) - 4
| Fabricante | Intersil |
| Descripción | 31/2 Digit, LCD/LED Display, A/D Converters |
| Páginas / Página | 17 / 4 — + -. DISPLAY. C1 = 0.1µF. C2 = 0.47µF. 3 = 0.22µF. C 1. C 2. C 3. REF. … |
| Revisión | 02-11-2017 |
| Formato / tamaño de archivo | PDF / 935 Kb |
| Idioma del documento | Inglés |
+ -. DISPLAY. C1 = 0.1µF. C2 = 0.47µF. 3 = 0.22µF. C 1. C 2. C 3. REF. COM. IN HI. C4 = 100pF. TEST. IN LO. C5 = 0.02µF. ICL7106. R1 = 24kΩ. R2 = 47kΩ
Línea de modelo para esta hoja de datos
Versión de texto del documento

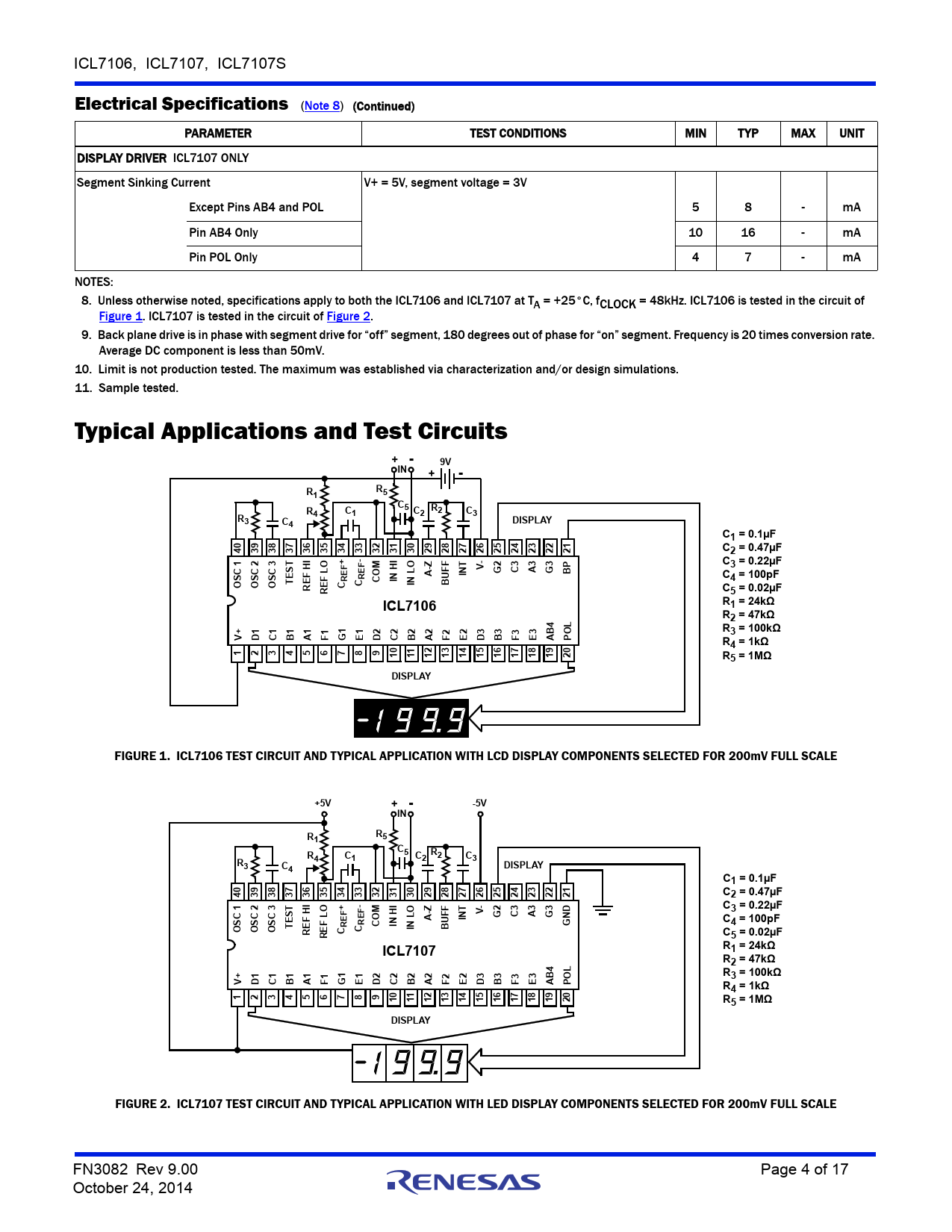

link to page 4 link to page 4 ICL7106, ICL7107, ICL7107S Electrical Specifications (Note 8) (Continued) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT DISPLAY DRIVER ICL7107 ONLY Segment Sinking Current V+ = 5V, segment voltage = 3V Except Pins AB4 and POL 5 8 - mA Pin AB4 Only 10 16 - mA Pin POL Only 4 7 - mA NOTES: 8. Unless otherwise noted, specifications apply to both the ICL7106 and ICL7107 at TA = +25°C, fCLOCK = 48kHz. ICL7106 is tested in the circuit of Figure 1. ICL7107 is tested in the circuit of Figure 2. 9. Back plane drive is in phase with segment drive for “off” segment, 180 degrees out of phase for “on” segment. Frequency is 20 times conversion rate. Average DC component is less than 50mV. 10. Limit is not production tested. The maximum was established via characterization and/or design simulations. 11. Sample tested. Typical Applications and Test Circuits
+ - 9V IN + - R R 1 5 C R C 5 R 4 1 C2 2 C3 R3 C DISPLAY 4 C1 = 0.1µF 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 C2 = 0.47µF I - C H + Z F T V- 3 = 0.22µF C 1 C 2 C 3 F F LO A- IN G2 C3 A3 G3 BP REF REF COM IN HI C4 = 100pF OS OS OS TEST IN LO BU RE C C REF C5 = 0.02µF ICL7106 R1 = 24kΩ R2 = 47kΩ R3 = 100kΩ V+ D1 C1 B1 A1 F1 G1 E1 D2 C2 B2 A2 F2 E2 D3 B3 F3 E3 AB4 POL R4 = 1kΩ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R5 = 1MΩ DISPLAY
FIGURE 1. ICL7106 TEST CIRCUIT AND TYPICAL APPLICATION WITH LCD DISPLAY COMPONENTS SELECTED FOR 200mV FULL SCALE
+5V + - -5V IN R R 1 5 C R C 5 R 4 1 C2 2 C3 R3 C DISPLAY 4 C1 = 0.1µF 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 C2 = 0.47µF 1 2 3 T + - C V- 3 = 0.22µF C C C LO A-Z FF INT G2 C3 A3 G3 C REF REF COM IN HI GND 4 = 100pF OS OS OS TES IN LO BU REF HI C REF C C5 = 0.02µF ICL7107 R1 = 24kΩ R2 = 47kΩ 4 R3 = 100kΩ V+ D1 C1 B1 A1 F1 G1 E1 D2 C2 B2 A2 F2 E2 D3 B3 F3 E3 AB POL R4 = 1kΩ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R5 = 1MΩ DISPLAY
FIGURE 2. ICL7107 TEST CIRCUIT AND TYPICAL APPLICATION WITH LED DISPLAY COMPONENTS SELECTED FOR 200mV FULL SCALE FN3082 Rev 9.00 Page 4 of 17 October 24, 2014
+ - 9V IN + - R R 1 5 C R C 5 R 4 1 C2 2 C3 R3 C DISPLAY 4 C1 = 0.1µF 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 C2 = 0.47µF I - C H + Z F T V- 3 = 0.22µF C 1 C 2 C 3 F F LO A- IN G2 C3 A3 G3 BP REF REF COM IN HI C4 = 100pF OS OS OS TEST IN LO BU RE C C REF C5 = 0.02µF ICL7106 R1 = 24kΩ R2 = 47kΩ R3 = 100kΩ V+ D1 C1 B1 A1 F1 G1 E1 D2 C2 B2 A2 F2 E2 D3 B3 F3 E3 AB4 POL R4 = 1kΩ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R5 = 1MΩ DISPLAY
FIGURE 1. ICL7106 TEST CIRCUIT AND TYPICAL APPLICATION WITH LCD DISPLAY COMPONENTS SELECTED FOR 200mV FULL SCALE
+5V + - -5V IN R R 1 5 C R C 5 R 4 1 C2 2 C3 R3 C DISPLAY 4 C1 = 0.1µF 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 C2 = 0.47µF 1 2 3 T + - C V- 3 = 0.22µF C C C LO A-Z FF INT G2 C3 A3 G3 C REF REF COM IN HI GND 4 = 100pF OS OS OS TES IN LO BU REF HI C REF C C5 = 0.02µF ICL7107 R1 = 24kΩ R2 = 47kΩ 4 R3 = 100kΩ V+ D1 C1 B1 A1 F1 G1 E1 D2 C2 B2 A2 F2 E2 D3 B3 F3 E3 AB POL R4 = 1kΩ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R5 = 1MΩ DISPLAY
FIGURE 2. ICL7107 TEST CIRCUIT AND TYPICAL APPLICATION WITH LED DISPLAY COMPONENTS SELECTED FOR 200mV FULL SCALE FN3082 Rev 9.00 Page 4 of 17 October 24, 2014
