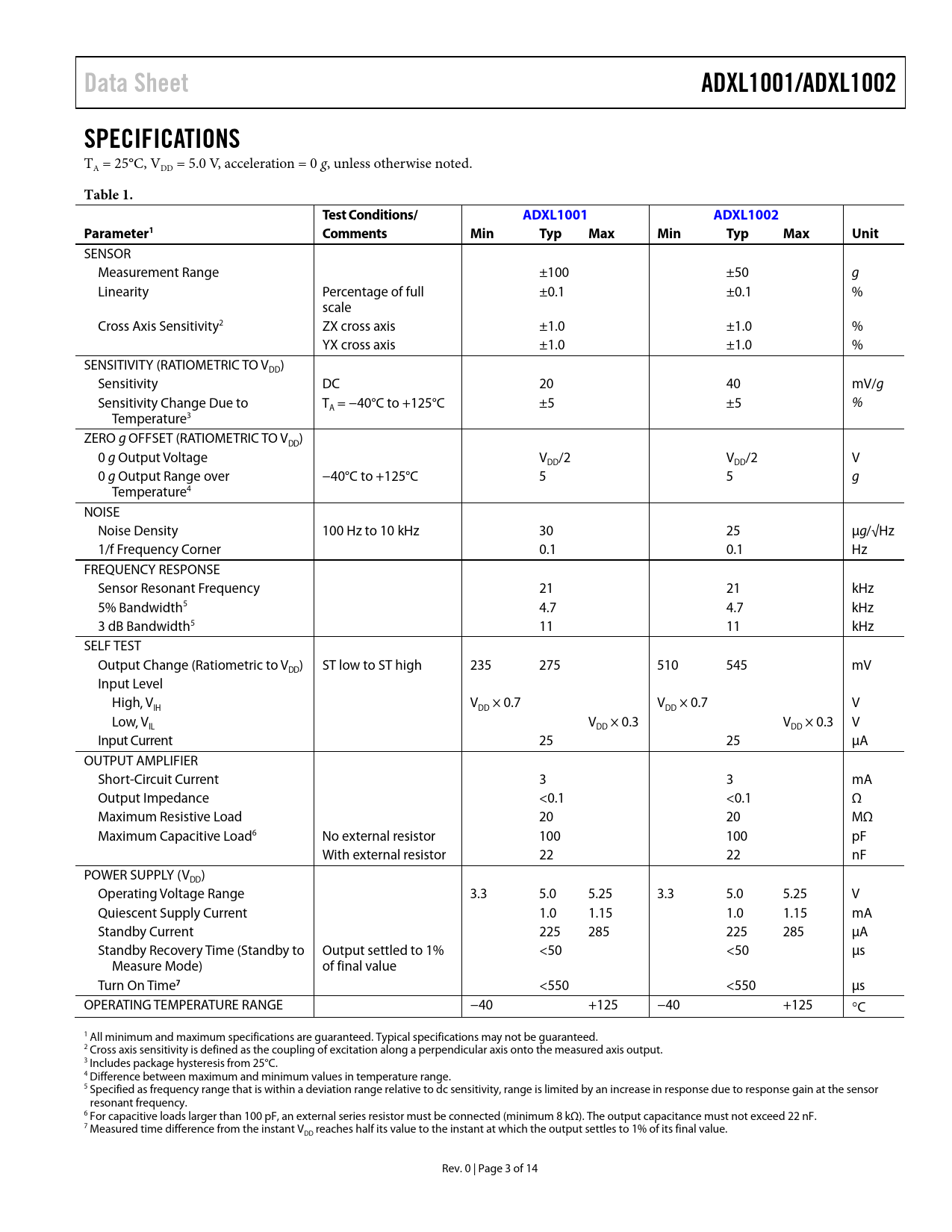

Data Sheet ADXL1001/ADXL1002 SPECIFICATIONS
TA = 25°C, VDD = 5.0 V, acceleration = 0 g, unless otherwise noted.
Table 1. Test Conditions/ ADXL1001 ADXL1002 Parameter1 Comments Min Typ Max Min Typ Max Unit
SENSOR Measurement Range ±100 ±50 g Linearity Percentage of full ±0.1 ±0.1 % scale Cross Axis Sensitivity2 ZX cross axis ±1.0 ±1.0 % YX cross axis ±1.0 ±1.0 % SENSITIVITY (RATIOMETRIC TO V ) DD Sensitivity DC 20 40 mV/g Sensitivity Change Due to T = −40°C to +125°C ±5 ±5 % A Temperature3 ZERO g OFFSET (RATIOMETRIC TO V ) DD 0 g Output Voltage V /2 V /2 V DD DD 0 g Output Range over −40°C to +125°C 5 5 g Temperature4 NOISE Noise Density 100 Hz to 10 kHz 30 25 µg/√Hz 1/f Frequency Corner 0.1 0.1 Hz FREQUENCY RESPONSE Sensor Resonant Frequency 21 21 kHz 5% Bandwidth5 4.7 4.7 kHz 3 dB Bandwidth5 11 11 kHz SELF TEST Output Change (Ratiometric to V ) ST low to ST high 235 275 510 545 mV DD Input Level High, V V × 0.7 V × 0.7 V IH DD DD Low, V V × 0.3 V × 0.3 V IL DD DD Input Current 25 25 µA OUTPUT AMPLIFIER Short-Circuit Current 3 3 mA Output Impedance <0.1 <0.1 Ω Maximum Resistive Load 20 20 MΩ Maximum Capacitive Load6 No external resistor 100 100 pF With external resistor 22 22 nF POWER SUPPLY (V ) DD Operating Voltage Range 3.3 5.0 5.25 3.3 5.0 5.25 V Quiescent Supply Current 1.0 1.15 1.0 1.15 mA Standby Current 225 285 225 285 µA Standby Recovery Time (Standby to Output settled to 1% <50 <50 µs Measure Mode) of final value Turn On Time
7
<550 <550 µs OPERATING TEMPERATURE RANGE −40 +125 −40 +125 °C 1 All minimum and maximum specifications are guaranteed. Typical specifications may not be guaranteed. 2 Cross axis sensitivity is defined as the coupling of excitation along a perpendicular axis onto the measured axis output. 3 Includes package hysteresis from 25°C. 4 Difference between maximum and minimum values in temperature range. 5 Specified as frequency range that is within a deviation range relative to dc sensitivity, range is limited by an increase in response due to response gain at the sensor resonant frequency. 6 For capacitive loads larger than 100 pF, an external series resistor must be connected (minimum 8 kΩ). The output capacitance must not exceed 22 nF. 7 Measured time difference from the instant VDD reaches half its value to the instant at which the output settles to 1% of its final value. Rev. 0 | Page 3 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE RECOMMENDED SOLDERING PROFILE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL DEVICE OPERATION OPERATING MODES Measurement Mode Standby BANDWIDTH APPLICATIONS INFORMATION APPLICATION CIRCUIT ON DEMAND SELF TEST RATIOMETRIC OUTPUT VOLTAGE INTERFACING ANALOG OUTPUT BELOW 10 kHz INTERFACING ANALOG OUTPUT BEYOND 10 kHz OVERRANGE MECHANICAL CONSIDERATIONS FOR MOUNTING LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
