MCP73831/2. 2.0. TYPICAL PERFORMANCE CURVES. Note:. 4.210. MCP73831-2. 500. 4.205. 450. ltag o. 4.200. OUT = 10 mA. A) 400. 4.195. 350. t ( n. atio
Línea de modelo para esta hoja de datos
- MCP73831-2ACI/MC MCP73831-2ATI/MC MCP73831-2DCI/MC MCP73831-3ACI/MC MCP73831-4ADI/MC MCP73831-5ACI/MC MCP73831T-2ACI/MC MCP73831T-2ACI/OT MCP73831T-2ACI/OTAAA MCP73831T-2ADI/OT MCP73831T-2ATI/MC MCP73831T-2ATI/OT MCP73831T-2DCI/MC MCP73831T-2DCI/OT MCP73831T-3ACI/MC MCP73831T-3ACI/OT MCP73831T-4ADI/MC MCP73831T-4ADI/OT MCP73831T-5ACI/MC MCP73831T-5ACI/OT
- MCP73832-2ACI/MC MCP73832-2ATI/MC MCP73832-2DCI/MC MCP73832-3ACI/MC MCP73832-4ADI/MC MCP73832-5ACI/MC MCP73832T-2ACI/MC MCP73832T-2ACI/OT MCP73832T-2ATI/MC MCP73832T-2ATI/OT MCP73832T-2DCI/MC MCP73832T-2DCI/OT MCP73832T-2DFI/OT MCP73832T-3ACI/MC MCP73832T-3ACI/OT MCP73832T-4ADI/MC MCP73832T-4ADI/OT MCP73832T-5ACI/MC MCP73832T-5ACI/OT
Versión de texto del documento

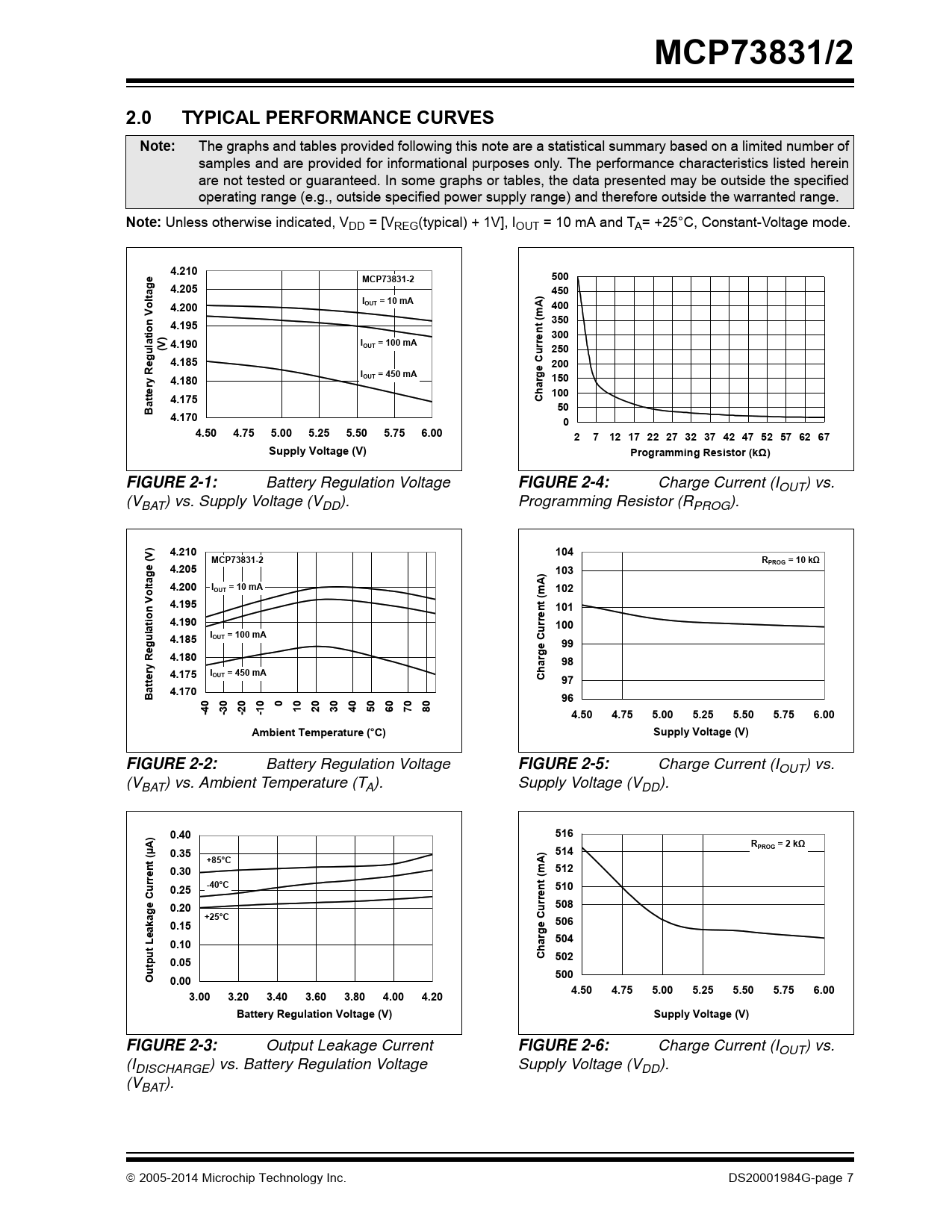

MCP73831/2 2.0 TYPICAL PERFORMANCE CURVES Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
Note:
Unless otherwise indicated, VDD = [VREG(typical) + 1V], IOUT = 10 mA and TA= +25°C, Constant-Voltage mode.
4.210 e MCP73831-2 500 4.205 450 ltag o I 4.200 OUT = 10 mA A) 400 V m n 4.195 350 t ( n atio ) e 300 4.190 (V IOUT = 100 mA rr 250 gul e 4.185 Cu 200 e I 4.180 OUT = 450 mA ry R 150 arg 100 4.175 atte Ch B 50 4.170 0 4.50 4.75 5.00 5.25 5.50 5.75 6.00 2 7 12 17 22 27 32 37 42 47 52 57 62 67 Supply Voltage (V) Programming Resistor (kΩ) FIGURE 2-1:
Battery Regulation Voltage
FIGURE 2-4:
Charge Current (IOUT) vs. (VBAT) vs. Supply Voltage (VDD). Programming Resistor (RPROG).
) 4.210 V 104 ( MCP73831-2 RPROG = 10 kΩ 4.205 103 ) ltage 4.200 A o IOUT = 10 mA 102 4.195 t (m n V n 101 io e 4.190 at rr 100 4.185 IOUT = 100 mA e Cu 99 egul R 4.180 rg y a 98 4.175 IOUT = 450 mA Ch tter 97 a 4.170 B 0 96 -40 -30 -20 -10 10 20 30 40 50 60 70 80 4.50 4.75 5.00 5.25 5.50 5.75 6.00 Ambient Temperature (°C) Supply Voltage (V) FIGURE 2-2:
Battery Regulation Voltage
FIGURE 2-5:
Charge Current (IOUT) vs. (VBAT) vs. Ambient Temperature (TA). Supply Voltage (VDD).
) 0.40 516 RPROG = 2 kΩ 0.35 514 (µA +85°C A) nt 0.30 m 512 rre t ( u 0.25 -40°C n 510 C rre 0.20 508 age +25°C 506 ak 0.15 e Cu 0.10 arg 504 ut Le Ch 502 tp 0.05 u O 500 0.00 4.50 4.75 5.00 5.25 5.50 5.75 6.00 3.00 3.20 3.40 3.60 3.80 4.00 4.20 Battery Regulation Voltage (V) Supply Voltage (V) FIGURE 2-3:
Output Leakage Current
FIGURE 2-6:
Charge Current (IOUT) vs. (IDISCHARGE) vs. Battery Regulation Voltage Supply Voltage (VDD). (VBAT). 2005-2014 Microchip Technology Inc. DS20001984G-page 7 Document Outline MCP73831/2 Functional Block Diagram 1.0 Electrical Characteristics 2.0 Typical Performance Curves FIGURE 2-1: Battery Regulation Voltage (VBAT) vs. Supply Voltage (VDD). FIGURE 2-2: Battery Regulation Voltage (VBAT) vs. Ambient Temperature (TA). FIGURE 2-3: Output Leakage Current (IDISCHARGE) vs. Battery Regulation Voltage (VBAT). FIGURE 2-4: Charge Current (IOUT) vs. Programming Resistor (RPROG). FIGURE 2-5: Charge Current (IOUT) vs. Supply Voltage (VDD). FIGURE 2-6: Charge Current (IOUT) vs. Supply Voltage (VDD). FIGURE 2-7: Charge Current (IOUT) vs. Ambient Temperature (TA). FIGURE 2-8: Charge Current (IOUT) vs. Ambient Temperature (TA). FIGURE 2-9: Charge Current (IOUT) vs. Junction Temperature (TJ). FIGURE 2-10: Charge Current (IOUT) vs. Junction Temperature (TJ). FIGURE 2-11: Power Supply Ripple Rejection (PSRR). FIGURE 2-12: Power Supply Ripple Rejection (PSRR). FIGURE 2-13: Line Transient Response. FIGURE 2-14: Line Transient Response. FIGURE 2-15: Load Transient Response. FIGURE 2-16: Load Transient Response. FIGURE 2-17: Complete Charge Cycle (180 mAh Li-Ion Battery). FIGURE 2-18: Complete Charge Cycle (1000 mAh Li-Ion Battery). 3.0 Pin Description TABLE 3-1: Pin Function TableS 3.1 Battery Management Input Supply (VDD) 3.2 Battery Charge Control Output (VBAT) 3.3 Charge Status Output (STAT) 3.4 Battery Management 0V Reference (VSS) 3.5 Current Regulation Set (PROG) 3.6 Exposed Thermal Pad (EP) 4.0 Device Overview FIGURE 4-1: Flowchart. 4.1 Undervoltage Lockout (UVLO) 4.2 Battery Detection 4.3 Charge Qualification 4.4 Preconditioning 4.5 Fast Charge Constant-Current Mode 4.6 Constant-Voltage Mode 4.7 Charge Termination 4.8 Automatic Recharge 4.9 Thermal Regulation FIGURE 4-2: Thermal Regulation. 4.10 Thermal Shutdown 5.0 Detailed Description 5.1 Analog Circuitry 5.2 Digital Circuitry TABLE 5-1: Status Output 6.0 Applications FIGURE 6-1: Typical Application Circuit. FIGURE 6-2: Typical Charge Profile (180 mAh Battery). FIGURE 6-3: Typical Charge Profile in Thermal Regulation (1000 mAh Battery). 6.1 Application Circuit Design 6.2 PCB Layout Issues FIGURE 6-4: Typical Layout (Top). FIGURE 6-5: Typical Layout (Bottom). 7.0 Packaging Information 7.1 Package Marking Information Appendix A: Revision History Product ID System Trademarks Worldwide Sales
