TYPICAL PERFOR A CE CHARACTERISTICS (SOT-23 Package). S11 Forward Reflection
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5532

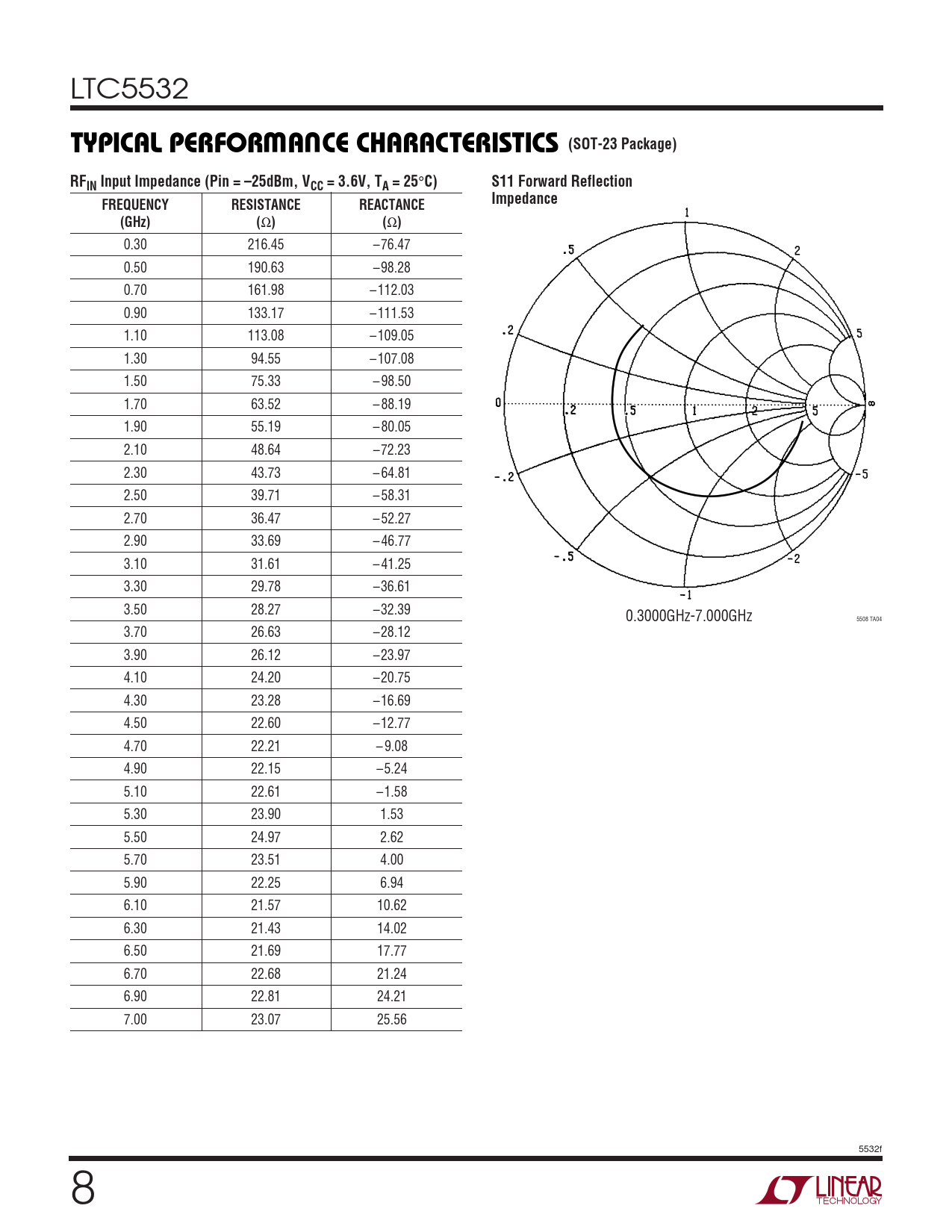

W U TYPICAL PERFOR A CE CHARACTERISTICS (SOT-23 Package) RF S11 Forward Reflection IN Input Impedance (Pin = –25dBm, VCC = 3.6V, TA = 25
°
C) Impedance FREQUENCY RESISTANCE REACTANCE (GHz) (
Ω
) (
Ω
)
0.30 216.45 –76.47 0.50 190.63 –98.28 0.70 161.98 –112.03 0.90 133.17 –111.53 1.10 113.08 –109.05 1.30 94.55 –107.08 1.50 75.33 – 98.50 1.70 63.52 – 88.19 1.90 55.19 – 80.05 2.10 48.64 –72.23 2.30 43.73 – 64.81 2.50 39.71 – 58.31 2.70 36.47 – 52.27 2.90 33.69 – 46.77 3.10 31.61 – 41.25 3.30 29.78 –36.61 3.50 28.27 –32.39 0.3000GHz-7.000GHz 5508 TA04 3.70 26.63 –28.12 3.90 26.12 –23.97 4.10 24.20 –20.75 4.30 23.28 –16.69 4.50 22.60 –12.77 4.70 22.21 – 9.08 4.90 22.15 –5.24 5.10 22.61 –1.58 5.30 23.90 1.53 5.50 24.97 2.62 5.70 23.51 4.00 5.90 22.25 6.94 6.10 21.57 10.62 6.30 21.43 14.02 6.50 21.69 17.77 6.70 22.68 21.24 6.90 22.81 24.21 7.00 23.07 25.56 5532f 8
W U TYPICAL PERFOR A CE CHARACTERISTICS (SOT-23 Package) RF S11 Forward Reflection IN Input Impedance (Pin = –25dBm, VCC = 3.6V, TA = 25
°
C) Impedance FREQUENCY RESISTANCE REACTANCE (GHz) (
Ω
) (
Ω
)
0.30 216.45 –76.47 0.50 190.63 –98.28 0.70 161.98 –112.03 0.90 133.17 –111.53 1.10 113.08 –109.05 1.30 94.55 –107.08 1.50 75.33 – 98.50 1.70 63.52 – 88.19 1.90 55.19 – 80.05 2.10 48.64 –72.23 2.30 43.73 – 64.81 2.50 39.71 – 58.31 2.70 36.47 – 52.27 2.90 33.69 – 46.77 3.10 31.61 – 41.25 3.30 29.78 –36.61 3.50 28.27 –32.39 0.3000GHz-7.000GHz 5508 TA04 3.70 26.63 –28.12 3.90 26.12 –23.97 4.10 24.20 –20.75 4.30 23.28 –16.69 4.50 22.60 –12.77 4.70 22.21 – 9.08 4.90 22.15 –5.24 5.10 22.61 –1.58 5.30 23.90 1.53 5.50 24.97 2.62 5.70 23.51 4.00 5.90 22.25 6.94 6.10 21.57 10.62 6.30 21.43 14.02 6.50 21.69 17.77 6.70 22.68 21.24 6.90 22.81 24.21 7.00 23.07 25.56 5532f 8
