Datasheet LTC5509 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 300MHz to 3GHz RF Power Detector in SC70 Package |
| Páginas / Página | 8 / 4 — TYPICAL PERFOR A CE CHARACTERISTICS. RFIN Input Impedance (Pin = 0dBm, … |
| Formato / tamaño de archivo | PDF / 188 Kb |
| Idioma del documento | Inglés |
TYPICAL PERFOR A CE CHARACTERISTICS. RFIN Input Impedance (Pin = 0dBm, VCC = 3.6V, TA = 25
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5509

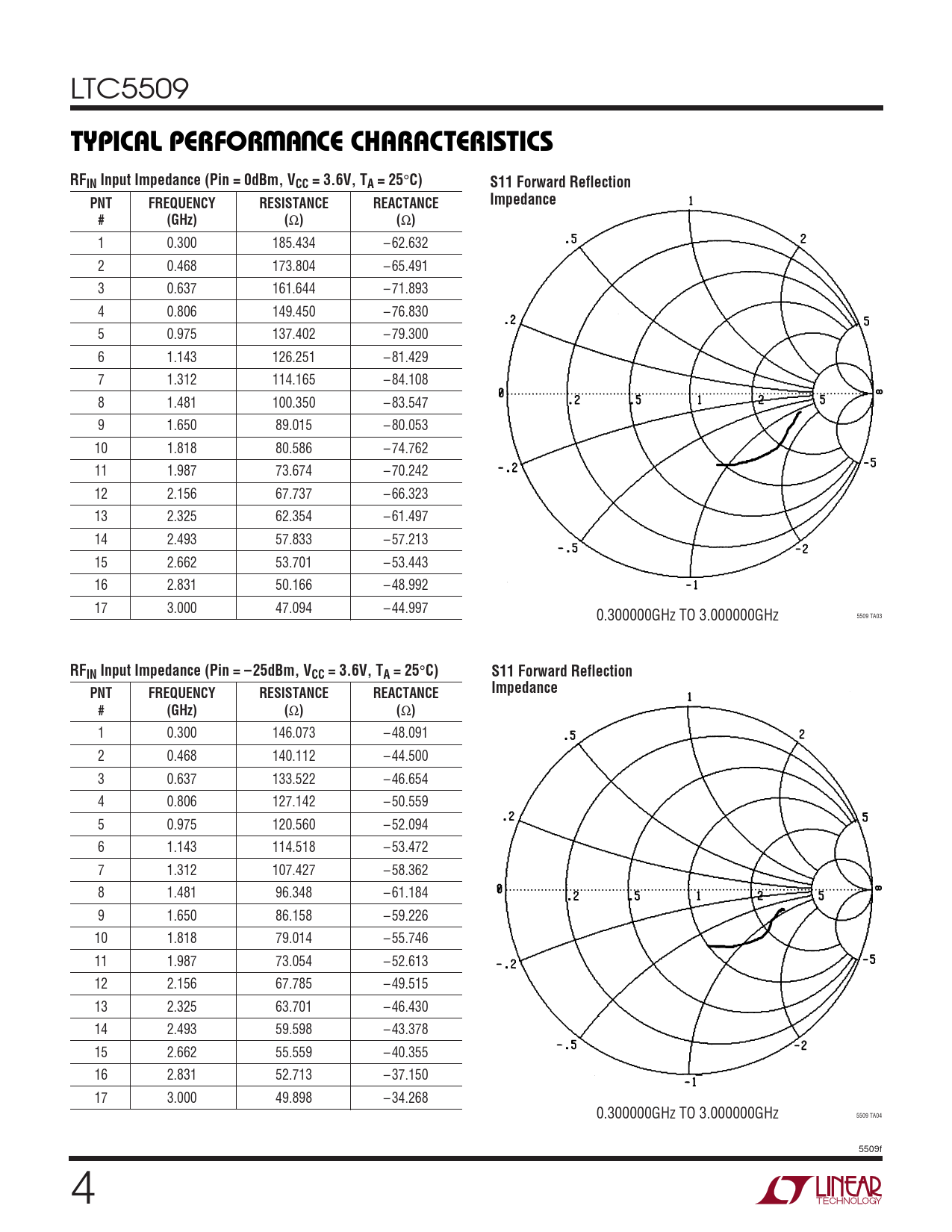

W U TYPICAL PERFOR A CE CHARACTERISTICS RFIN Input Impedance (Pin = 0dBm, VCC = 3.6V, TA = 25
°
C) S11 Forward Reflection Impedance PNT FREQUENCY RESISTANCE REACTANCE # (GHz) (
Ω
) (
Ω
)
1 0.300 185.434 – 62.632 2 0.468 173.804 – 65.491 3 0.637 161.644 – 71.893 4 0.806 149.450 – 76.830 5 0.975 137.402 – 79.300 6 1.143 126.251 – 81.429 7 1.312 114.165 – 84.108 8 1.481 100.350 – 83.547 9 1.650 89.015 – 80.053 10 1.818 80.586 – 74.762 11 1.987 73.674 – 70.242 12 2.156 67.737 – 66.323 13 2.325 62.354 – 61.497 14 2.493 57.833 – 57.213 15 2.662 53.701 – 53.443 16 2.831 50.166 – 48.992 17 3.000 47.094 – 44.997 0.300000GHz TO 3.000000GHz 5509 TA03
RFIN Input Impedance (Pin = –25dBm, VCC = 3.6V, TA = 25
°
C) S11 Forward Reflection Impedance PNT FREQUENCY RESISTANCE REACTANCE # (GHz) (
Ω
) (
Ω
)
1 0.300 146.073 – 48.091 2 0.468 140.112 – 44.500 3 0.637 133.522 – 46.654 4 0.806 127.142 – 50.559 5 0.975 120.560 – 52.094 6 1.143 114.518 – 53.472 7 1.312 107.427 – 58.362 8 1.481 96.348 – 61.184 9 1.650 86.158 – 59.226 10 1.818 79.014 – 55.746 11 1.987 73.054 – 52.613 12 2.156 67.785 – 49.515 13 2.325 63.701 – 46.430 14 2.493 59.598 – 43.378 15 2.662 55.559 – 40.355 16 2.831 52.713 – 37.150 17 3.000 49.898 – 34.268 0.300000GHz TO 3.000000GHz 5509 TA04 5509f 4
W U TYPICAL PERFOR A CE CHARACTERISTICS RFIN Input Impedance (Pin = 0dBm, VCC = 3.6V, TA = 25
°
C) S11 Forward Reflection Impedance PNT FREQUENCY RESISTANCE REACTANCE # (GHz) (
Ω
) (
Ω
)
1 0.300 185.434 – 62.632 2 0.468 173.804 – 65.491 3 0.637 161.644 – 71.893 4 0.806 149.450 – 76.830 5 0.975 137.402 – 79.300 6 1.143 126.251 – 81.429 7 1.312 114.165 – 84.108 8 1.481 100.350 – 83.547 9 1.650 89.015 – 80.053 10 1.818 80.586 – 74.762 11 1.987 73.674 – 70.242 12 2.156 67.737 – 66.323 13 2.325 62.354 – 61.497 14 2.493 57.833 – 57.213 15 2.662 53.701 – 53.443 16 2.831 50.166 – 48.992 17 3.000 47.094 – 44.997 0.300000GHz TO 3.000000GHz 5509 TA03
RFIN Input Impedance (Pin = –25dBm, VCC = 3.6V, TA = 25
°
C) S11 Forward Reflection Impedance PNT FREQUENCY RESISTANCE REACTANCE # (GHz) (
Ω
) (
Ω
)
1 0.300 146.073 – 48.091 2 0.468 140.112 – 44.500 3 0.637 133.522 – 46.654 4 0.806 127.142 – 50.559 5 0.975 120.560 – 52.094 6 1.143 114.518 – 53.472 7 1.312 107.427 – 58.362 8 1.481 96.348 – 61.184 9 1.650 86.158 – 59.226 10 1.818 79.014 – 55.746 11 1.987 73.054 – 52.613 12 2.156 67.785 – 49.515 13 2.325 63.701 – 46.430 14 2.493 59.598 – 43.378 15 2.662 55.559 – 40.355 16 2.831 52.713 – 37.150 17 3.000 49.898 – 34.268 0.300000GHz TO 3.000000GHz 5509 TA04 5509f 4
