Datasheet LTC5507 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 100kHz to 1GHz RF Power Detector |
| Páginas / Página | 8 / 2 — ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). ELECTRICAL … |
| Formato / tamaño de archivo | PDF / 134 Kb |
| Idioma del documento | Inglés |

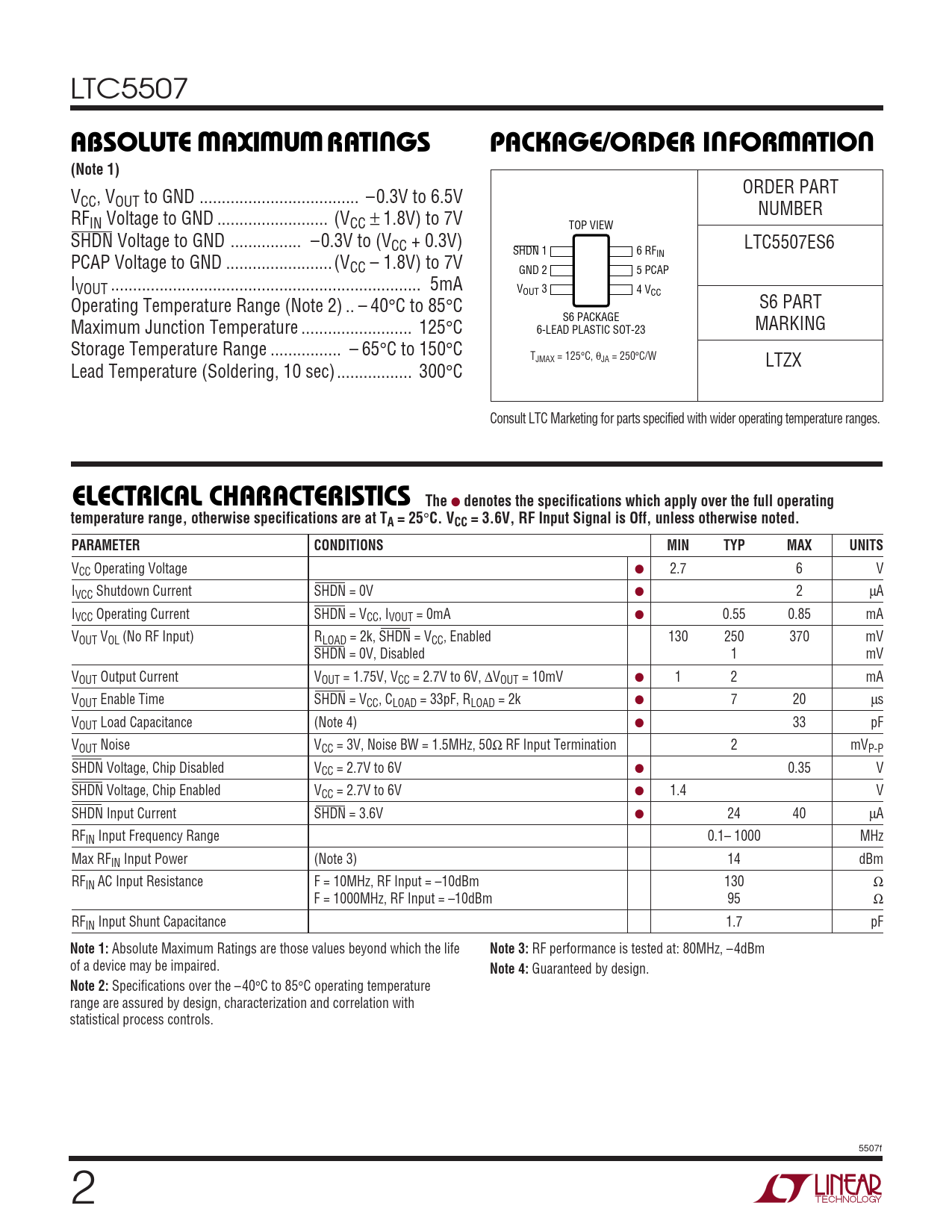

ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). ELECTRICAL CHARACTERISTICS The
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5507
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
ORDER PART VCC, VOUT to GND .. –0.3V to 6.5V NUMBER RFIN Voltage to GND ... (VCC ± 1.8V) to 7V TOP VIEW SHDN Voltage to GND .. –0.3V to (VCC + 0.3V) LTC5507ES6 SHDN 1 6 RF PCAP Voltage to GND .. (V IN CC – 1.8V) to 7V GND 2 5 PCAP IVOUT .. 5mA V 4 V OUT 3 CC Operating Temperature Range (Note 2) .. – 40°C to 85°C S6 PART S6 PACKAGE Maximum Junction Temperature ... 125°C 6-LEAD PLASTIC SOT-23 MARKING Storage Temperature Range .. – 65°C to 150°C TJMAX = 125°C, θJA = 250°C/W LTZX Lead Temperature (Soldering, 10 sec)... 300°C Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.6V, RF Input Signal is Off, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Operating Voltage ● 2.7 6 V IVCC Shutdown Current SHDN = 0V ● 2 µA IVCC Operating Current SHDN = VCC, IVOUT = 0mA ● 0.55 0.85 mA VOUT VOL (No RF Input) RLOAD = 2k, SHDN = VCC, Enabled 130 250 370 mV SHDN = 0V, Disabled 1 mV VOUT Output Current VOUT = 1.75V, VCC = 2.7V to 6V, ∆VOUT = 10mV ● 1 2 mA VOUT Enable Time SHDN = VCC, CLOAD = 33pF, RLOAD = 2k ● 7 20 µs VOUT Load Capacitance (Note 4) ● 33 pF VOUT Noise VCC = 3V, Noise BW = 1.5MHz, 50Ω RF Input Termination 2 mVP-P SHDN Voltage, Chip Disabled VCC = 2.7V to 6V ● 0.35 V SHDN Voltage, Chip Enabled VCC = 2.7V to 6V ● 1.4 V SHDN Input Current SHDN = 3.6V ● 24 40 µA RFIN Input Frequency Range 0.1– 1000 MHz Max RFIN Input Power (Note 3) 14 dBm RFIN AC Input Resistance F = 10MHz, RF Input = –10dBm 130 Ω F = 1000MHz, RF Input = –10dBm 95 Ω RFIN Input Shunt Capacitance 1.7 pF
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 3:
RF performance is tested at: 80MHz, –4dBm of a device may be impaired.
Note 4:
Guaranteed by design.
Note 2:
Specifications over the –40°C to 85°C operating temperature range are assured by design, characterization and correlation with statistical process controls. 5507f 2
