Datasheet LT5581 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 6GHz RMS Power Detector with 40dB Dynamic Range |
| Páginas / Página | 18 / 9 — PIN FUNCTIONS. VCC (Pin 1):. CSQ (Pin 8):. EN (Pin 2):. Exposed Pad (Pin … |
| Formato / tamaño de archivo | PDF / 640 Kb |
| Idioma del documento | Inglés |
PIN FUNCTIONS. VCC (Pin 1):. CSQ (Pin 8):. EN (Pin 2):. Exposed Pad (Pin 9):. OUT (Pin 3):. GND (Pins 4, 5, 6):. RFIN (Pin 7):
Línea de modelo para esta hoja de datos
Versión de texto del documento

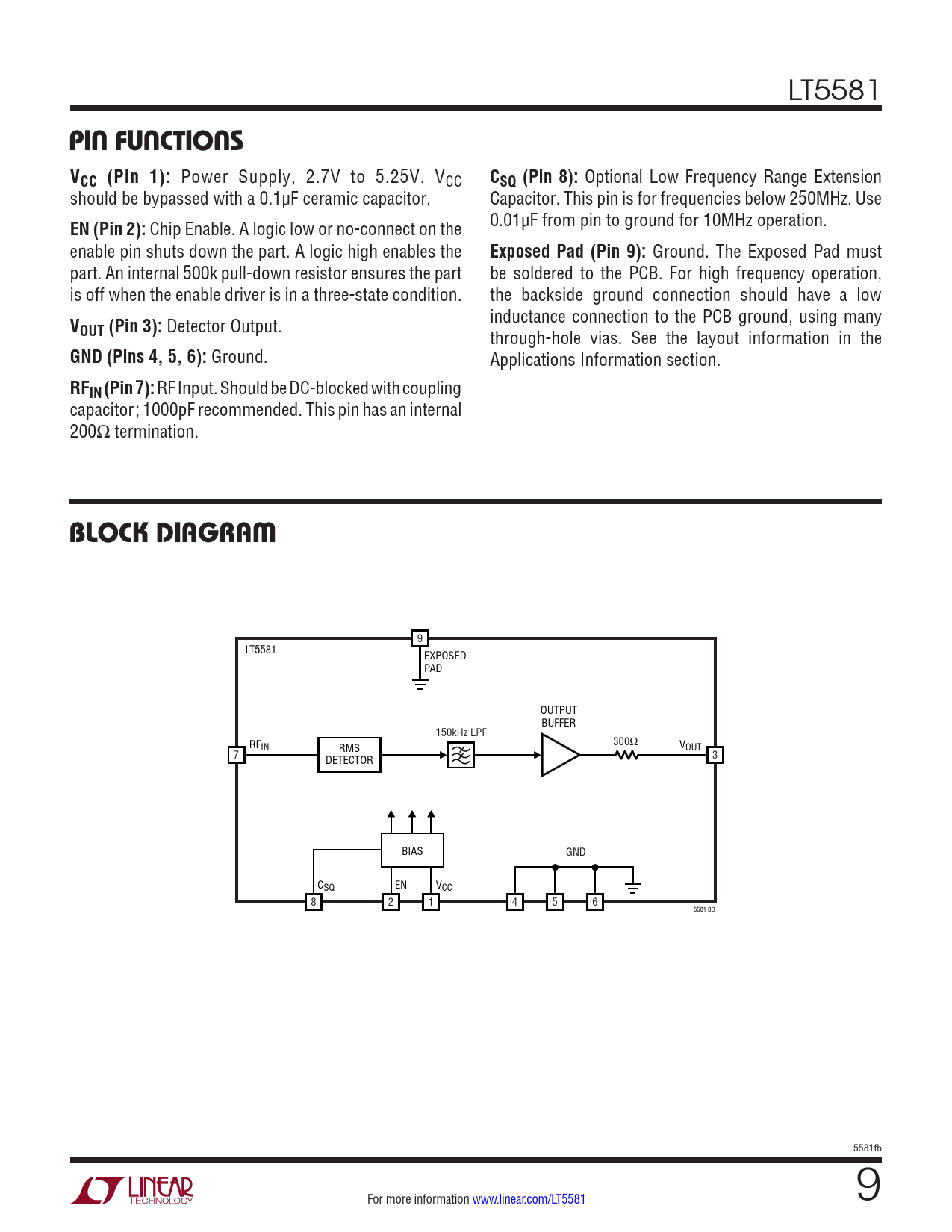

LT5581
PIN FUNCTIONS VCC (Pin 1):
Power Supply, 2.7V to 5.25V. VCC
CSQ (Pin 8):
Optional Low Frequency Range Extension should be bypassed with a 0.1µF ceramic capacitor. Capacitor. This pin is for frequencies below 250MHz. Use
EN (Pin 2):
Chip Enable. A logic low or no-connect on the 0.01µF from pin to ground for 10MHz operation. enable pin shuts down the part. A logic high enables the
Exposed Pad (Pin 9):
Ground. The Exposed Pad must part. An internal 500k pull-down resistor ensures the part be soldered to the PCB. For high frequency operation, is off when the enable driver is in a three-state condition. the backside ground connection should have a low
V
inductance connection to the PCB ground, using many
OUT (Pin 3):
Detector Output. through-hole vias. See the layout information in the
GND (Pins 4, 5, 6):
Ground. Applications Information section.
RFIN (Pin 7):
RF Input. Should be DC-blocked with coupling capacitor; 1000pF recommended. This pin has an internal 200Ω termination.
BLOCK DIAGRAM
9 LT5581 EXPOSED PAD OUTPUT BUFFER 150kHz LPF RF 300Ω IN V RMS OUT 7 3 DETECTOR BIAS GND CSQ EN VCC 8 2 1 4 5 6 5581 BD 5581fb For more information www.linear.com/LT5581 9 Document Outline Description Typical Application Absolute Maximum Ratings Pin Configuration Typical Performance Characteristics Pin Functions Package Description
