TEST CIRCUITS. REF DES. VALUE. SIZE. PART NUMBER. Figure 3. Test Schematic for 40MHz to 860MHz Applications
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT5570
TEST CIRCUITS
5V C1 C2 C3 22nF 1nF 1MF T2 1 10 RF C7 ETC4-1-2 VCC FLTR INPUT L1 1nF 0 4 1:4 3 2 9 IN+ EN ENABLE C8 J1 2 3 8 C9 R1 OPT DEC LT5570 DNC NC 0 100k 5 1 4 7 IN– DNC NC 5 6 C4 GND OUT 1nF EXPOSED PAD OUT C6 5570 F03 (OPT)
REF DES VALUE SIZE PART NUMBER REF DES VALUE SIZE PART NUMBER
C2, C4, C7 1nF 0402 AVX 0402ZCI02KAT R1 100k 0402 CRCW0402100KFKED C1 22nF 0402 AVX 0402YC223KAT T2 1:4 ETC4-1-2 C3 1μF 0603 Taiyo Yuden LMK107BJ105MA C8 OPT 0402 C9, L1 0 0402 CJ05-000M

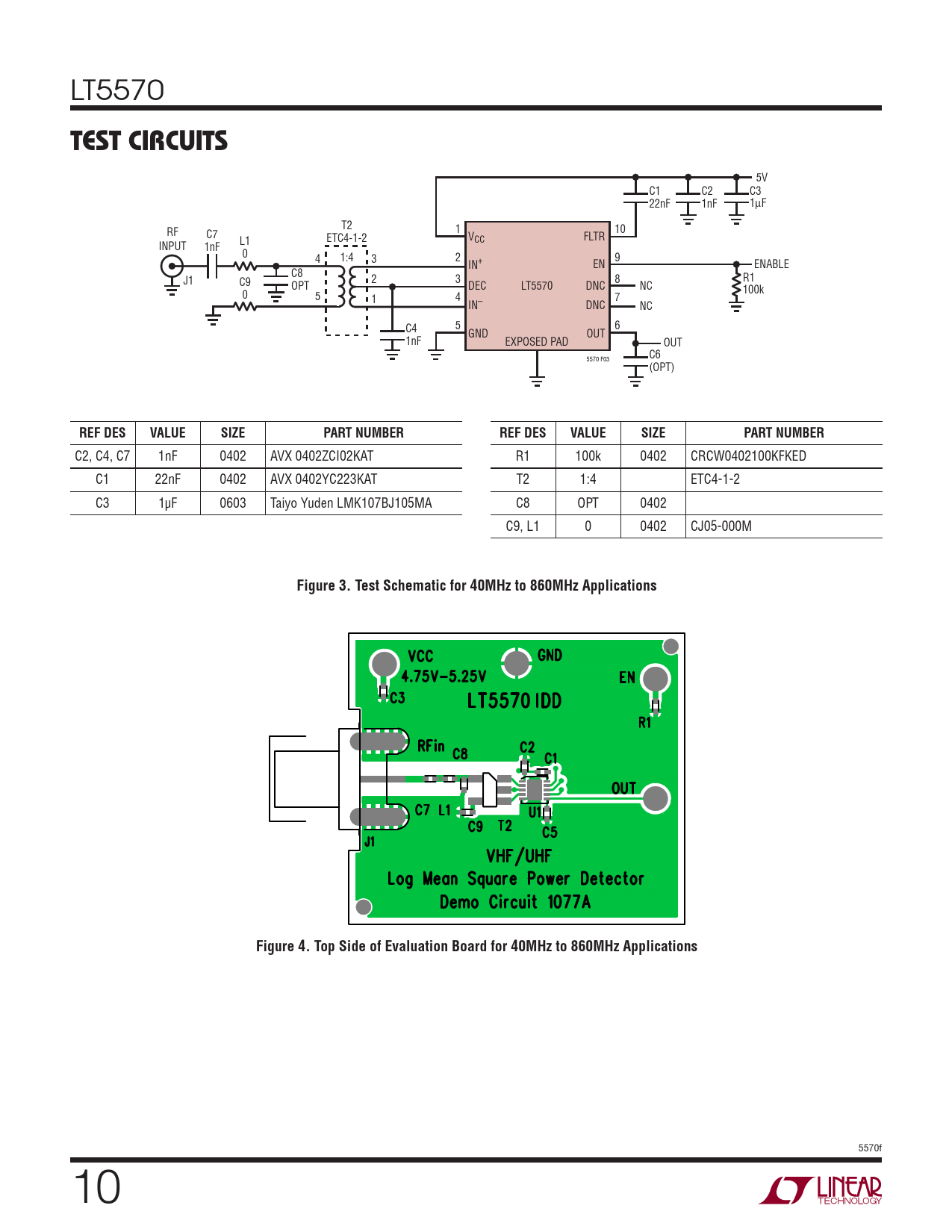

Figure 3. Test Schematic for 40MHz to 860MHz Applications Figure 4. Top Side of Evaluation Board for 40MHz to 860MHz Applications
