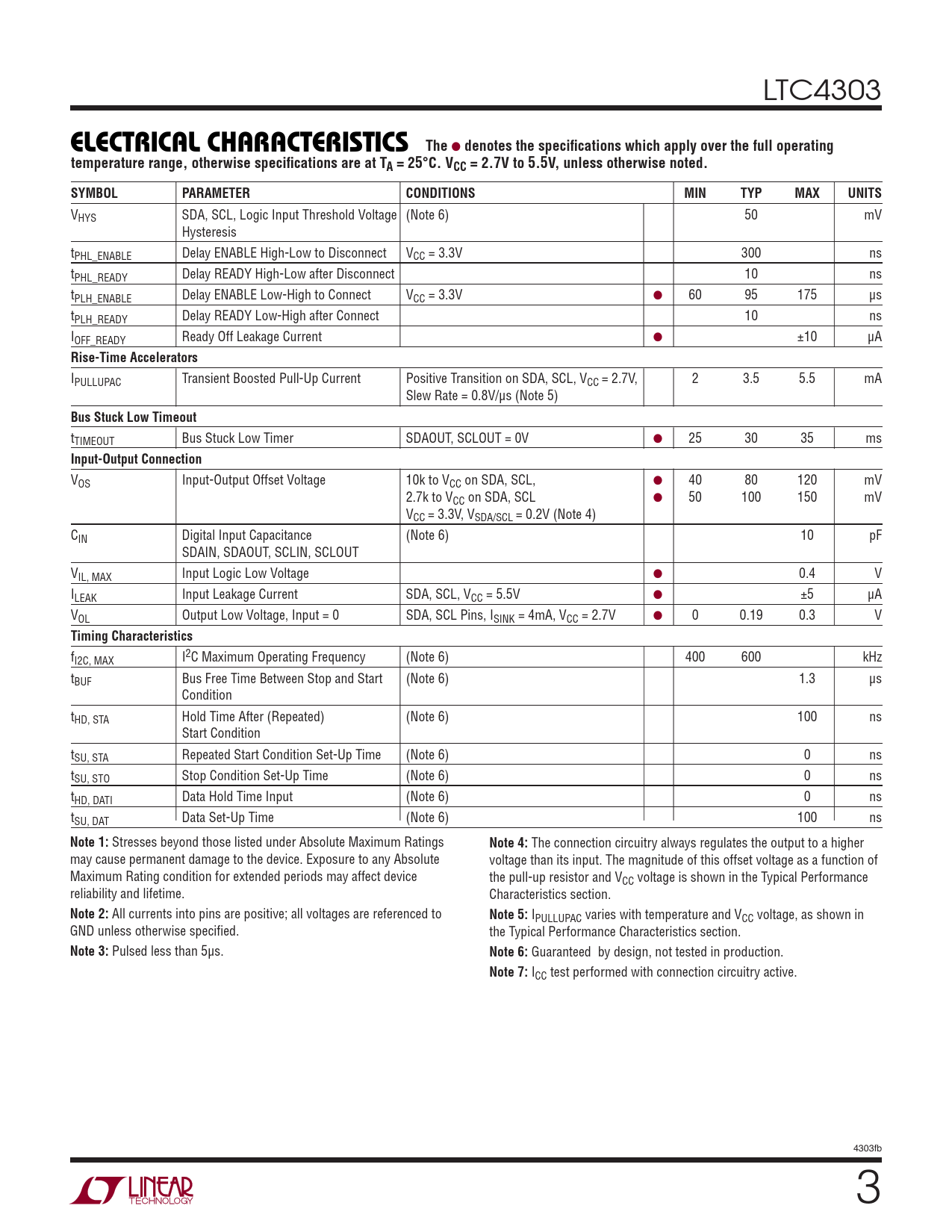

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC4303
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCC = 2.7V to 5.5V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VHYS SDA, SCL, Logic Input Threshold Voltage (Note 6) 50 mV Hysteresis tPHL_ENABLE Delay ENABLE High-Low to Disconnect VCC = 3.3V 300 ns tPHL_READY Delay READY High-Low after Disconnect 10 ns tPLH_ENABLE Delay ENABLE Low-High to Connect VCC = 3.3V ● 60 95 175 µs tPLH_READY Delay READY Low-High after Connect 10 ns IOFF_READY Ready Off Leakage Current ● ±10 µA
Rise-Time Accelerators
IPULLUPAC Transient Boosted Pull-Up Current Positive Transition on SDA, SCL, VCC = 2.7V, 2 3.5 5.5 mA Slew Rate = 0.8V/µs (Note 5)
Bus Stuck Low Timeout
tTIMEOUT Bus Stuck Low Timer SDAOUT, SCLOUT = 0V ● 25 30 35 ms
Input-Output Connection
VOS Input-Output Offset Voltage 10k to VCC on SDA, SCL, ● 40 80 120 mV 2.7k to VCC on SDA, SCL ● 50 100 150 mV VCC = 3.3V, VSDA/SCL = 0.2V (Note 4) CIN Digital Input Capacitance (Note 6) 10 pF SDAIN, SDAOUT, SCLIN, SCLOUT VIL, MAX Input Logic Low Voltage ● 0.4 V ILEAK Input Leakage Current SDA, SCL, VCC = 5.5V ● ±5 µA VOL Output Low Voltage, Input = 0 SDA, SCL Pins, ISINK = 4mA, VCC = 2.7V ● 0 0.19 0.3 V
Timing Characteristics
fI2C, MAX I2C Maximum Operating Frequency (Note 6) 400 600 kHz tBUF Bus Free Time Between Stop and Start (Note 6) 1.3 µs Condition tHD, STA Hold Time After (Repeated) (Note 6) 100 ns Start Condition tSU, STA Repeated Start Condition Set-Up Time (Note 6) 0 ns tSU, STO Stop Condition Set-Up Time (Note 6) 0 ns tHD, DATI Data Hold Time Input (Note 6) 0 ns tSU, DAT Data Set-Up Time (Note 6) 100 ns
