applicaTions inForMaTion Resistor Pull-Up Value Selection. Live Insertion and Capacitance Buffering Application
Línea de modelo para esta hoja de datos
- LTC4300A-3CDD#PBF LTC4300A-3CDD#PBF LTC4300A-3CDD#TRPBF LTC4300A-3CDD#TRPBF LTC4300A-3CMS8#PBF LTC4300A-3CMS8#PBF LTC4300A-3CMS8#TRPBF LTC4300A-3CMS8#TRPBF LTC4300A-3IDD#PBF LTC4300A-3IDD#PBF LTC4300A-3IDD#TRPBF LTC4300A-3IDD#TRPBF LTC4300A-3IMS8#PBF LTC4300A-3IMS8#PBF LTC4300A-3IMS8#TRPBF LTC4300A-3IMS8#TRPBF
Versión de texto del documento
LTC4300A-3
applicaTions inForMaTion Resistor Pull-Up Value Selection Live Insertion and Capacitance Buffering Application
The system pull-up resistors must be strong enough to Figures 3 and 4 illustrate the usage of the LTC4300A-3 provide a positive slew rate of 1.25V/µs on the SDA and in applications that take advantage of both its Hot Swap SCL pins, in order to activate the boost pull-up currents controlling and capacitance buffering features. In all of during rising edges. Choose maximum resistor value R these applications, note that if the I/O cards were plugged using the formula: directly into the backplane, all of the backplane and card R ≤ (V capacitances would add directly together, making rise- CC(MIN) – 0.6)(800,000)/C and fal time requirements difficult to meet. Placing a where R is the pull-up resistor value in ohms, VCC(MIN) LTC4300A-3 on the edge of each card, however, isolates is the minimum VCC voltage and C is the equivalent bus the card capacitance from the backplane. For a given I/O capacitance in picofarads (pF). card, the LTC4300A-3 drives the capacitance of every- In addition, regardless of the bus capacitance, always thing on the card and the backplane must drive only the choose R ≤ 16k for V capacitance of the LTC4300A-3, which is less than 10pF. CC = 5.5V maximum, R ≤ 24k for VCC = 3.6V maximum. The start-up circuitry requires logic high voltages on SDAOUT and SCLOUT to connect the backplane to the card, and these pull-up values are needed to overcome the precharge voltage. BACKPLANE BACKPLANE CONNECTOR I/O PERIPHERAL CARD 1 VCC2 C1 R1 R2 R7 R8 0.01µF 10k 10k 10k 10k V V V CC CC CC2 SDAOUT CARD_SDA SDA SDAIN LTC4300A-3 SCLOUT CARD_SCL SCL SCLIN GND ENABLE C2 0.01µF R3 ENA1 10k I/O PERIPHERAL CARD 2 C3 R4 R5 0.01µF 10k 10k V V CC CC2 SDAOUT CARD2_SDA SDAIN LTC4300A-3 SCLOUT CARD2_SCL SCLIN GND ENABLE C4 0.01µF R6 ENA2 10k 4300a3 F03

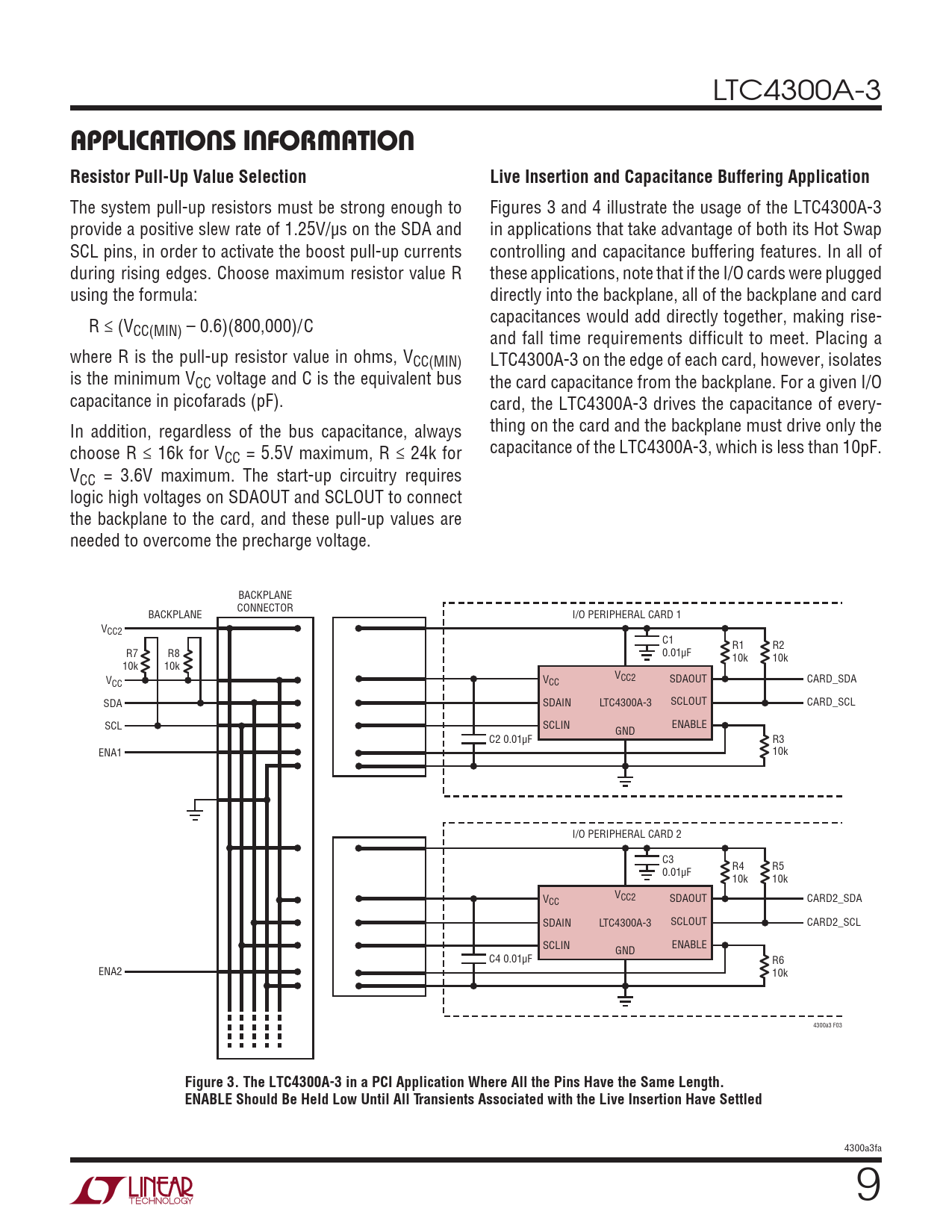

Figure 3. The LTC4300A-3 in a PCI Application Where All the Pins Have the Same Length. ENABLE Should Be Held Low Until All Transients Associated with the Live Insertion Have Settled
