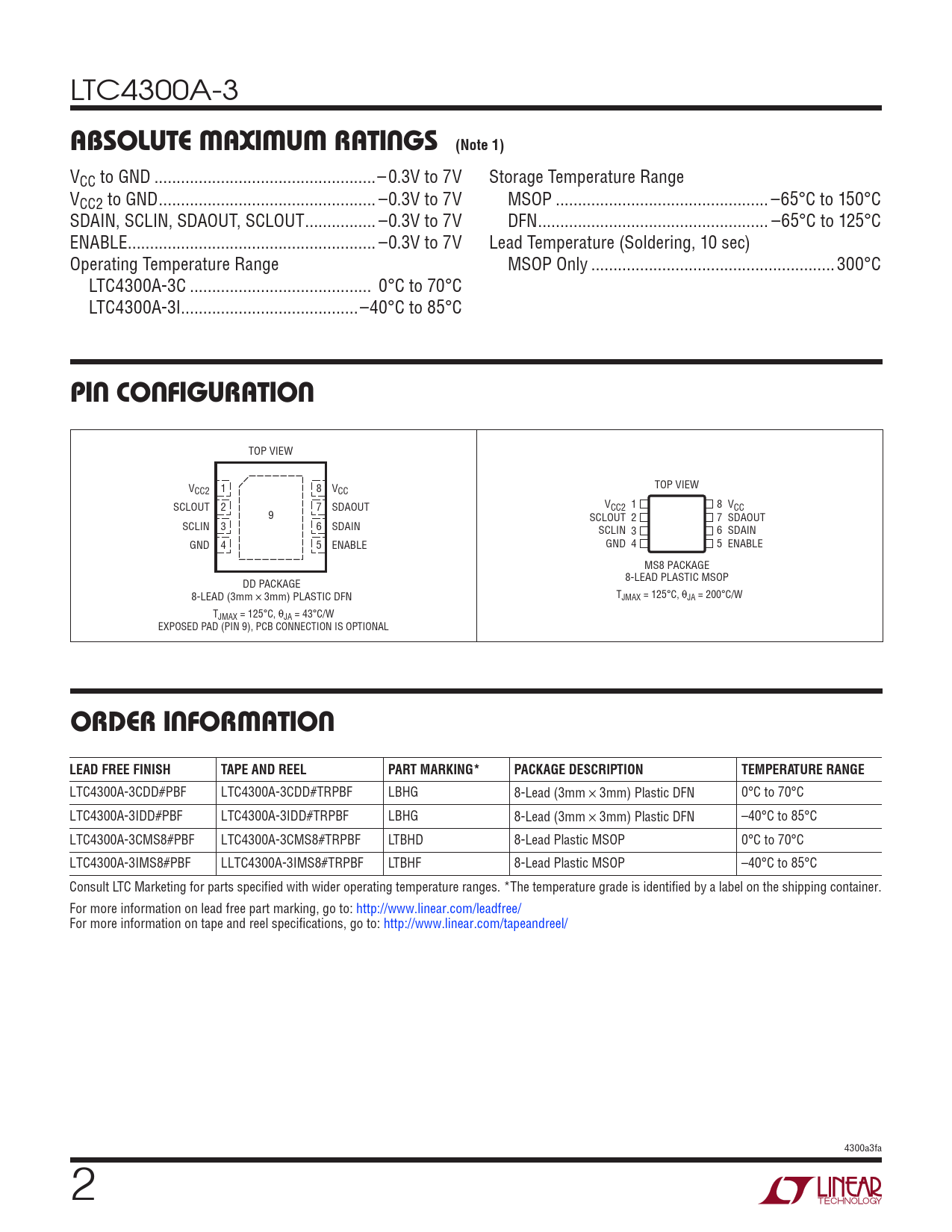

LTC4300A-3
absoluTe MaxiMuM raTings (Note 1)
VCC to GND ..–0.3V to 7V Storage Temperature Range VCC2 to GND ... –0.3V to 7V MSOP .. –65°C to 150°C SDAIN, SCLIN, SDAOUT, SCLOUT .. –0.3V to 7V DFN .. –65°C to 125°C ENABLE .. –0.3V to 7V Lead Temperature (Soldering, 10 sec) Operating Temperature Range MSOP Only ...300°C LTC4300A-3C ... 0°C to 70°C LTC4300A-3I..–40°C to 85°C
pin conFiguraTion
TOP VIEW V TOP VIEW CC2 1 8 VCC SCLOUT 2 7 SDAOUT VCC2 1 8 VCC 9 SCLOUT 2 7 SDAOUT SCLIN 3 6 SDAIN SCLIN 3 6 SDAIN GND 4 5 ENABLE GND 4 5 ENABLE MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN T JMAX = 125°C, θJA = 200°C/W TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 9), PCB CONNECTION IS OPTIONAL
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4300A-3CDD#PBF LTC4300A-3CDD#TRPBF LBHG 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4300A-3IDD#PBF LTC4300A-3IDD#TRPBF LBHG 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4300A-3CMS8#PBF LTC4300A-3CMS8#TRPBF LTBHD 8-Lead Plastic MSOP 0°C to 70°C LTC4300A-3IMS8#PBF LLTC4300A-3IMS8#TRPBF LTBHF 8-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 4300a3fa 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Related Parts Typical Application
