Datasheet VP0550 (Supertex) - 5
| Fabricante | Supertex |
| Descripción | P-Channel Enhancement-Mode Vertical DMOS FETs |
| Páginas / Página | 5 / 5 — VP0550. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. … |
| Revisión | 06-27-2014 |
| Formato / tamaño de archivo | PDF / 641 Kb |
| Idioma del documento | Inglés |

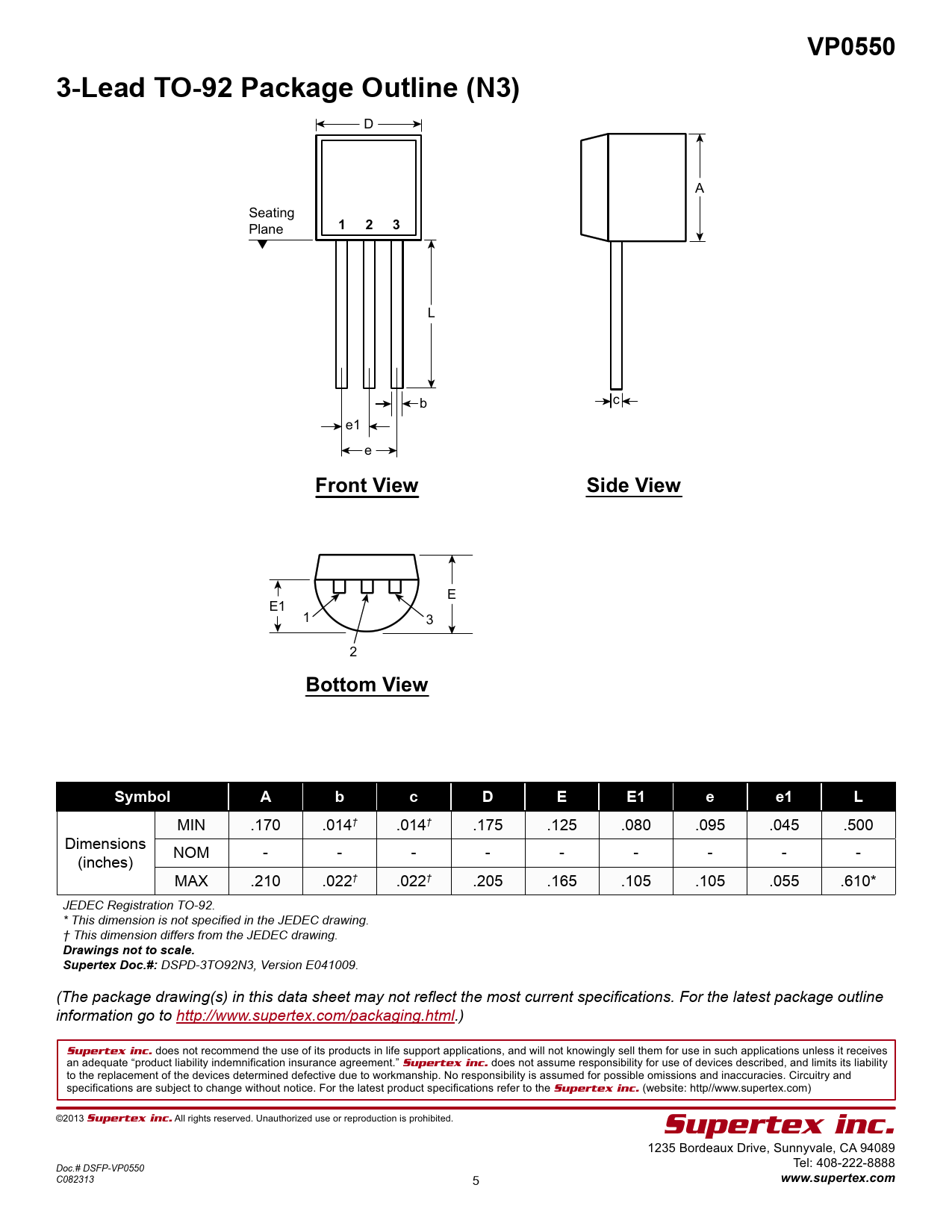

VP0550. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. Bottom View. Symbol. Drawings not to scale. Supertex Doc.#:
Línea de modelo para esta hoja de datos
Versión de texto del documento
VP0550 3-Lead TO-92 Package Outline (N3)
D A Seating Plane
1 2 3
L c b e1 e
Front View Side View
E E1 1 3 2
Bottom View Symbol A b c D E E1 e e1 L
MIN .170 .014† .014† .175 .125 .080 .095 .045 .500 Dimensions (inches) NOM - - - - - - - - - MAX .210 .022† .022† .205 .165 .105 .105 .055 .610* JEDEC Registration TO-92. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc.#:
DSPD-3TO92N3, Version E041009. (The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to http://www.supertex.com/packaging.html.)
