Datasheet 2N6660 (Microchip) - 5
| Fabricante | Microchip |
| Descripción | 60V, 3 Ohm, N-Channel, Enhancement-Mode, Vertical DMOS FET |
| Páginas / Página | 10 / 5 — 2N6660. 4.0. PACKAGING INFORMATION. 4.1. Package Marking Information. … |
| Formato / tamaño de archivo | PDF / 463 Kb |
| Idioma del documento | Inglés |
2N6660. 4.0. PACKAGING INFORMATION. 4.1. Package Marking Information. Legend:. Note
Línea de modelo para esta hoja de datos
Versión de texto del documento

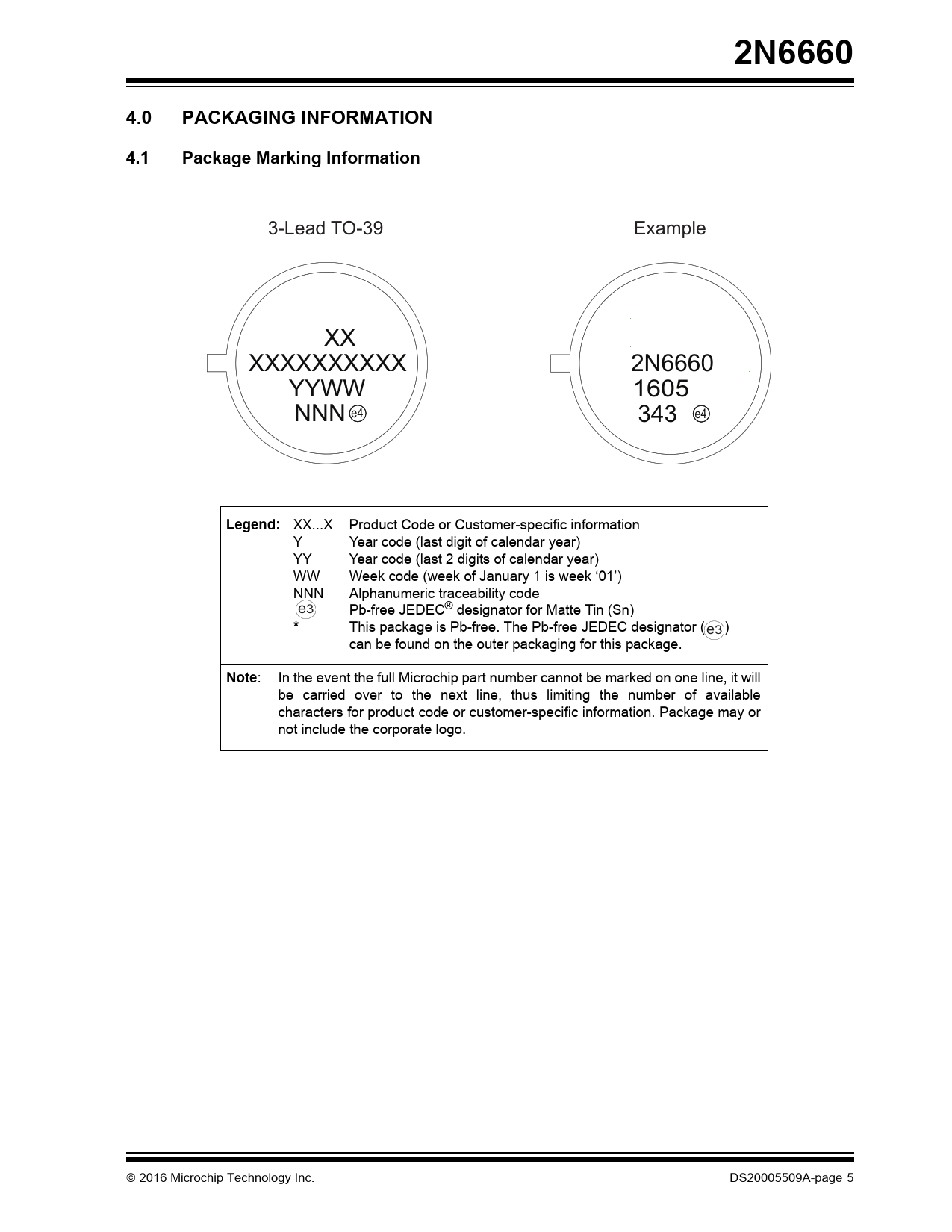

2N6660 4.0 PACKAGING INFORMATION 4.1 Package Marking Information
3-Lead TO-39 Example XX XXXXXXXXXX 2N6660 YYWW 1605 NNN e4 343 e4
Legend:
XX...X Product Code or Customer-specific information Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week ‘01’) NNN Alphanumeric traceability code e3 Pb-free JEDEC® designator for Matte Tin (Sn)
*
This package is Pb-free. The Pb-free JEDEC designator ( ) e3 can be found on the outer packaging for this package.
Note
: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for product code or customer-specific information. Package may or not include the corporate logo. 2016 Microchip Technology Inc. DS20005509A-page 5 Document Outline 1.0 Electrical Characteristics 2.0 Pin Description TABLE 2-1: Pin Description 3.0 Functional Description FIGURE 3-1: Switching Waveforms and Test Circuit 4.0 Packaging Information 4.1 Package Marking Information AMERICAS Corporate Office Atlanta Austin, TX Boston Chicago Cleveland Dallas Detroit Houston, TX Indianapolis Los Angeles New York, NY San Jose, CA Canada - Toronto ASIA/PACIFIC Asia Pacific Office Hong Kong Australia - Sydney China - Beijing China - Chengdu China - Chongqing China - Dongguan China - Hangzhou China - Hong Kong SAR China - Nanjing China - Qingdao China - Shanghai China - Shenyang China - Shenzhen China - Wuhan China - Xian ASIA/PACIFIC China - Xiamen China - Zhuhai India - Bangalore India - New Delhi India - Pune Japan - Osaka Japan - Tokyo Korea - Daegu Korea - Seoul Malaysia - Kuala Lumpur Malaysia - Penang Philippines - Manila Singapore Taiwan - Hsin Chu Taiwan - Kaohsiung Taiwan - Taipei Thailand - Bangkok EUROPE Austria - Wels Denmark - Copenhagen France - Paris Germany - Dusseldorf Germany - Karlsruhe Germany - Munich Italy - Milan Italy - Venice Netherlands - Drunen Poland - Warsaw Spain - Madrid Sweden - Stockholm UK - Wokingham
