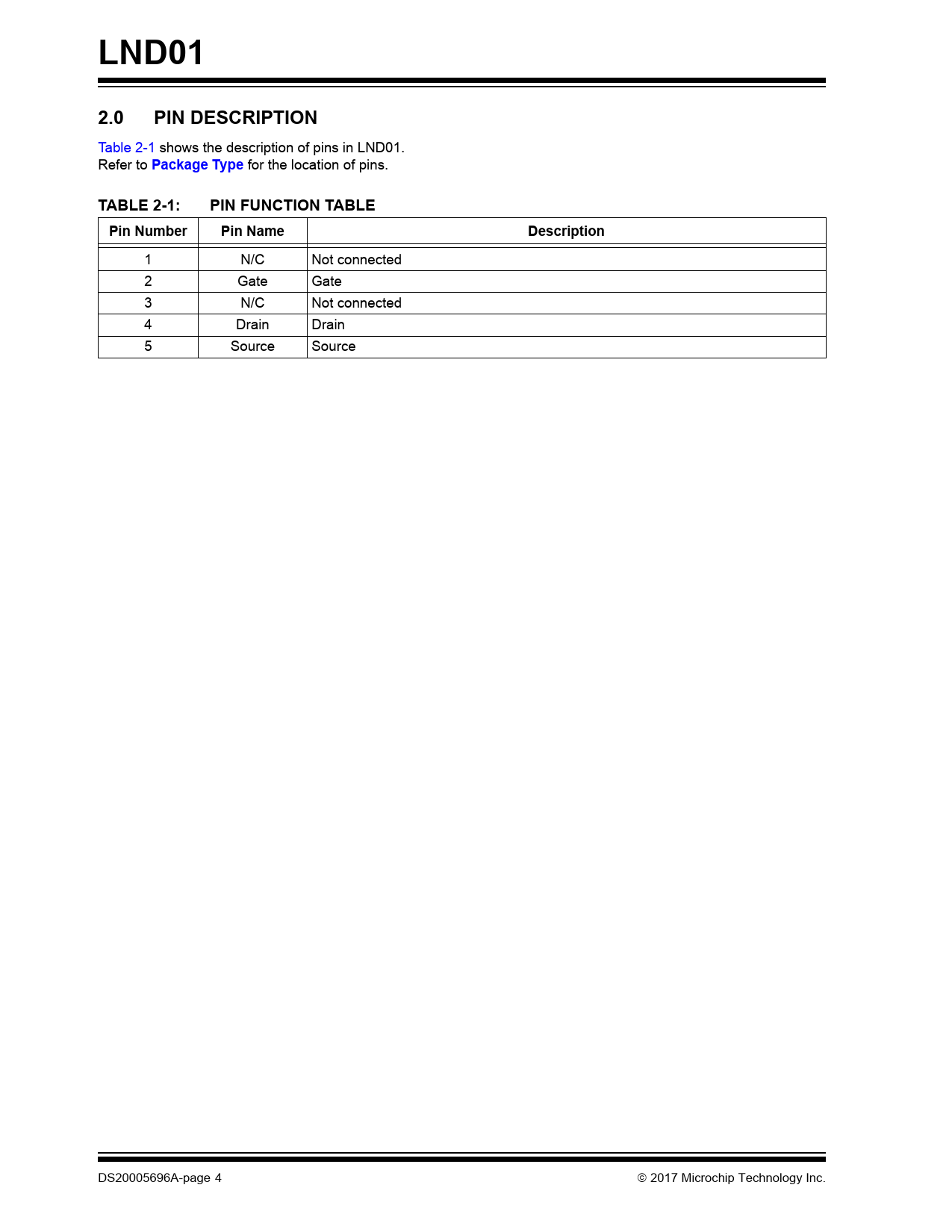

LND01 2.0 PIN DESCRIPTION
Table 2-1 shows the description of pins in LND01. Refer to
Package Type
for the location of pins.
TABLE 2-1: PIN FUNCTION TABLE Pin Number Pin Name Description
1 N/C Not connected 2 Gate Gate 3 N/C Not connected 4 Drain Drain 5 Source Source DS20005696A-page 4 2017 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Pin Description TABLE 2-1: Pin Function Table 3.0 Functional Description FIGURE 3-1: Switching Waveforms and Test Circuit. TABLE 3-1: Product Summary 4.0 Packaging Information 4.1 Package Marking Information
