Datasheet DN3545 (Microchip) - 5
| Fabricante | Microchip |
| Descripción | N-Channel Depletion-Mode Vertical DMOS FET Features |
| Páginas / Página | 6 / 5 — DN3545. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. … |
| Revisión | 06-27-2014 |
| Formato / tamaño de archivo | PDF / 849 Kb |
| Idioma del documento | Inglés |

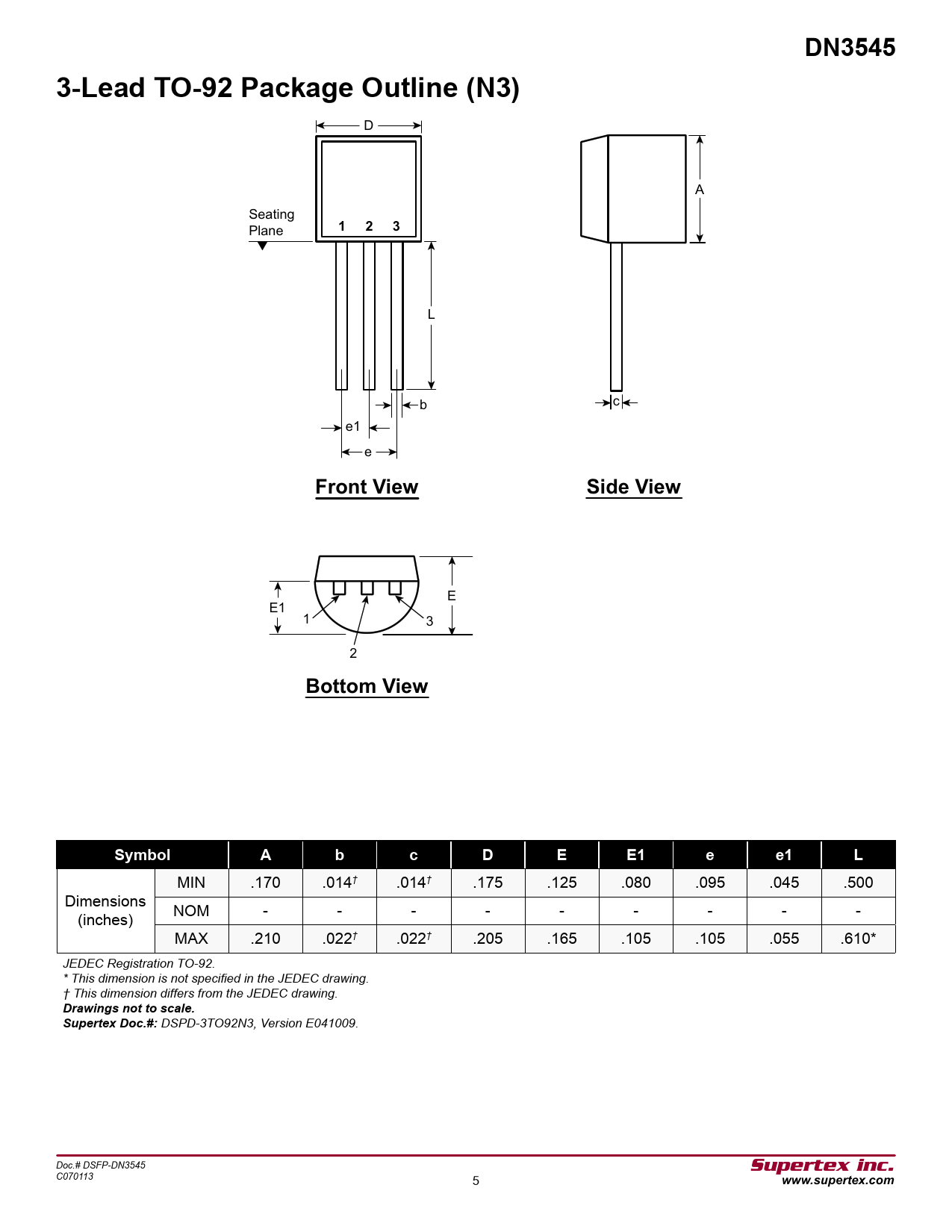

DN3545. 3-Lead TO-92 Package Outline (N3). 1 2 3. Front View. Side View. Bottom View. Symbol. Drawings not to scale. Supertex Doc.#:
Versión de texto del documento
DN3545 3-Lead TO-92 Package Outline (N3)
D A Seating Plane
1 2 3
L c b e1 e
Front View Side View
E E1 1 3 2
Bottom View Symbol A b c D E E1 e e1 L
MIN .170 .014† .014† .175 .125 .080 .095 .045 .500 Dimensions (inches) NOM - - - - - - - - - MAX .210 .022† .022† .205 .165 .105 .105 .055 .610* JEDEC Registration TO-92. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc.#:
DSPD-3TO92N3, Version E041009. Doc.# DSFP-DN3545
Supertex inc.
C070113 5
www.supertex.com
