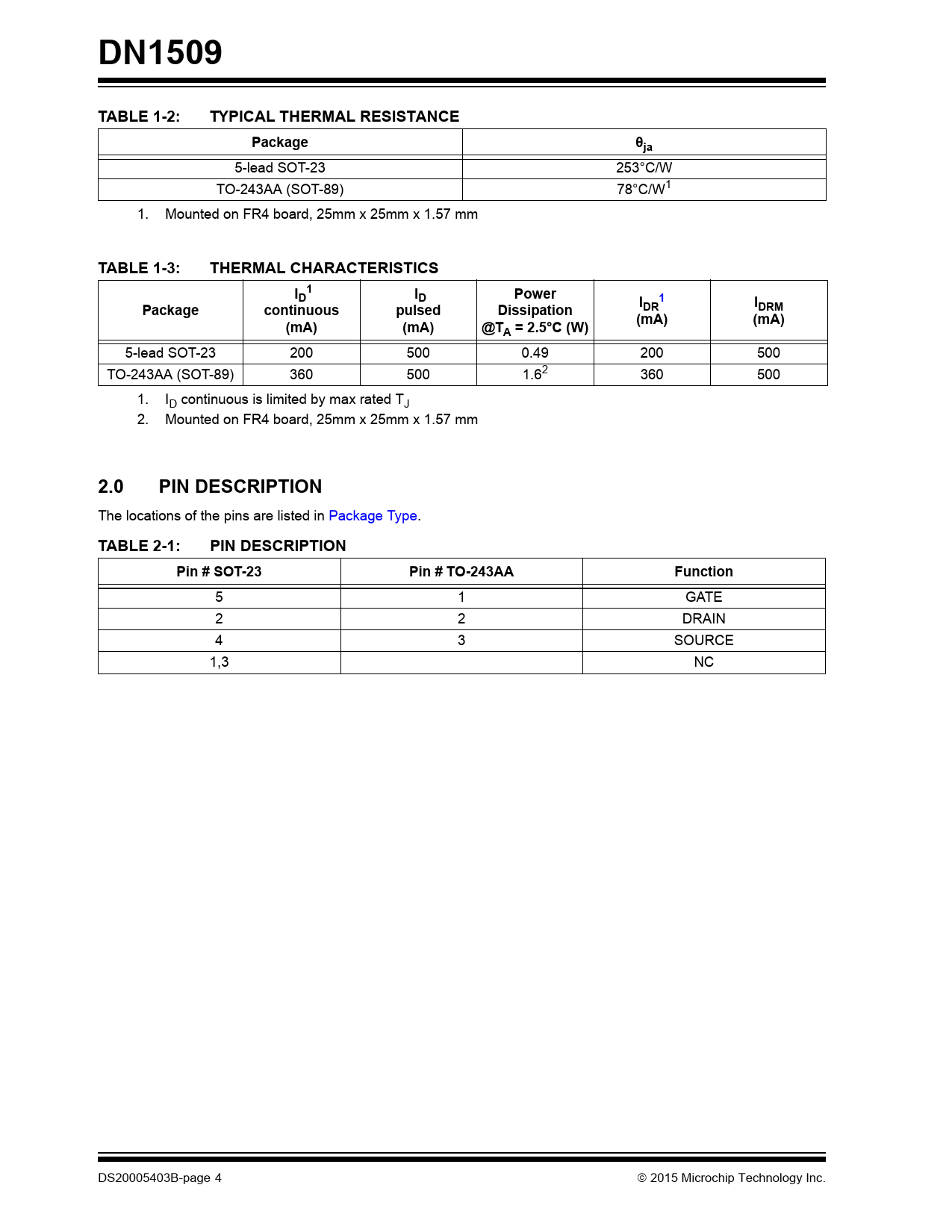

DN1509 TABLE 1-2: TYPICAL THERMAL RESISTANCE Package θja
5-lead SOT-23 253°C/W TO-243AA (SOT-89) 78°C/W1 1. Mounted on FR4 board, 25mm x 25mm x 1.57 mm
TABLE 1-3: THERMAL CHARACTERISTICS I 1 D ID Power I 1 I Package continuous pulsed Dissipation DR DRM (mA) (mA) (mA) (mA) @TA = 2.5°C (W)
5-lead SOT-23 200 500 0.49 200 500 TO-243AA (SOT-89) 360 500 1.62 360 500 1. ID continuous is limited by max rated TJ 2. Mounted on FR4 board, 25mm x 25mm x 1.57 mm
2.0 PIN DESCRIPTION
The locations of the pins are listed in Package Type.
TABLE 2-1: PIN DESCRIPTION Pin # SOT-23 Pin # TO-243AA Function
5 1 GATE 2 2 DRAIN 4 3 SOURCE 1,3 NC DS20005403B-page 4 2015 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 1.1 Electrical Specifications TABLE 1-1: DC and AC Characteristics TABLE 1-2: Typical Thermal Resistance TABLE 1-3: Thermal characteristics 2.0 Pin Description TABLE 2-1: Pin Description 3.0 Application Information FIGURE 3-1: Switching Waveforms and Test Circuit 4.0 Packaging Information 4.1 Package Marking Information AMERICAS Corporate Office Atlanta Austin, TX Boston Chicago Cleveland Dallas Detroit Houston, TX Indianapolis Los Angeles New York, NY San Jose, CA Canada - Toronto ASIA/PACIFIC Asia Pacific Office Hong Kong Australia - Sydney China - Beijing China - Chengdu China - Chongqing China - Dongguan China - Hangzhou China - Hong Kong SAR China - Nanjing China - Qingdao China - Shanghai China - Shenyang China - Shenzhen China - Wuhan China - Xian ASIA/PACIFIC China - Xiamen China - Zhuhai India - Bangalore India - New Delhi India - Pune Japan - Osaka Japan - Tokyo Korea - Daegu Korea - Seoul Malaysia - Kuala Lumpur Malaysia - Penang Philippines - Manila Singapore Taiwan - Hsin Chu Taiwan - Kaohsiung Taiwan - Taipei Thailand - Bangkok EUROPE Austria - Wels Denmark - Copenhagen France - Paris Germany - Dusseldorf Germany - Karlsruhe Germany - Munich Italy - Milan Italy - Venice Netherlands - Drunen Poland - Warsaw Spain - Madrid Sweden - Stockholm UK - Wokingham
