MCP48FXBXX Typical Performance Curves 1.0 TYPICAL PERFORMANCE CURVES Note 1:
The following performance graphs are for the devices that are documented in the MCP48FEBXX data sheet (DS-20005429). This document allows the MCP48FEBXX data sheet’s functional description to be in PDF format with a file size smaller than the 10 MB limit of many email file servers. The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
2:
For quick indexing of Characterization Graphs, expand the PDF bookmarks. Graphs related to all devices (IDD, IPD, VIH, VIL, VOH, VOL, VIHH, and VOUT drive) are before the device VOUT linearity graphs (Total Unadjusted Error, INL, and DNL).
Note:
Unless otherwise indicated, TA = +25°C, VDD = 5.5V.

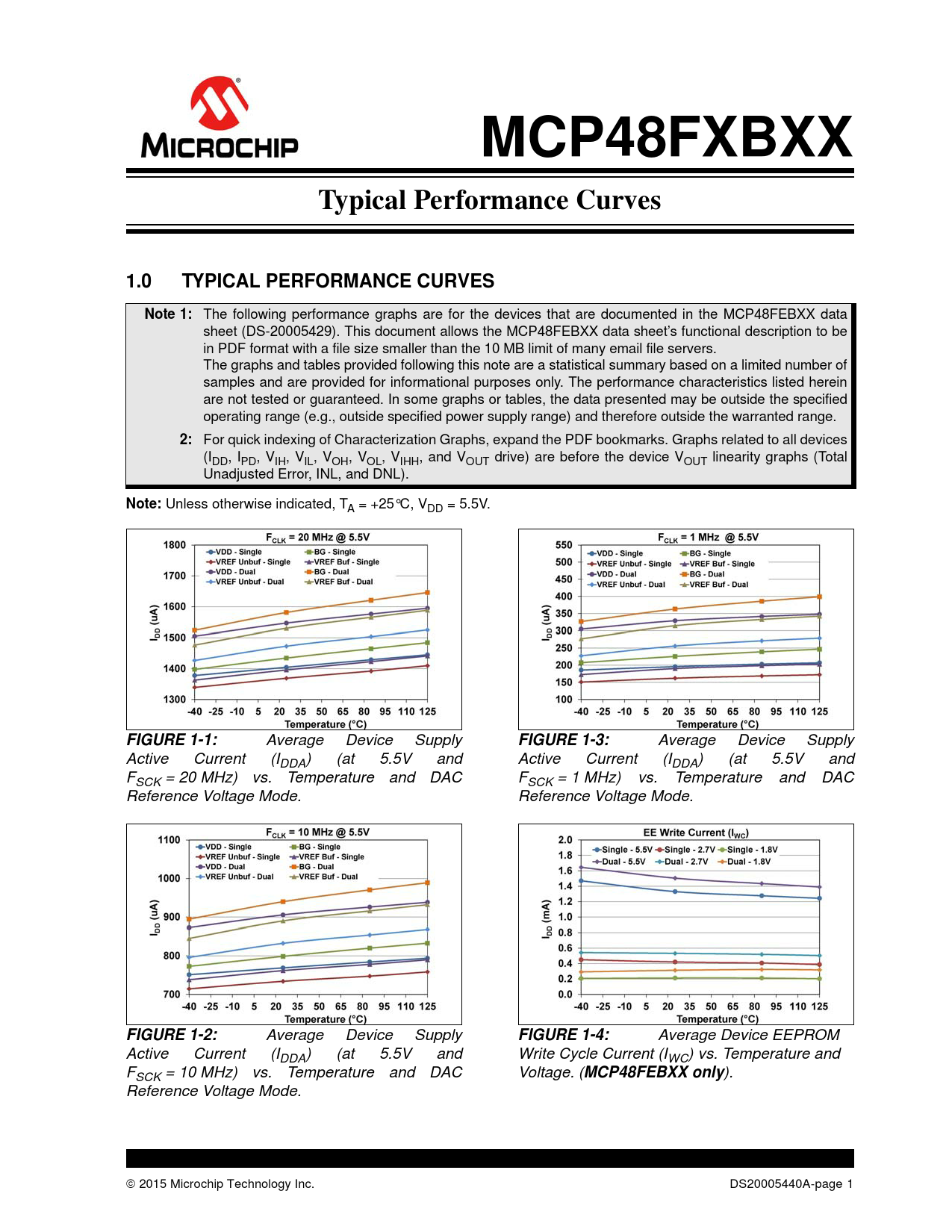

FIGURE 1-1:
Average Device Supply
FIGURE 1-3:
Average Device Supply Active Current (IDDA) (at 5.5V and Active Current (IDDA) (at 5.5V and FSCK = 20 MHz) vs. Temperature and DAC FSCK = 1 MHz) vs. Temperature and DAC Reference Voltage Mode. Reference Voltage Mode.
FIGURE 1-2:
Average Device Supply
FIGURE 1-4:
Average Device EEPROM Active Current (IDDA) (at 5.5V and Write Cycle Current (IWC) vs. Temperature and FSCK = 10 MHz) vs. Temperature and DAC Voltage. (
MCP48FEBXX only
). Reference Voltage Mode.  2015 Microchip Technology Inc. DS20005440A-page 1 Document Outline 1.0 Typical Performance Curves 12-bit FIGURE 1-40: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-41: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-42: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-43: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-44: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-45: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-46: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-47: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-48: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-49: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-50: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-51: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-52: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-53: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-54: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-55: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-56: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-57: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-58: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-59: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-60: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-61: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-62: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-63: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-64: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-65: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-66: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-67: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-68: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-69: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-70: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-71: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-72: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-73: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-74: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-75: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-76: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-77: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-78: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-79: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-80: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-81: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-82: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-83: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-84: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-85: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-86: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-87: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-88: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-89: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-90: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-91: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-92: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-93: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-94: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-95: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-96: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-97: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-98: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-99: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-100: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-101: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-102: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-103: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-104: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-105: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-106: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-107: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-108: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-109: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-110: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-111: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-112: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-113: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-114: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-115: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-116: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-117: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-118: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-119: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-120: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-121: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-122: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-123: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-124: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-125: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-126: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-127: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-128: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-129: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-130: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-131: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-132: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-133: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-134: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-135: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-136: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-137: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-138: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-139: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-140: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-141: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-142: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-143: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-144: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-145: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-146: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-147: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-148: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-149: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-150: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-151: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-152: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-153: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-154: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-155: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-156: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-157: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-158: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-159: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-160: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-161: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-162: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-163: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-164: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-165: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-166: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-167: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-168: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-169: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-170: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-171: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-172: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-173: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-174: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-175: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-176: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-177: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-178: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-179: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-180: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-181: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-182: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-183: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-184: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-185: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-186: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-187: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-188: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-189: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-190: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-191: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-192: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-193: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-194: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-195: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-196: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-197: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-198: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-199: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-200: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-201: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-202: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-203: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-204: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-205: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-206: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-207: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-208: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-209: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-210: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-211: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-212: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-213: INL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-214: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-215: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-216: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Single Channel - MCP48FXB21) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-217: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-218: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-219: DNL Error vs. DAC Code, and Temperature (Code 100 - 4000) (Dual Channel - MCP48FXB22) (12-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). 10-bit FIGURE 1-220: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-221: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-222: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-223: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-224: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-225: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-226: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-227: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-228: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-229: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-230: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-231: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-232: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-233: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-234: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-235: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-236: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-237: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-238: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-239: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-240: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-241: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-242: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-243: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-244: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-245: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-246: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-247: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-248: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-249: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-250: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-251: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-252: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-253: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-254: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-255: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-256: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-257: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-258: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-259: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-260: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-261: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-262: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-263: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-264: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-265: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-266: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-267: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-268: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-269: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-270: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-271: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-272: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-273: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-274: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-275: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-276: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-277: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-278: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-279: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-280: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-281: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-282: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-283: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-284: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-285: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-286: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-287: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-288: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-289: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-290: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-291: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-292: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-293: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-294: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-295: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-296: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-297: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-298: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-299: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-300: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-301: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-302: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-303: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-304: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-305: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-306: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-307: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-308: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-309: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-310: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-311: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-312: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-313: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-314: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-315: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-316: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-317: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-318: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-319: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-320: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-321: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-322: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-323: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-324: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-325: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-326: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-327: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-328: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-329: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-330: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-331: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-332: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-333: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-334: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-335: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-336: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-337: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-338: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-339: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-340: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-341: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-342: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-343: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-344: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-345: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-346: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-347: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-348: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-349: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-350: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-351: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-352: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-353: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-354: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-355: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-356: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-357: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-358: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-359: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-360: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-361: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-362: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-363: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-364: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-365: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-366: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-367: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-368: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-369: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-370: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-371: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-372: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-373: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-374: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-375: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-376: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-377: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-378: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-379: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-380: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-381: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-382: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-383: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-384: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-385: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-386: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-387: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-388: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-389: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-390: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-391: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-392: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-393: INL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-394: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-395: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-396: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Single Channel - MCP48FXB11) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-397: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-398: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-399: DNL Error vs. DAC Code, and Temperature (Code 25 - 1000) (Dual Channel - MCP48FXB12) (10-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). 8-bit FIGURE 1-400: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-401: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-402: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-403: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-404: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-405: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-406: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-407: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-408: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-409: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-410: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-411: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-412: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-413: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-414: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-415: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-416: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)). FIGURE 1-417: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VRxB:VRxA = ‘00’ (VDD), Gx = ‘0’ (1x)), (see Appendix B.1 for additional information). FIGURE 1-418: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-419: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-420: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-421: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-422: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-423: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-424: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-425: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-426: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-427: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-428: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-429: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-430: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-431: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-432: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-433: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘1’ (2x)). FIGURE 1-434: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-435: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VRxB:VRxA = ‘01’ (Bandgap), Gx = ‘0’ (1x)). FIGURE 1-436: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-437: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-438: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-439: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-440: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-441: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-442: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-443: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-444: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-445: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-446: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-447: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-448: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-449: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-450: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-451: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-452: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-453: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)), (see Appendix B.2 for additional information). FIGURE 1-454: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-455: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-456: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-457: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-458: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-459: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-460: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-461: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-462: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-463: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-464: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-465: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-466: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-467: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-468: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-469: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-470: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-471: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-472: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-473: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-474: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-475: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-476: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-477: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-478: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-479: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-480: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-481: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-482: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-483: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-484: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-485: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-486: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-487: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-488: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-489: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)), (see Appendix B.3 for additional information). FIGURE 1-490: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-491: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-492: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-493: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-494: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-495: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-496: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-497: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-498: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-499: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-500: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-501: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-502: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-503: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-504: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-505: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘1’ (2x)). FIGURE 1-506: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-507: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘10’ (VREF Unbuffered), Gx = ‘0’ (1x)). FIGURE 1-508: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-509: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-510: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-511: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-512: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-513: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-514: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-515: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-516: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-517: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-518: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-519: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-520: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-521: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-522: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-523: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-524: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-525: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = VDD, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)), (see Appendix B.4 for additional information). FIGURE 1-526: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-527: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-528: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-529: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-530: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-531: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-532: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-533: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-534: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-535: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-536: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-537: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-538: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-539: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-540: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-541: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-542: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-543: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-544: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-545: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-546: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-547: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-548: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-549: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-550: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-551: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-552: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-553: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-554: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-555: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-556: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-557: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-558: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-559: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-560: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-561: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 1.8V, VREF = 1V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)), (see Appendix B.5 for additional information). FIGURE 1-562: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-563: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-564: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-565: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-566: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-567: Total Unadjusted Error (VOUT) vs. DAC Code, and Temperature (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-568: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-569: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-570: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-571: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-572: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-573: INL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-574: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-575: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-576: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Single Channel - MCP48FXB01) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-577: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘1’ (2x)). FIGURE 1-578: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 5.5V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). FIGURE 1-579: DNL Error vs. DAC Code, and Temperature (Code 6 - 250) (Dual Channel - MCP48FXB02) (8-bit: VDD = 2.7V, VREF = 2.048V, VRxB:VRxA = ‘11’ (VREF Buffered), Gx = ‘0’ (1x)). Appendix A: Revision History Appendix B: Characterization Graph Performance Insights B.1 VDD Mode at VDD = 1.8V B.2 VREF Unbuffered Mode with VREF = VDD and a Gain of 1x at VDD = 1.8V B.3 VREF Unbuffered Mode with VREF = 1V and a Gain of 2x at VDD = 1.8V B.4 VREF Buffered Mode with VREF = VDD and a Gain of 1x at VDD = 1.8V B.5 VREF Buffered Mode with VREF = 1V and a Gain of 2x at VDD = 1.8V Trademarks Worldwide Sales and Service
