Datasheet ATtiny212, ATTINY412 (Microchip) - 8
| Fabricante | Microchip |
| Descripción | AVR Microcontroller with Core Independent Peripherals and picoPower Technology |
| Páginas / Página | 15 / 8 — ATtiny212/412. Pinout. 4.1. 8-pin SOIC. Datasheet Preliminary Summary |
| Formato / tamaño de archivo | PDF / 389 Kb |
| Idioma del documento | Inglés |
ATtiny212/412. Pinout. 4.1. 8-pin SOIC. Datasheet Preliminary Summary
Línea de modelo para esta hoja de datos
Versión de texto del documento

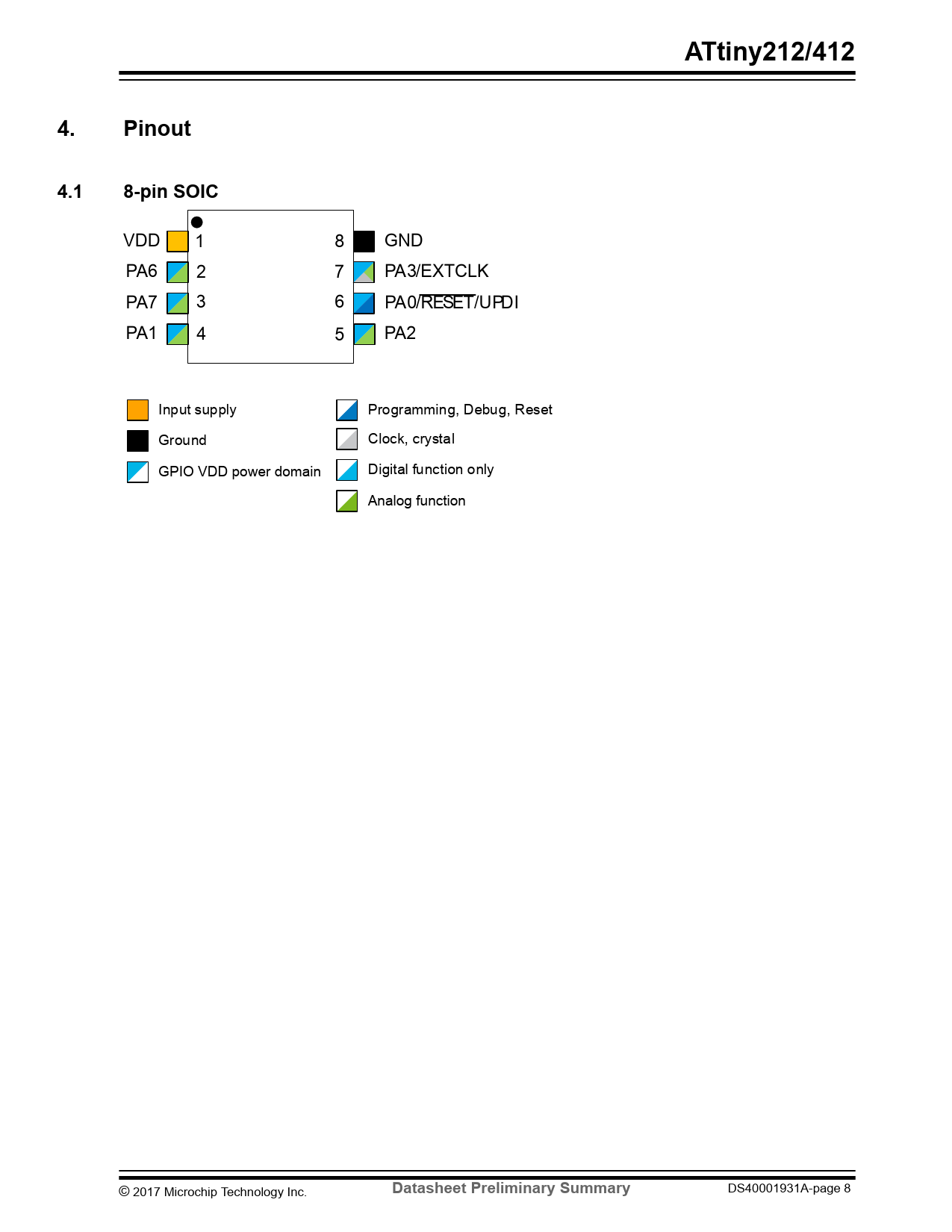

ATtiny212/412 4. Pinout 4.1 8-pin SOIC
VDD 1 8 GND PA6 2 7 PA3/EXTCLK PA7 3 6 PA0/RESET/UPDI PA1 4 5 PA2 Input supply Programming, Debug, Reset Ground Clock, crystal GPIO VDD power domain Digital function only Analog function © 2017 Microchip Technology Inc.
Datasheet Preliminary Summary
DS40001931A-page 8 Document Outline Introduction Features Table of Contents 1. tinyAVR® 1-Series Overview 1.1. Configuration Summary 1.1.1. Peripheral Summary 2. Ordering Information 2.1. ATtiny212 2.2. ATtiny412 3. Block Diagram 4. Pinout 4.1. 8-pin SOIC 5. I/O Multiplexing and Considerations 5.1. Multiplexed Signals 6. Package Drawings 6.1. 8-pin SOIC150 7. Thermal Considerations 7.1. Thermal Resistance Data 7.2. Junction Temperature The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
VDD 1 8 GND PA6 2 7 PA3/EXTCLK PA7 3 6 PA0/RESET/UPDI PA1 4 5 PA2 Input supply Programming, Debug, Reset Ground Clock, crystal GPIO VDD power domain Digital function only Analog function © 2017 Microchip Technology Inc.
Datasheet Preliminary Summary
DS40001931A-page 8 Document Outline Introduction Features Table of Contents 1. tinyAVR® 1-Series Overview 1.1. Configuration Summary 1.1.1. Peripheral Summary 2. Ordering Information 2.1. ATtiny212 2.2. ATtiny412 3. Block Diagram 4. Pinout 4.1. 8-pin SOIC 5. I/O Multiplexing and Considerations 5.1. Multiplexed Signals 6. Package Drawings 6.1. 8-pin SOIC150 7. Thermal Considerations 7.1. Thermal Resistance Data 7.2. Junction Temperature The Microchip Web Site Customer Change Notification Service Customer Support Microchip Devices Code Protection Feature Legal Notice Trademarks Quality Management System Certified by DNV Worldwide Sales and Service
