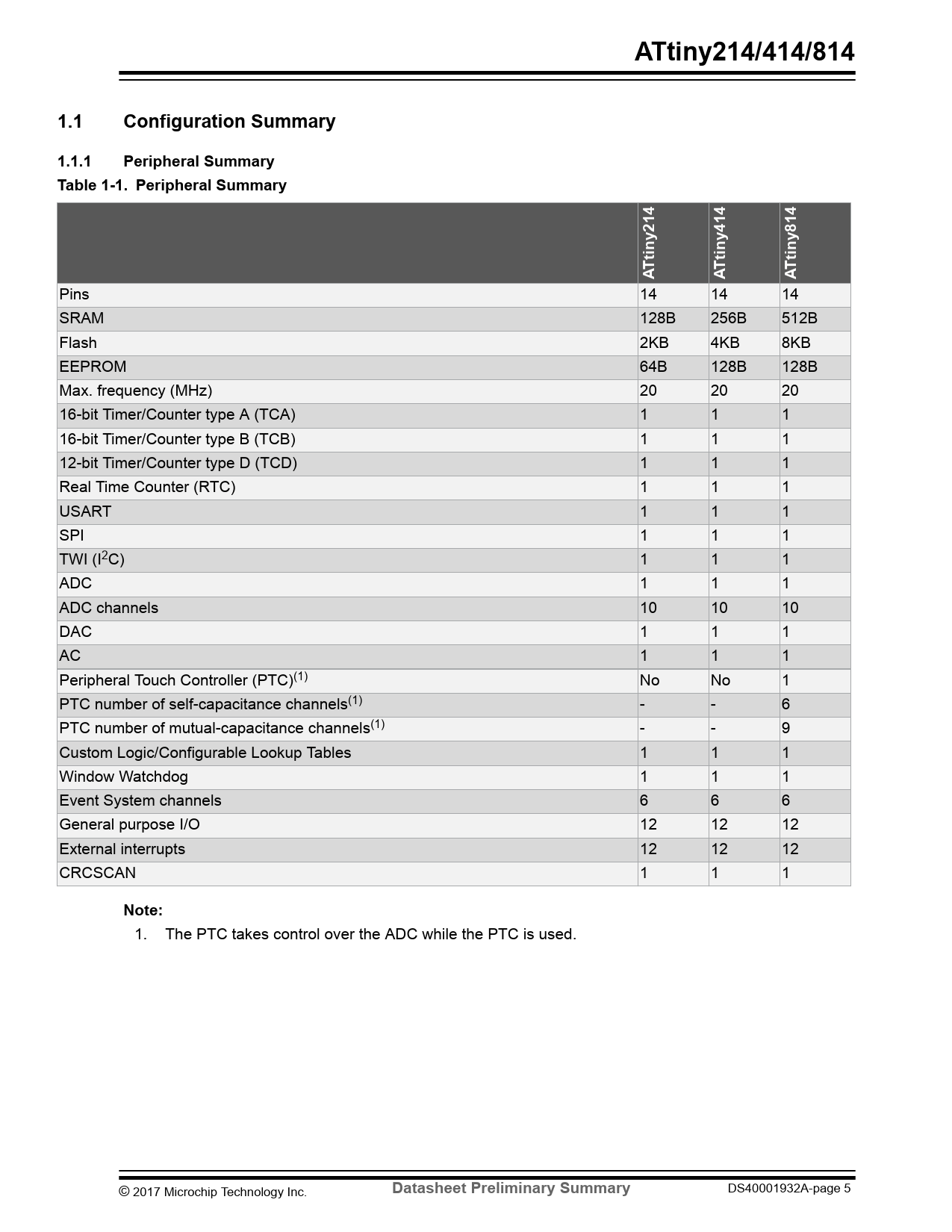

ATtiny214/414/814 1.1 Configuration Summary 1.1.1 Peripheral Summary Table 1-1. Peripheral Summary Ttiny214 Ttiny414 Ttiny814 A A A
Pins 14 14 14 SRAM 128B 256B 512B Flash 2KB 4KB 8KB EEPROM 64B 128B 128B Max. frequency (MHz) 20 20 20 16-bit Timer/Counter type A (TCA) 1 1 1 16-bit Timer/Counter type B (TCB) 1 1 1 12-bit Timer/Counter type D (TCD) 1 1 1 Real Time Counter (RTC) 1 1 1 USART 1 1 1 SPI 1 1 1 TWI (I2C) 1 1 1 ADC 1 1 1 ADC channels 10 10 10 DAC 1 1 1 AC 1 1 1 Peripheral Touch Controller (PTC)(1) No No 1 PTC number of self-capacitance channels(1) - - 6 PTC number of mutual-capacitance channels(1) - - 9 Custom Logic/Configurable Lookup Tables 1 1 1 Window Watchdog 1 1 1 Event System channels 6 6 6 General purpose I/O 12 12 12 External interrupts 12 12 12 CRCSCAN 1 1 1
Note: 
1. The PTC takes control over the ADC while the PTC is used. © 2017 Microchip Technology Inc.
