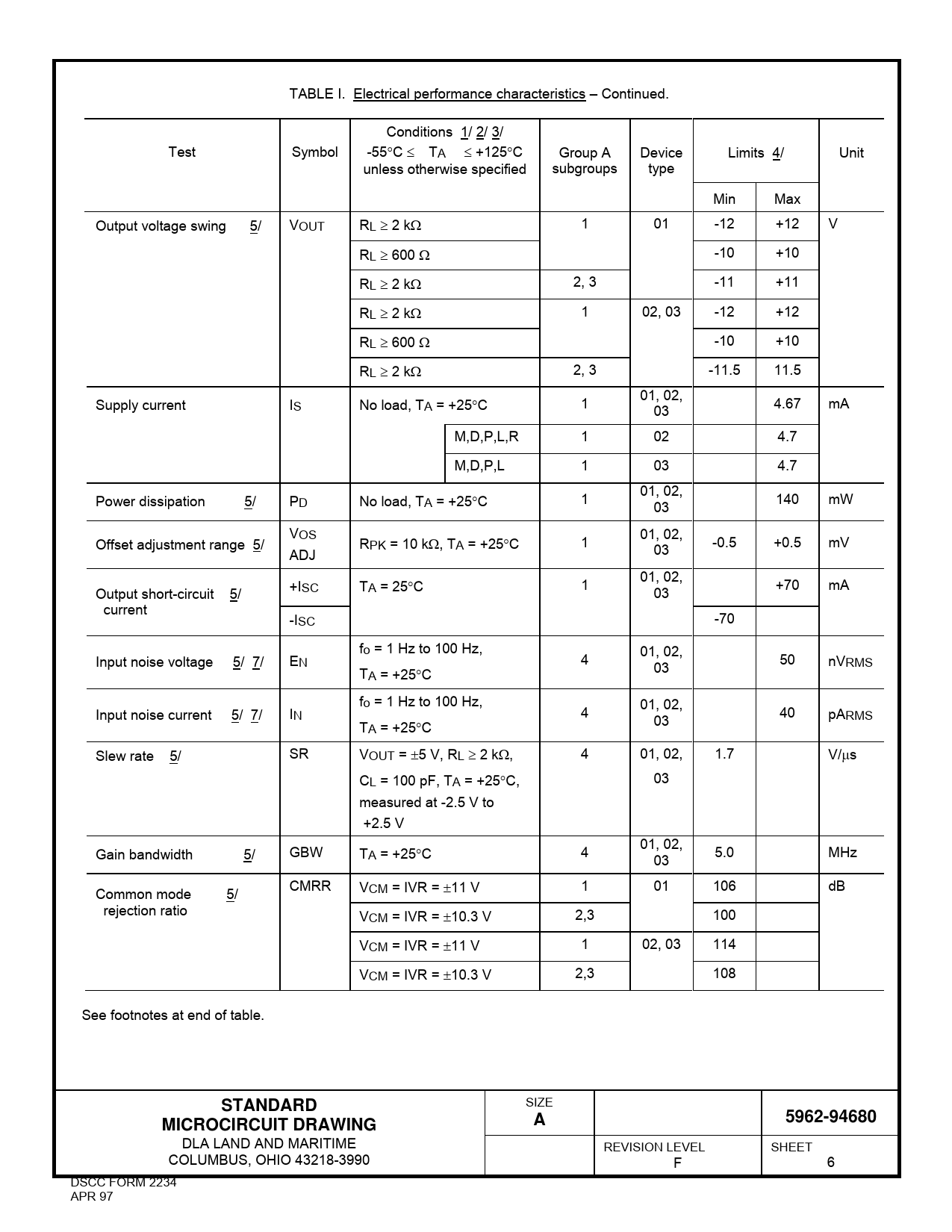

TABLE I. Electrical performance characteristics – Continued. Conditions 1/ 2/ 3/ Test Symbol -55C  TA  +125C Group A Device Limits 4/ Unit unless otherwise specified subgroups type Min Max Output voltage swing 5/ VOUT RL  2 k 1 01 -12 +12 V RL  600 -10 +10 RL  2 k 2, 3 -11 +11 RL  2 k 1 02, 03 -12 +12 RL  600 -10 +10 RL  2 k 2, 3 -11.5 11.5 01, 02, Supply current IS No load, TA = +25C 1 4.67 mA 03 M,D,P,L,R 1 02 4.7 M,D,P,L 1 03 4.7 01, 02, Power dissipation 5/ PD No load, TA = +25C 1 140 mW 03 VOS 01, 02, Offset adjustment range 5/ RPK = 10 k, TA = +25C 1 -0.5 +0.5 mV ADJ 03 01, 02, +70 mA Output short-circuit 5/ +ISC TA = 25C 1 03 current -ISC -70 fo = 1 Hz to 100 Hz, 01, 02, Input noise voltage 5/ 7/ EN 4 50 nVRMS T 03 A = +25C fo = 1 Hz to 100 Hz, 01, 02, Input noise current 5/ 7/ IN 4 40 pARMS T 03 A = +25C Slew rate 5/ SR VOUT = 5 V, RL  2 k, 4 01, 02, 1.7 V/s CL = 100 pF, TA = +25C, 03 measured at -2.5 V to +2.5 V 01, 02, Gain bandwidth 5/ GBW TA = +25C 4 5.0 MHz 03 CMRR Common mode 5/ VCM = IVR = 11 V 1 01 106 dB rejection ratio VCM = IVR = 10.3 V 2,3 100 VCM = IVR = 11 V 1 02, 03 114 VCM = IVR = 10.3 V 2,3 108 See footnotes at end of table.
