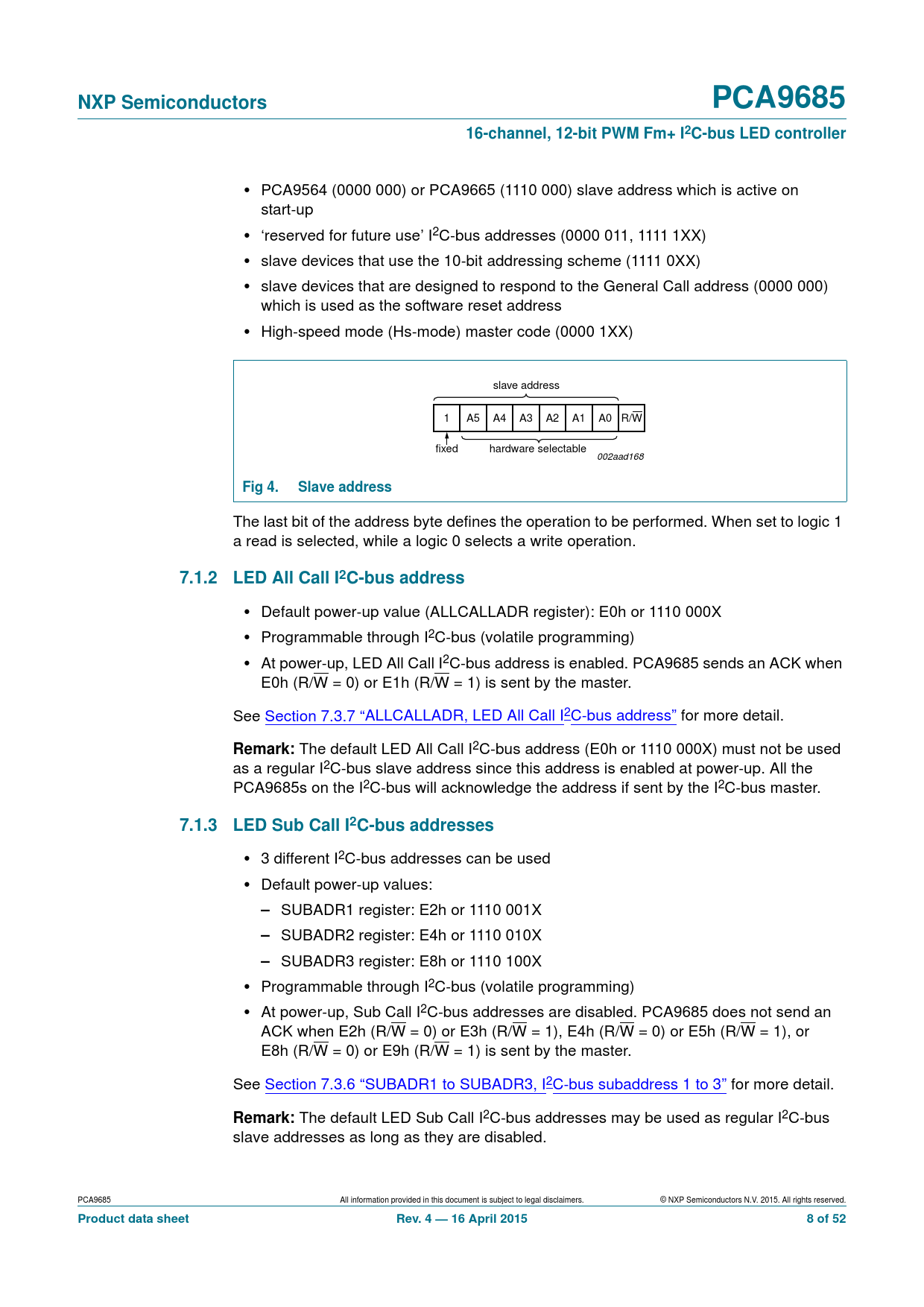

NXP Semiconductors PCA9685 16-channel, 12-bit PWM Fm+ I2C-bus LED controller •
PCA9564 (0000 000) or PCA9665 (1110 000) slave address which is active on start-up
•
‘reserved for future use’ I2C-bus addresses (0000 011, 1111 1XX)
•
slave devices that use the 10-bit addressing scheme (1111 0XX)
•
slave devices that are designed to respond to the General Call address (0000 000) which is used as the software reset address
•
High-speed mode (Hs-mode) master code (0000 1XX) slave address 1 A5 A4 A3 A2 A1 A0 R/W fixed hardware selectable 002aad168
Fig 4. Slave address
The last bit of the address byte defines the operation to be performed. When set to logic 1 a read is selected, while a logic 0 selects a write operation.
7.1.2 LED All Call I2C-bus address •
Default power-up value (ALLCALLADR register): E0h or 1110 000X
•
Programmable through I2C-bus (volatile programming)
•
At power-up, LED All Call I2C-bus address is enabled. PCA9685 sends an ACK when E0h (R/W = 0) or E1h (R/W = 1) is sent by the master. See Section 7.3.7 “ALLCALLADR, LED All Call I2C-bus address” for more detail.
Remark:
The default LED All Call I2C-bus address (E0h or 1110 000X) must not be used as a regular I2C-bus slave address since this address is enabled at power-up. All the PCA9685s on the I2C-bus will acknowledge the address if sent by the I2C-bus master.
7.1.3 LED Sub Call I2C-bus addresses •
3 different I2C-bus addresses can be used
•
Default power-up values:
–
SUBADR1 register: E2h or 1110 001X
–
SUBADR2 register: E4h or 1110 010X
–
SUBADR3 register: E8h or 1110 100X
•
Programmable through I2C-bus (volatile programming)
•
At power-up, Sub Call I2C-bus addresses are disabled. PCA9685 does not send an ACK when E2h (R/W = 0) or E3h (R/W = 1), E4h (R/W = 0) or E5h (R/W = 1), or E8h (R/W = 0) or E9h (R/W = 1) is sent by the master. See Section 7.3.6 “SUBADR1 to SUBADR3, I2C-bus subaddress 1 to 3” for more detail.
Remark:
The default LED Sub Call I2C-bus addresses may be used as regular I2C-bus slave addresses as long as they are disabled. PCA9685 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
Product data sheet Rev. 4 — 16 April 2015 8 of 52
