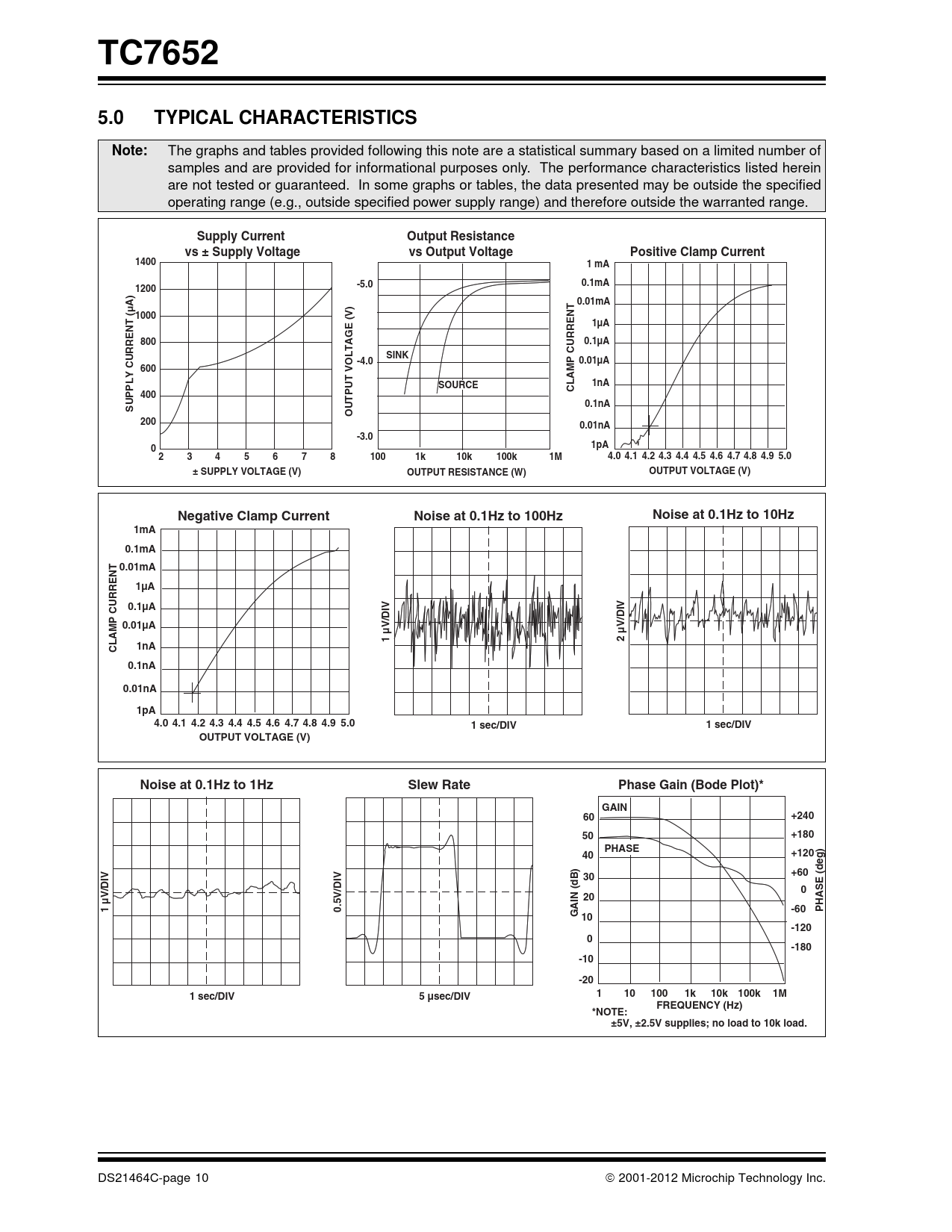

TC7652. 5.0. TYPICAL CHARACTERISTICS. Note:. Supply Current. Output Resistance. vs ± Supply Voltage. vs Output Voltage
Línea de modelo para esta hoja de datos
Versión de texto del documento
TC7652 5.0 TYPICAL CHARACTERISTICS Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
Supply Current Output Resistance vs ± Supply Voltage vs Output Voltage Positive Clamp Current 1400 1 mA -5.0 0.1mA 1200 0.01mA 1000 1µA 800 0.1µA SINK -4.0 0.01µA 600 1nA SOURCE CLAMP CURRENT 400 0.1nA SUPPLY CURRENT (µA) OUTPUT VOLTAGE (V) 200 0.01nA -3.0 0 1pA 2 3 4 5 6 7 8 100 1k 10k 100k 1M 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 ± SUPPLY VOLTAGE (V) OUTPUT RESISTANCE (W) OUTPUT VOLTAGE (V) Negative Clamp Current Noise at 0.1Hz to 100Hz Noise at 0.1Hz to 10Hz 1mA 0.1mA 0.01mA 1µA 0.1µA 0.01µA 1 µV/DIV 2 µV/DIV 1nA CLAMP CURRENT 0.1nA 0.01nA 1pA 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 1 sec/DIV 1 sec/DIV OUTPUT VOLTAGE (V) Noise at 0.1Hz to 1Hz Slew Rate Phase Gain (Bode Plot)* GAIN 60 +240 50 +180 PHASE 40 +120 g) (de 30 +60 0 20 1 µV/DIV 0.5V/DIV PHASE GAIN (dB) -60 10 -120 0 -180 -10 -20 1 sec/DIV 1 10 100 1k 10k 100k 1M 5 µsec/DIV FREQUENCY (Hz) *NOTE: ±5V, ±2.5V supplies; no load to 10k load.
