Datasheet TC7652 (Microchip) - 4
| Fabricante | Microchip |
| Descripción | TC7652 is a lower noise version of the TC7650, sacrificing some input specifications (bias current and bandwidth) to achieve a 10x reduction in noise |
| Páginas / Página | 18 / 4 — TC7652. TC7652 ELECTRICAL SPECIFICATIONS (CONTINUED). Electrical … |
| Formato / tamaño de archivo | PDF / 216 Kb |
| Idioma del documento | Inglés |
TC7652. TC7652 ELECTRICAL SPECIFICATIONS (CONTINUED). Electrical Characteristics:. Symbol. Parameter. Min. Typ. Max. Units
Línea de modelo para esta hoja de datos
Versión de texto del documento

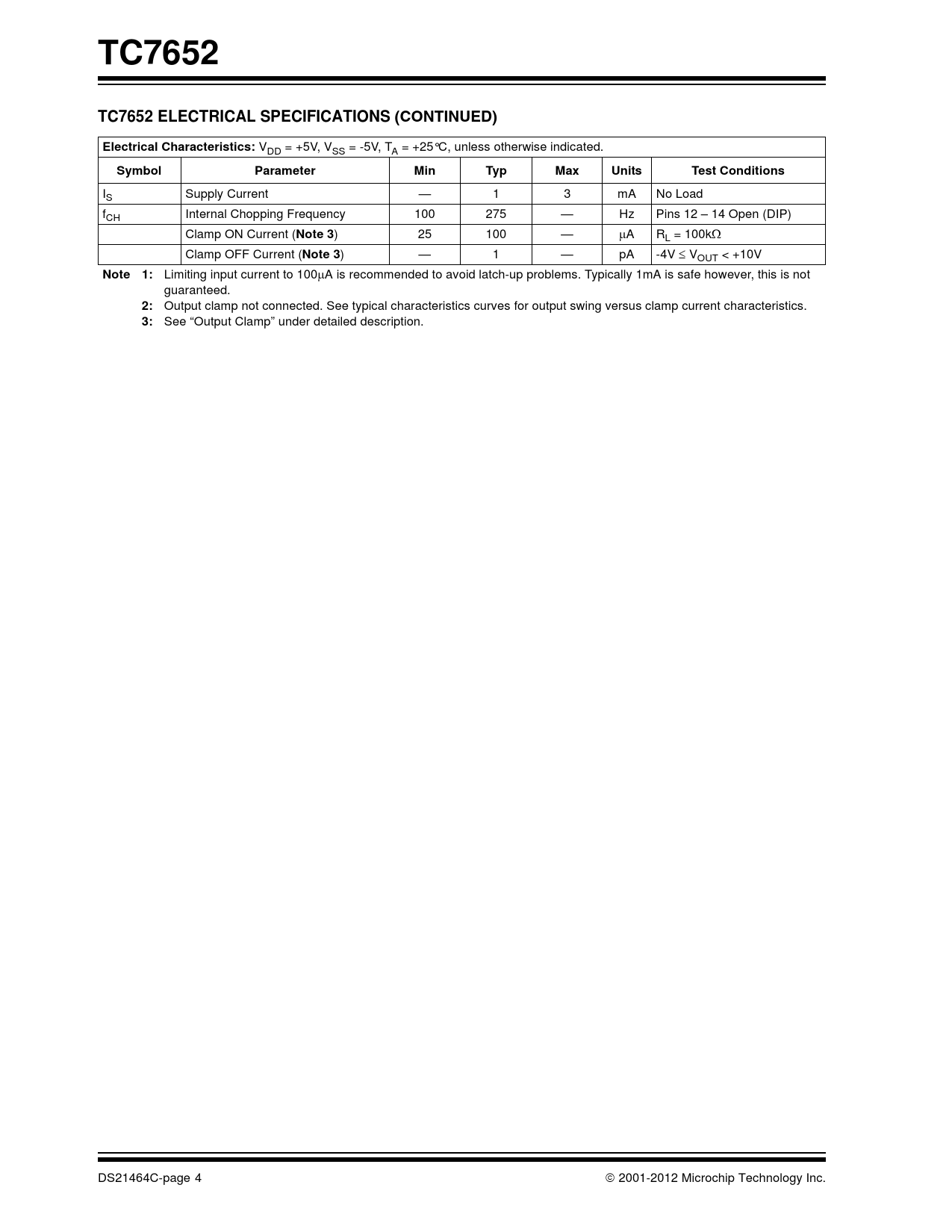

TC7652 TC7652 ELECTRICAL SPECIFICATIONS (CONTINUED) Electrical Characteristics:
VDD = +5V, VSS = -5V, TA = +25°C, unless otherwise indicated.
Symbol Parameter Min Typ Max Units Test Conditions
IS Supply Current — 1 3 mA No Load fCH Internal Chopping Frequency 100 275 — Hz Pins 12 – 14 Open (DIP) Clamp ON Current (
Note 3
) 25 100 — A RL = 100k Clamp OFF Current (
Note 3
) — 1 — pA -4V VOUT < +10V
Note 1:
Limiting input current to 100A is recommended to avoid latch-up problems. Typically 1mA is safe however, this is not guaranteed.
2:
Output clamp not connected. See typical characteristics curves for output swing versus clamp current characteristics.
3:
See “Output Clamp” under detailed description. DS21464C-page 4 2001-2012 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 pin descriptions TABLE 2-1: pin function table 3.0 detailed description 3.1 Capacitor Connection 3.2 Output Clamp 3.3 Clock Figure 3-1: TEST CIRCUIT 4.0 TYPICAL APPLICATIONS 4.1 Component Selection 4.2 Static Protection 4.3 Output Stage/Load Driving Figure 4-1: CONNECTION OF INPUT GUARDS 4.4 Thermoelectric Effects 4.5 Guarding 4.6 Pin Compatibility 4.7 Some Applications Figure 4-2: Noninverting amplifier with optional clamp Figure 4-3: inverting amplifier with optional clamp Figure 4-4: using 741 to boost output drive capability Figure 4-5: low offset comparator Figure 4-6: 1437 offset nulled by tc7652 Figure 4-7: splitting +15v with the 7660 at >95% efficiency 5.0 typical characteristics 6.0 packaging information 6.1 Package Marking Information 6.2 Package Dimensions 7.0 Revision History Corporate Office Atlanta Boston Chicago Cleveland Fax: 216-447-0643 Dallas Detroit Indianapolis Toronto Fax: 852-2401-3431 Australia - Sydney China - Beijing China - Shanghai India - Bangalore Korea - Daegu Korea - Seoul Singapore Taiwan - Taipei Fax: 43-7242-2244-393 Denmark - Copenhagen France - Paris Germany - Munich Italy - Milan Spain - Madrid UK - Wokingham Worldwide Sales and Service
