Datasheet MCP6021, MCP601R, MCP602, MCP603, MCP604 (Microchip) - 9
| Fabricante | Microchip |
| Descripción | The MCP6021 operational amplifier (op amp) has a gain bandwidth product of 10 MHz with a low typical operating current of 1.0 mA and an offset voltage that is less than 0.5 mV |
| Páginas / Página | 54 / 9 — MCP6021/1R/2/3/4. Note:. 10,000. = 5.5V. I , T = +125°C. = V. Currents. … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |

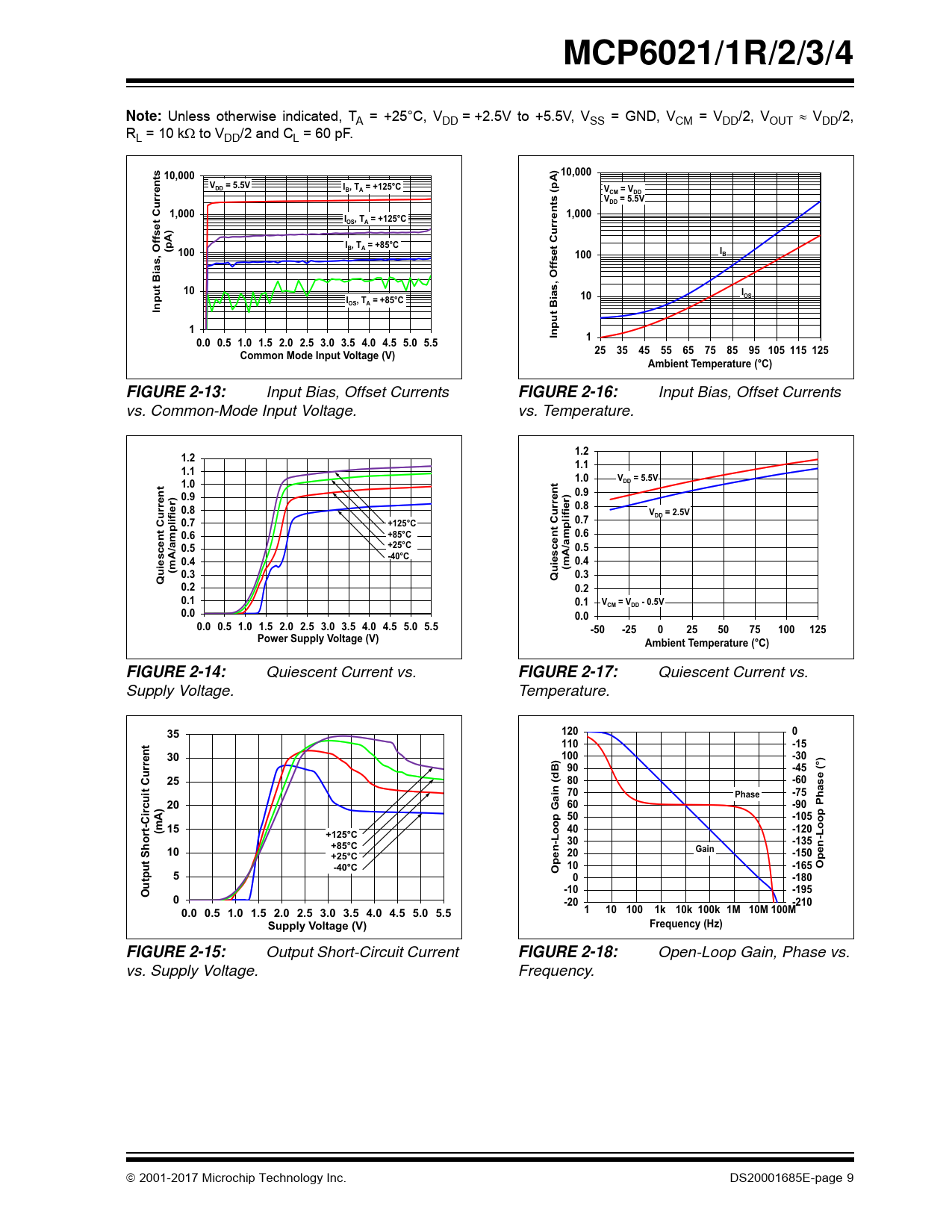

MCP6021/1R/2/3/4. Note:. 10,000. = 5.5V. I , T = +125°C. = V. Currents. 1,000. Currents (pA). (pA). I , T = +85°C. 100. IOS. Input Bias, Offset
Línea de modelo para esta hoja de datos
- MCP6021-E/MS MCP6021-E/P MCP6021-E/SN MCP6021-E/SNVAO MCP6021-E/ST MCP6021-I/P MCP6021-I/SN MCP6021-I/SNVAO MCP6021-I/ST MCP6021T-E/MS MCP6021T-E/OT MCP6021T-E/OTVAO MCP6021T-E/SN MCP6021T-E/ST MCP6021T-I/SN MCP6021T-I/ST
- MCP6022-E/P MCP6022-E/SN MCP6022-E/SNVAO MCP6022-E/ST MCP6022-E/STVAO MCP6022-I/P MCP6022-I/SN MCP6022-I/ST MCP6022T-E/SN MCP6022T-E/SNVAO MCP6022T-E/ST MCP6022T-E/STVAO MCP6022T-I/SN MCP6022T-I/SNVAO MCP6022T-I/ST
Versión de texto del documento
MCP6021/1R/2/3/4 Note:
Unless otherwise indicated, TA = +25°C, VDD = +2.5V to +5.5V, VSS = GND, VCM = VDD/2, VOUT VDD/2, RL = 10 k to VDD/2 and CL = 60 pF.
10,000 10,000 V = 5.5V DD I , T = +125°C B A V = V CM DD V = 5.5V DD Currents 1,000 1,000 I , T = +125°C OS A Currents (pA) (pA) I , T = +85°C 100 B A 100 IB 10 IOS I , T = +85°C 10 OS A Input Bias, Offset 1 Input Bias, Offset 1 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 Common Mode Input Voltage (V) 25 35 45 55 65 75 85 95 105 115 125 Ambient Temperature (°C) FIGURE 2-13:
Input Bias, Offset Currents
FIGURE 2-16:
Input Bias, Offset Currents vs. Common-Mode Input Voltage. vs. Temperature.
1.2 1.2 1.1 1.1 1.0 V = 5.5V 1.0 DD 0.9 0.9 0.8 0.8 V = 2.5V DD 0.7 +125°C 0.7 0.6 +85°C 0.6 0.5 +25°C 0.5 -40°C 0.4 0.4 (mA/amplifier) (mA/amplifier) 0.3 0.3 Quiescent Current Quiescent Current 0.2 0.2 0.1 0.1 V = V - 0.5V CM DD 0.0 0.0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 -50 -25 0 25 50 75 100 125 Power Supply Voltage (V) Ambient Temperature (°C) FIGURE 2-14:
Quiescent Current vs.
FIGURE 2-17:
Quiescent Current vs. Supply Voltage. Temperature.
35 120 0 110 -15 30 100 -30 90 -45 25 80 -60 70 Phase -75 20 60 -90 50 -105 Circuit Current (mA) 15 40 -120 +125°C 30 -135 +85°C 10 Gain +25°C 20 -150 -40°C 10 -165 Open-Loop Phase (°) Open-Loop Gain (dB) 5 0 -180 Output Short -10 -195 0 -20
1.E+00 1.E+01 1.E+02 1.E+03 1.E+04 1.E+05 1.E+06 1.E+07 1.E+08
-210 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 1 100 10 1k 10k 100k 1M 10M 100M Supply Voltage (V) Frequency (Hz) FIGURE 2-15:
Output Short-Circuit Current
FIGURE 2-18:
Open-Loop Gain, Phase vs. vs. Supply Voltage. Frequency. 2001-2017 Microchip Technology Inc. DS20001685E-page 9 Document Outline Features Applications Design Aids Typical Application Description Package Types 1.0 Electrical Characteristics Absolute Maximum Ratings† DC Electrical Characteristics AC Electrical Characteristics MCP6023 Chip Select (CS) Electrical Characteristics Temperature Characteristics FIGURE 1-1: Timing Diagram for the CS Pin on the MCP6023. 1.1 Test Circuits FIGURE 1-2: AC and DC Test Circuit for Most Non-Inverting Gain Conditions. FIGURE 1-3: AC and DC Test Circuit for Most Inverting Gain Conditions. 2.0 Typical Performance Curves FIGURE 2-1: Input Offset Voltage (Industrial Temperature Parts). FIGURE 2-2: Input Offset Voltage (Extended Temperature Parts). FIGURE 2-3: Input Offset Voltage vs. Common-Mode Input Voltage with VDD = 2.5V. FIGURE 2-4: Input Offset Voltage Drift (Industrial Temperature Parts). FIGURE 2-5: Input Offset Voltage Drift (Extended Temperature Parts). FIGURE 2-6: Input Offset Voltage vs. Common-Mode Input Voltage with VDD = 5.5V. FIGURE 2-7: Input Offset Voltage vs. Temperature. FIGURE 2-8: Input Noise Voltage Density vs. Frequency. FIGURE 2-9: CMRR, PSRR vs. Frequency. FIGURE 2-10: Input Offset Voltage vs. Output Voltage. FIGURE 2-11: Input Noise Voltage Density vs. Common-Mode Input Voltage. FIGURE 2-12: CMRR, PSRR vs. Temperature. FIGURE 2-13: Input Bias, Offset Currents vs. Common-Mode Input Voltage. FIGURE 2-14: Quiescent Current vs. Supply Voltage. FIGURE 2-15: Output Short-Circuit Current vs. Supply Voltage. FIGURE 2-16: Input Bias, Offset Currents vs. Temperature. FIGURE 2-17: Quiescent Current vs. Temperature. FIGURE 2-18: Open-Loop Gain, Phase vs. Frequency. FIGURE 2-19: DC Open-Loop Gain vs. Load Resistance. FIGURE 2-20: Small Signal DC Open-Loop Gain vs. Output Voltage Headroom. FIGURE 2-21: Gain Bandwidth Product, Phase Margin vs. Temperature. FIGURE 2-22: DC Open-Loop Gain vs. Temperature. FIGURE 2-23: Gain Bandwidth Product, Phase Margin vs. Common-Mode Input Voltage. FIGURE 2-24: Gain Bandwidth Product, Phase Margin vs. Output Voltage. FIGURE 2-25: Slew Rate vs. Temperature. FIGURE 2-26: Total Harmonic Distortion plus Noise vs. Output Voltage with f = 1 kHz. FIGURE 2-27: The MCP6021/1R/2/3/4 Family Shows No Phase Reversal Under Overdrive. FIGURE 2-28: Maximum Output Voltage Swing vs. Frequency. FIGURE 2-29: Total Harmonic Distortion plus Noise vs. Output Voltage with f = 20 kHz. FIGURE 2-30: Channel-to-Channel Separation vs. Frequency (MCP6022 and MCP6024 only). FIGURE 2-31: Output Voltage Headroom vs. Output Current. FIGURE 2-32: Small Signal Non-Inverting Pulse Response. FIGURE 2-33: Large Signal Non-Inverting Pulse Response. FIGURE 2-34: Output Voltage Headroom vs. Temperature. FIGURE 2-35: Small Signal Inverting Pulse Response. FIGURE 2-36: Large Signal Inverting Pulse Response. FIGURE 2-37: VREF Accuracy vs. Supply Voltage (MCP6021 and MCP6023 only). FIGURE 2-38: Chip Select (CS) Hysteresis (MCP6023 only) with VDD = 2.5V. FIGURE 2-39: Chip Select (CS) to Amplifier Output Response Time (MCP6023 Only). FIGURE 2-40: VREF Accuracy vs. Temperature (MCP6021 and MCP6023 only). FIGURE 2-41: Chip Select (CS) Hysteresis (MCP6023 only) with VDD = 5.5V. FIGURE 2-42: Measured Input Current vs. Input Voltage (Below VSS) 3.0 Pin Descriptions TABLE 3-1: Pin Function Table 3.1 Analog Outputs 3.2 Analog Inputs 3.3 Reference Voltage (VREF) MCP6021 and MCP6023 3.4 Chip Select Digital Input (CS) 3.5 Power Supply (VSS and VDD) 4.0 Applications Information 4.1 Rail-to-Rail Input 4.1.1 Phase Reversal 4.1.2 Input Voltage Limits FIGURE 4-1: Simplified Analog Input ESD Structures. FIGURE 4-2: Protecting the Analog Inputs. 4.1.3 Input Current Limits FIGURE 4-3: Protecting the Analog Inputs. 4.1.4 Normal Operation 4.2 Rail-to-Rail Output 4.3 Capacitive Loads FIGURE 4-4: Output Resistor, RISO, Stabilizes Large Capacitive Loads. FIGURE 4-5: Recommended RISO Values for Capacitive Loads. 4.4 Gain Peaking FIGURE 4-6: Non-Inverting Gain Circuit with Parasitic Capacitance. FIGURE 4-7: Non-Inverting Gain Circuit with Parasitic Capacitance. 4.5 MCP6023 Chip Select (CS) 4.6 MCP6021 and MCP6023 Reference Voltage FIGURE 4-8: Simplified Internal VREF Circuit (MCP6021 and MCP6023 only). FIGURE 4-9: Non-Inverting Gain Circuit Using VREF (MCP6021 and MCP6023 only). FIGURE 4-10: Inverting Gain Circuit Using VREF (MCP6021 and MCP6023 only). 4.7 Supply Bypass 4.8 Unused Operational Amplifiers FIGURE 4-11: Unused Operational Amplifiers. 4.9 PCB Surface Leakage FIGURE 4-12: Example Guard Ring Layout. 4.10 High-Speed PCB Layout 4.11 Typical Applications 4.11.1 A/D Converter Driver and Anti-Aliasing Filter FIGURE 4-13: A/D Converter Driver and Anti-Aliasing Filter with a 20 kHz Cutoff Frequency. 4.11.2 Optical Detector Amplifier FIGURE 4-14: Transimpedance Amplifier for an Optical Detector. 5.0 Design Aids 5.1 SPICE Macro Model 5.2 FilterLab® Software 5.3 MPLAB® Mindi™ Analog Simulator 5.4 Microchip Advanced Part Selector (MAPS) 5.5 Analog Demonstration and Evaluation Boards 5.6 Application Notes 6.0 Packaging Information 6.1 Package Marking Information Package Marking Information (Continued) Package Marking Information (Continued) APPENDIX A: Revision History Revision E (January 2017) Revision D (February 2009) Revision C (December 2005) Revision B (November 2003) Revision A (November 2001) Product Identification System Worldwide Sales and Service
