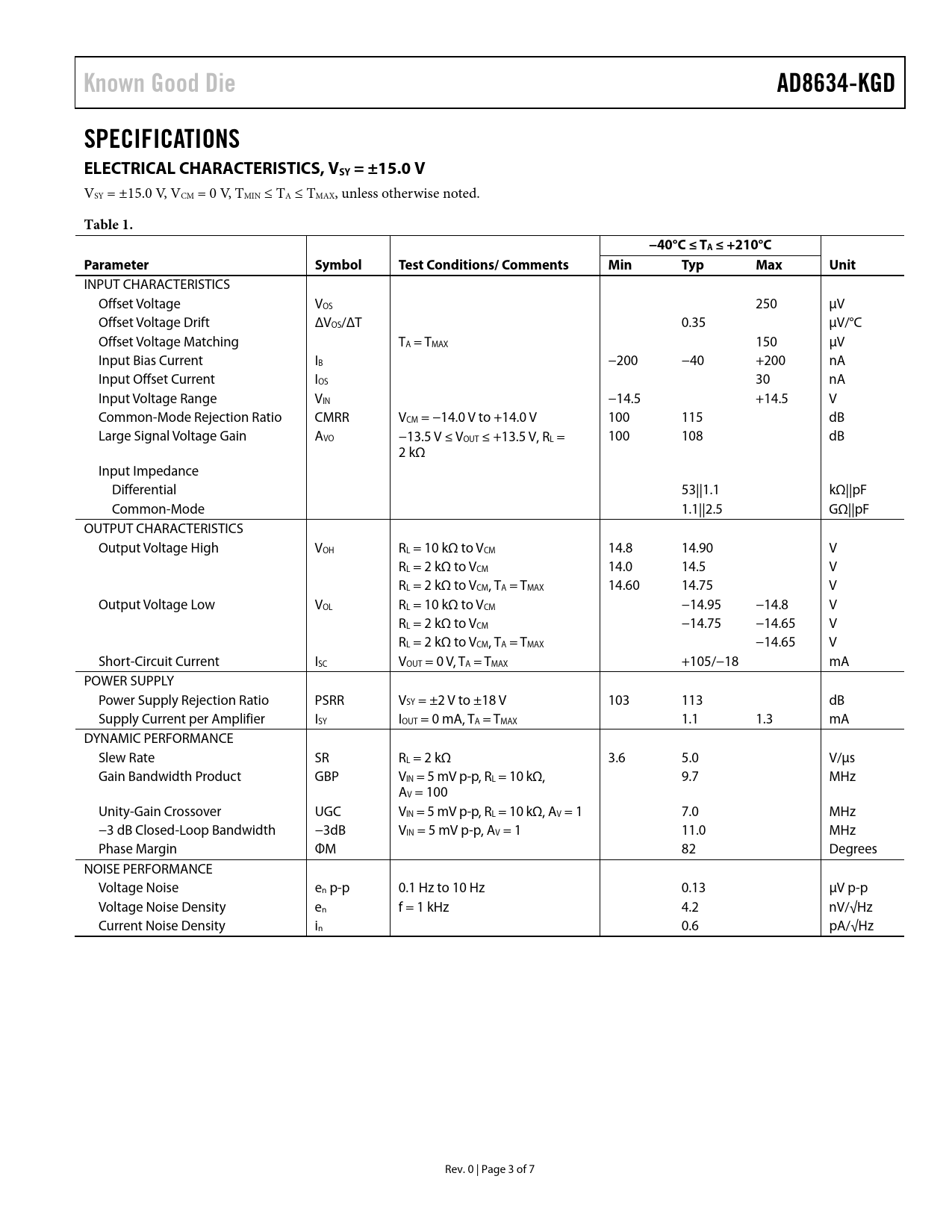

Known Good Die AD8634-KGD SPECIFICATIONS ELECTRICAL CHARACTERISTICS, VSY = ±15.0 V
VSY = ±15.0 V, VCM = 0 V, TMIN ≤ TA ≤ TMAX, unless otherwise noted.
Table 1. −40°C ≤ TA ≤ +210°C Parameter Symbol Test Conditions/ Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 250 μV Offset Voltage Drift ΔVOS/ΔT 0.35 μV/°C Offset Voltage Matching TA = TMAX 150 μV Input Bias Current IB −200 −40 +200 nA Input Offset Current IOS 30 nA Input Voltage Range VIN −14.5 +14.5 V Common-Mode Rejection Ratio CMRR VCM = −14.0 V to +14.0 V 100 115 dB Large Signal Voltage Gain AVO −13.5 V ≤ VOUT ≤ +13.5 V, RL = 100 108 dB 2 kΩ Input Impedance Differential 53||1.1 kΩ||pF Common-Mode 1.1||2.5 GΩ||pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 10 kΩ to VCM 14.8 14.90 V RL = 2 kΩ to VCM 14.0 14.5 V RL = 2 kΩ to VCM, TA = TMAX 14.60 14.75 V Output Voltage Low VOL RL = 10 kΩ to VCM −14.95 −14.8 V RL = 2 kΩ to VCM −14.75 −14.65 V RL = 2 kΩ to VCM, TA = TMAX −14.65 V Short-Circuit Current ISC VOUT = 0 V, TA = TMAX +105/−18 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±2 V to ±18 V 103 113 dB Supply Current per Amplifier ISY IOUT = 0 mA, TA = TMAX 1.1 1.3 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ 3.6 5.0 V/µs Gain Bandwidth Product GBP VIN = 5 mV p-p, RL = 10 kΩ, 9.7 MHz AV = 100 Unity-Gain Crossover UGC VIN = 5 mV p-p, RL = 10 kΩ, AV = 1 7.0 MHz −3 dB Closed-Loop Bandwidth −3dB VIN = 5 mV p-p, AV = 1 11.0 MHz Phase Margin ΦM 82 Degrees NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.13 µV p-p Voltage Noise Density en f = 1 kHz 4.2 nV/√Hz Current Noise Density in 0.6 pA/√Hz Rev. 0 | Page 3 of 7 Document Outline Features Applications Metal Mask Die Image General Description Table of Contents Revision History Specifications Electrical Characteristics, VSY = ±15.0 V Electrical Characteristics, VSY = 5.0 V Absolute Maximum Ratings ESD Caution Pad Configuration And Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
