LTC4418
ELECTRICAL CHARACTERISTICS The
l

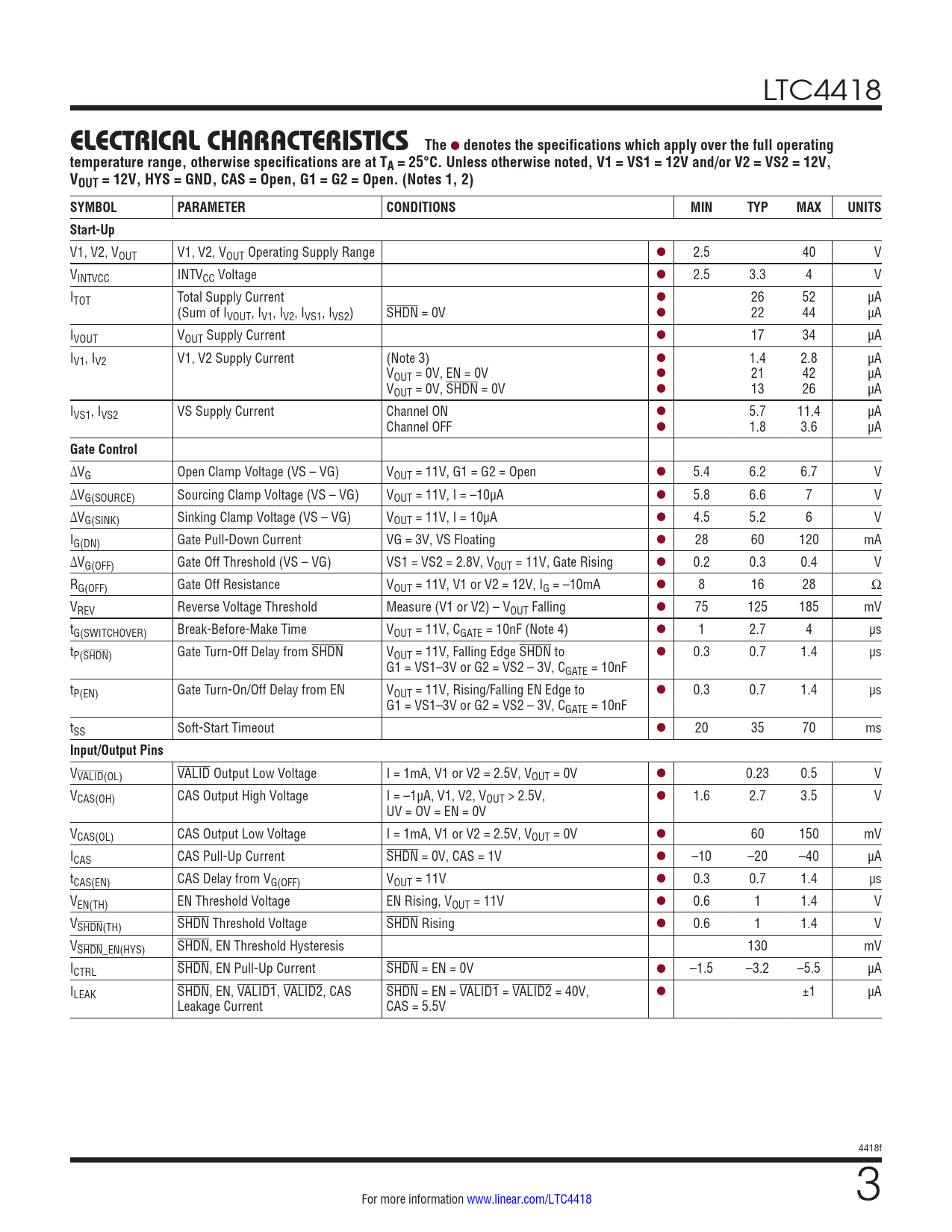

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, V1 = VS1 = 12V and/or V2 = VS2 = 12V, VOUT = 12V, HYS = GND, CAS = Open, G1 = G2 = Open. (Notes 1, 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Start-Up
V1, V2, VOUT V1, V2, VOUT Operating Supply Range l 2.5 40 V VINTVCC INTVCC Voltage l 2.5 3.3 4 V ITOT Total Supply Current l 26 52 µA (Sum of IVOUT, IV1, IV2, IVS1, IVS2) SHDN = 0V l 22 44 µA IVOUT VOUT Supply Current l 17 34 µA IV1, IV2 V1, V2 Supply Current (Note 3) l 1.4 2.8 µA VOUT = 0V, EN = 0V l 21 42 µA VOUT = 0V, SHDN = 0V l 13 26 µA IVS1, IVS2 VS Supply Current Channel ON l 5.7 11.4 µA Channel OFF l 1.8 3.6 µA
