Datasheet AD8314 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | RF Detector / Controller, 100 MHz TO 2.7 GHz, 45 dB |
| Páginas / Página | 21 / 5 — AD8314. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Value. ESD CAUTION |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 440 Kb |
| Idioma del documento | Inglés |
AD8314. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Value. ESD CAUTION
Línea de modelo para esta hoja de datos
AD8314
Versión de texto del documento

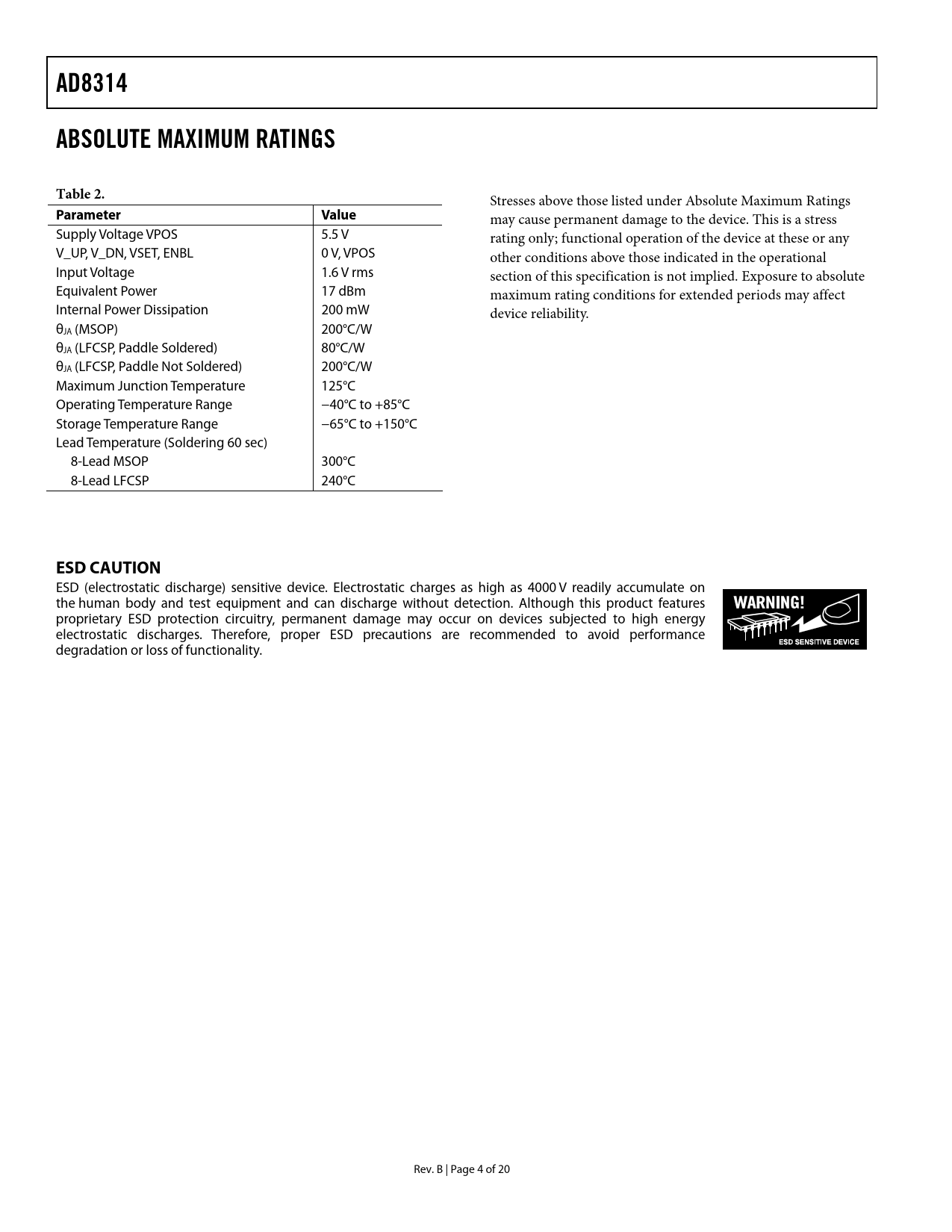

AD8314 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Value
may cause permanent damage to the device. This is a stress Supply Voltage VPOS 5.5 V rating only; functional operation of the device at these or any V_UP, V_DN, VSET, ENBL 0 V, VPOS other conditions above those indicated in the operational Input Voltage 1.6 V rms section of this specification is not implied. Exposure to absolute Equivalent Power 17 dBm maximum rating conditions for extended periods may affect Internal Power Dissipation 200 mW device reliability. θJA (MSOP) 200°C/W θJA (LFCSP, Paddle Soldered) 80°C/W θJA (LFCSP, Paddle Not Soldered) 200°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 8-Lead MSOP 300°C 8-Lead LFCSP 240°C
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. B | Page 4 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INVERTED OUTPUT APPLICATIONS BASIC CONNECTIONS TRANSFER FUNCTION IN TERMS OF SLOPE AND INTERCEPT dBV VS. dBm FILTER CAPACITOR OPERATING IN CONTROLLER MODE POWER-ON AND ENABLE GLITCH INPUT COUPLING OPTIONS INCREASING THE LOGARITHMIC SLOPE IN MEASUREMENT MODE EFFECT OF WAVEFORM TYPE ON INTERCEPT MOBILE HANDSET POWER CONTROL EXAMPLES OPERATION AT 2.7 GHz USING THE LFCSP PACKAGE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
