Data Sheet AD8319 TYPICAL PERFORMANCE CHARACTERISTICS

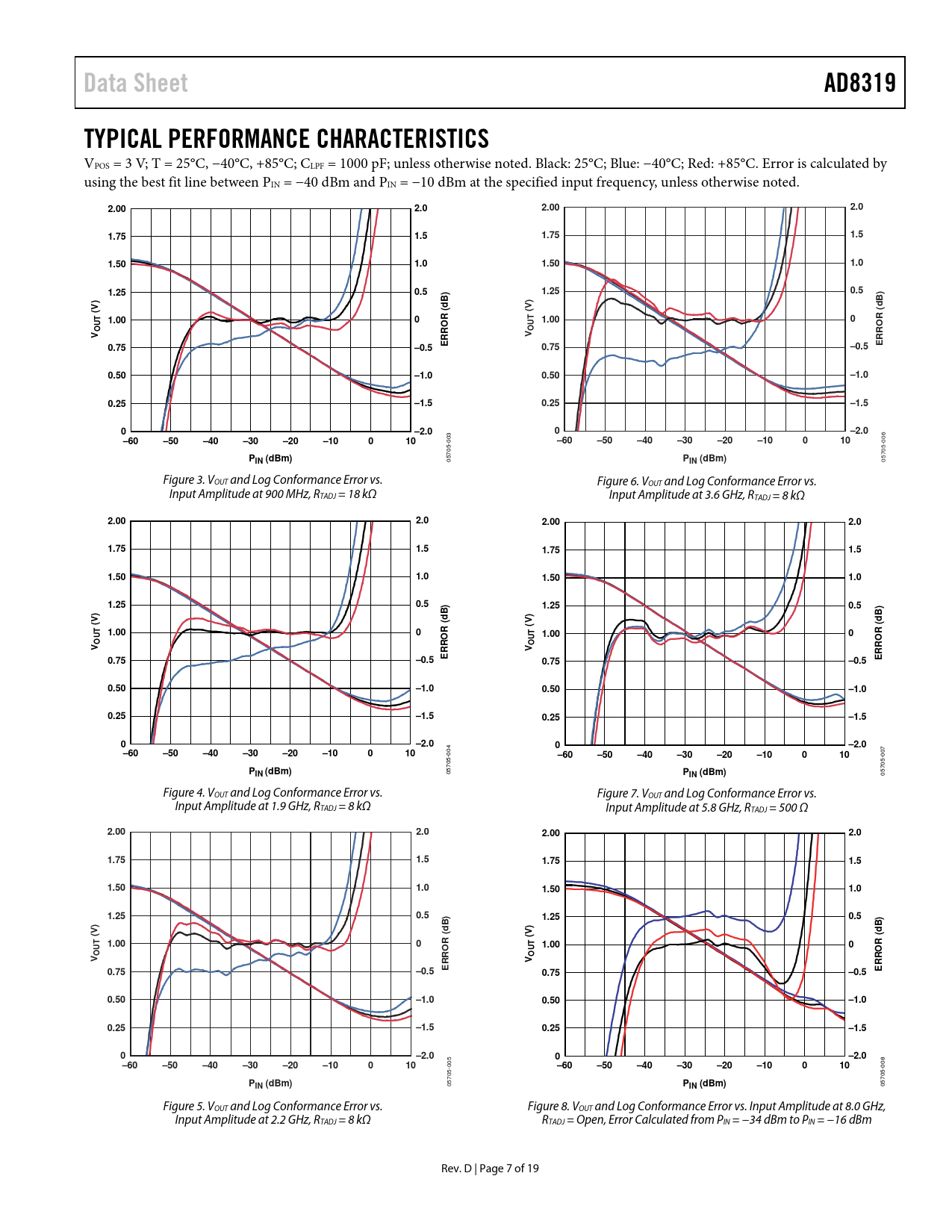

VPOS = 3 V; T = 25°C, −40°C, +85°C; CLPF = 1000 pF; unless otherwise noted. Black: 25°C; Blue: −40°C; Red: +85°C. Error is calculated by using the best fit line between PIN = −40 dBm and PIN = −10 dBm at the specified input frequency, unless otherwise noted.
