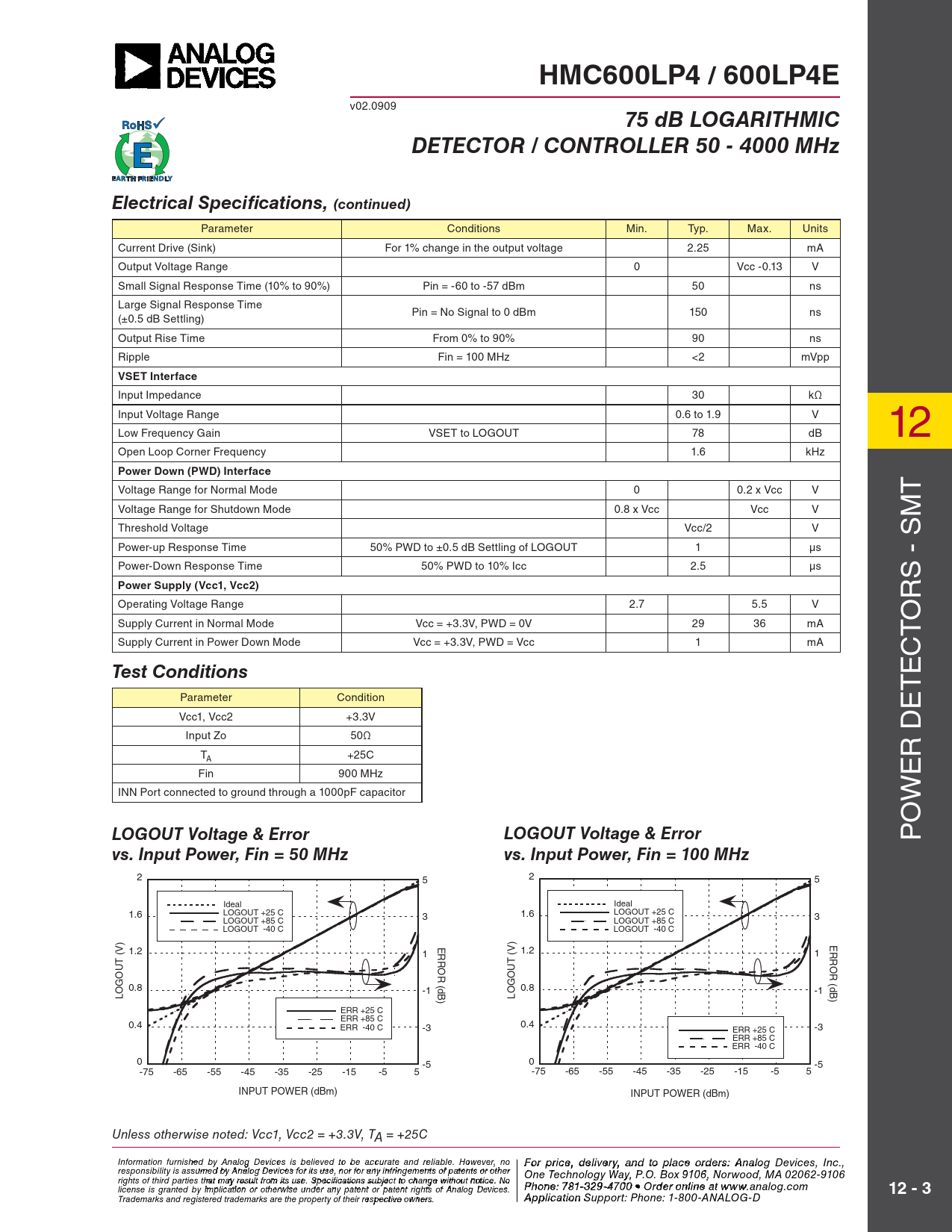

HMC600LP4 / 600LP4E. 75 dB LOGARITHMIC. DETECTOR / CONTROLLER 50 - 4000 MHz. Electrical Specifi cations, (continued)

HMC600LP4 / 600LP4E 75 dB LOGARITHMIC DETECTOR / CONTROLLER 50 - 4000 MHz Electrical Specifi cations, (continued)

Línea de modelo para esta hoja de datos

Versión de texto del documento

HMC600LP4 / 600LP4E
v02.0909
75 dB LOGARITHMIC DETECTOR / CONTROLLER 50 - 4000 MHz Electrical Specifi cations, (continued)
Parameter Conditions Min. Typ. Max. Units Current Drive (Sink) For 1% change in the output voltage 2.25 mA Output Voltage Range 0 Vcc -0.13 V Small Signal Response Time (10% to 90%) Pin = -60 to -57 dBm 50 ns Large Signal Response Time Pin = No Signal to 0 dBm 150 ns (±0.5 dB Settling) Output Rise Time From 0% to 90% 90 ns Ripple Fin = 100 MHz <2 mVpp
VSET Interface
Input Impedance 30 kΩ Input Voltage Range 0.6 to 1.9 V Low Frequency Gain VSET to LOGOUT 78 dB 12 Open Loop Corner Frequency 1.6 kHz
Power Down (PWD) Interface
Voltage Range for Normal Mode 0 0.2 x Vcc V T Voltage Range for Shutdown Mode 0.8 x Vcc Vcc V Threshold Voltage Vcc/2 V Power-up Response Time 50% PWD to ±0.5 dB Settling of LOGOUT 1 μs Power-Down Response Time 50% PWD to 10% Icc 2.5 μs S - SM
Power Supply (Vcc1, Vcc2)
R Operating Voltage Range 2.7 5.5 V O Supply Current in Normal Mode Vcc = +3.3V, PWD = 0V 29 36 mA T Supply Current in Power Down Mode Vcc = +3.3V, PWD = Vcc 1 mA C E
Test Conditions
T Parameter Condition E Vcc1, Vcc2 +3.3V Input Zo 50Ω T +25C A R D Fin 900 MHz E INN Port connected to ground through a 1000pF capacitor W O
LOGOUT Voltage & Error LOGOUT Voltage & Error
P
vs. Input Power, Fin = 50 MHz vs. Input Power, Fin = 100 MHz
2 5 2 5 Ideal Ideal 1.6 LOGOUT +25 C 3 1.6 LOGOUT +25 C LOGOUT +85 C 3 LOGOUT +85 C LOGOUT -40 C LOGOUT -40 C ERROR (dB) ERROR (dB) 1.2 1 1.2 1 0.8 -1 0.8 -1 LOGOUT (V) LOGOUT (V) ERR +25 C ERR +85 C 0.4 ERR -40 C -3 0.4 ERR +25 C -3 ERR +85 C ERR -40 C 0 -5 0 -5 -75 -65 -55 -45 -35 -25 -15 -5 5 -75 -65 -55 -45 -35 -25 -15 -5 5 INPUT POWER (dBm) INPUT POWER (dBm) Unless otherwise noted: Vcc1, Vcc2 = +3.3V, TA = +25C Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
12 - 3
Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
