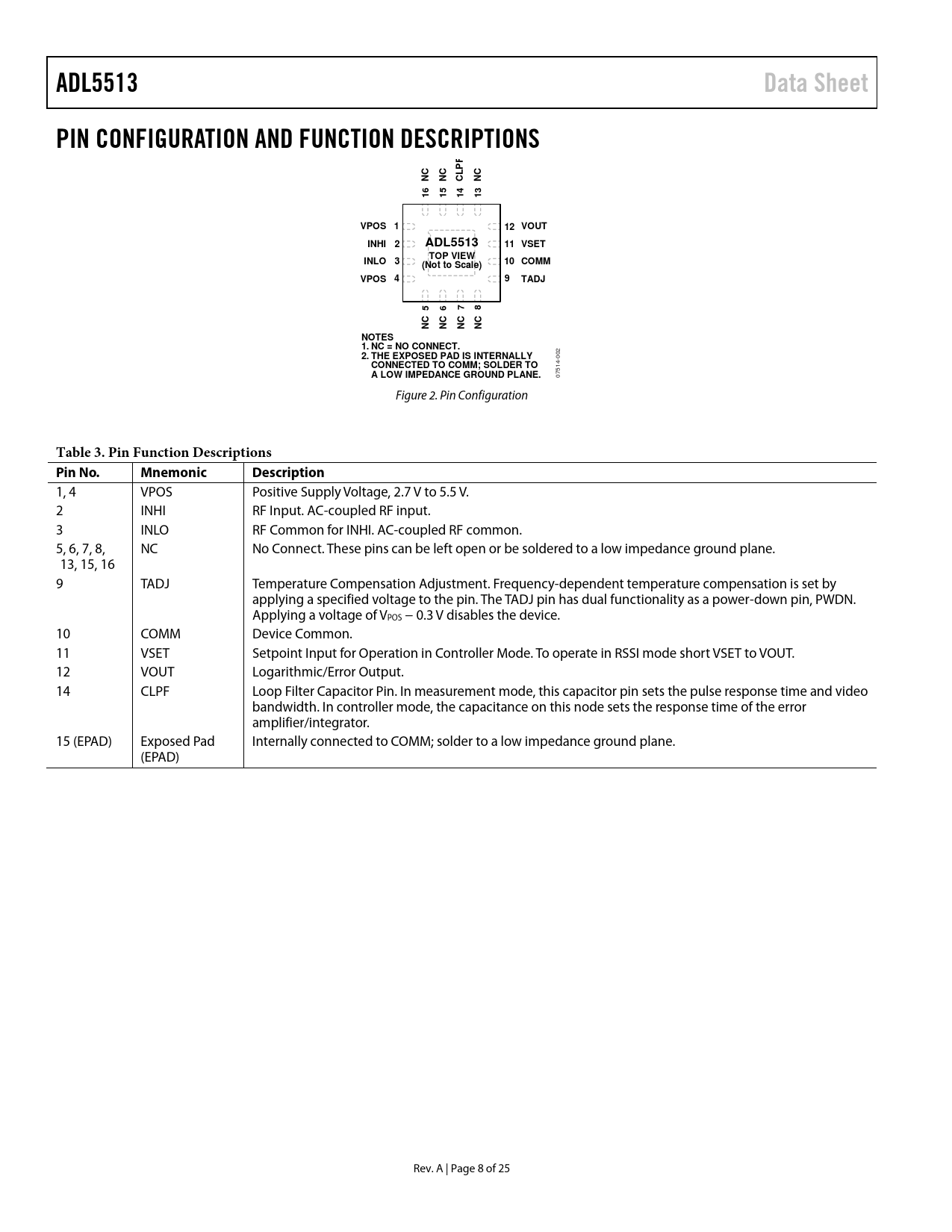

ADL5513. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. F P. VPOS 1. 12 VOUT. INHI. 11 VSET. TOP VIEW. INLO 3. 10 COMM
Versión de texto del documento
ADL5513 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS F P NC NC CL NC 16 15 14 13 VPOS 1 12 VOUT INHI 2 ADL5513 11 VSET TOP VIEW INLO 3 10 COMM (Not to Scale) VPOS 4 9 TADJ 5 6 7 8 NC NC NC NC NOTES 1. NC = NO CONNECT. 2. THE EXPOSED PAD IS INTERNALLY
002
CONNECTED TO COMM; SOLDER TO A LOW IMPEDANCE GROUND PLANE.
07514- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1, 4 VPOS Positive Supply Voltage, 2.7 V to 5.5 V. 2 INHI RF Input. AC-coupled RF input. 3 INLO RF Common for INHI. AC-coupled RF common. 5, 6, 7, 8, NC No Connect. These pins can be left open or be soldered to a low impedance ground plane. 13, 15, 16 9 TADJ Temperature Compensation Adjustment. Frequency-dependent temperature compensation is set by applying a specified voltage to the pin. The TADJ pin has dual functionality as a power-down pin, PWDN. Applying a voltage of VPOS − 0.3 V disables the device. 10 COMM Device Common. 11 VSET Setpoint Input for Operation in Controller Mode. To operate in RSSI mode short VSET to VOUT. 12 VOUT Logarithmic/Error Output. 14 CLPF Loop Filter Capacitor Pin. In measurement mode, this capacitor pin sets the pulse response time and video bandwidth. In controller mode, the capacitance on this node sets the response time of the error amplifier/integrator. 15 (EPAD) Exposed Pad Internally connected to COMM; solder to a low impedance ground plane. (EPAD) Rev. A | Page 8 of 25 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Basic Connections Input Signal Coupling Output Filtering Output Interface Setpoint Interface Description of Characterization Error Calculations Adjusting Accuracy Through Choice of Calibration Points Temperature Compensation of Output Voltage Device Calibration Power-Down Functionality Measurement Mode Setting the Output Slope in Measurement Mode Controller Mode Constant Power Operation Increasing the Dynamic Range of the ADL5513 Evaluation Board Outline Dimensions Ordering Guide
