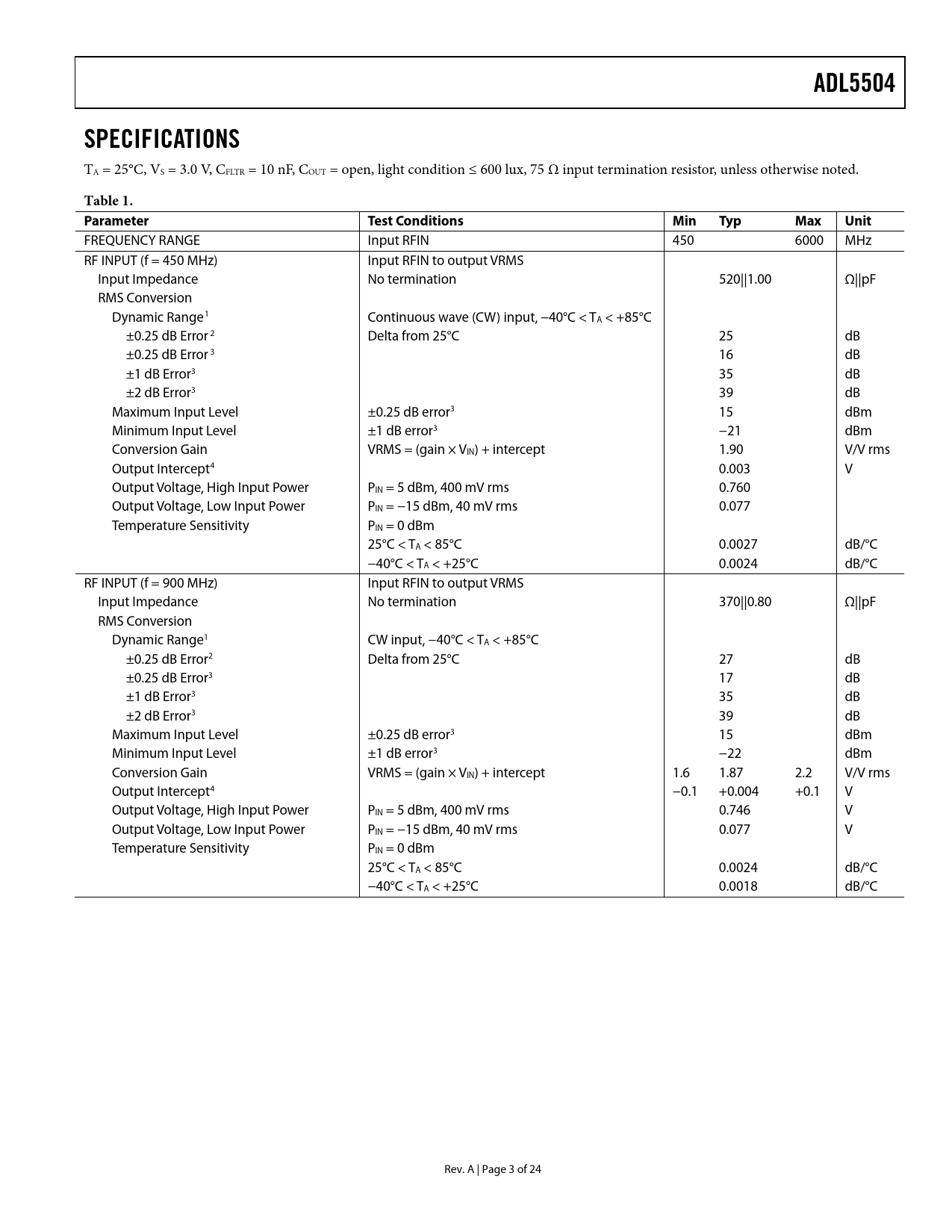

ADL5504 SPECIFICATIONS
TA = 25°C, VS = 3.0 V, CFLTR = 10 nF, COUT = open, light condition ≤ 600 lux, 75 Ω input termination resistor, unless otherwise noted.
Table 1. Parameter Test Conditions Min Typ Max Unit
FREQUENCY RANGE Input RFIN 450 6000 MHz RF INPUT (f = 450 MHz) Input RFIN to output VRMS Input Impedance No termination 520||1.00 Ω||pF RMS Conversion Dynamic Range1 Continuous wave (CW) input, −40°C < TA < +85°C ±0.25 dB Error 2 Delta from 25°C 25 dB ±0.25 dB Error 3 16 dB ±1 dB Error3 35 dB ±2 dB Error3 39 dB Maximum Input Level ±0.25 dB error3 15 dBm Minimum Input Level ±1 dB error3 −21 dBm Conversion Gain VRMS = (gain × VIN) + intercept 1.90 V/V rms Output Intercept4 0.003 V Output Voltage, High Input Power PIN = 5 dBm, 400 mV rms 0.760 Output Voltage, Low Input Power PIN = −15 dBm, 40 mV rms 0.077 Temperature Sensitivity PIN = 0 dBm 25°C < TA < 85°C 0.0027 dB/°C −40°C < TA < +25°C 0.0024 dB/°C RF INPUT (f = 900 MHz) Input RFIN to output VRMS Input Impedance No termination 370||0.80 Ω||pF RMS Conversion Dynamic Range1 CW input, −40°C < TA < +85°C ±0.25 dB Error2 Delta from 25°C 27 dB ±0.25 dB Error3 17 dB ±1 dB Error3 35 dB ±2 dB Error3 39 dB Maximum Input Level ±0.25 dB error3 15 dBm Minimum Input Level ±1 dB error3 −22 dBm Conversion Gain VRMS = (gain × VIN) + intercept 1.6 1.87 2.2 V/V rms Output Intercept4 −0.1 +0.004 +0.1 V Output Voltage, High Input Power PIN = 5 dBm, 400 mV rms 0.746 V Output Voltage, Low Input Power PIN = −15 dBm, 40 mV rms 0.077 V Temperature Sensitivity PIN = 0 dBm 25°C < TA < 85°C 0.0024 dB/°C −40°C < TA < +25°C 0.0018 dB/°C Rev. A | Page 3 of 24 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description RMS Circuit Description and Filtering Filtering Output Buffer Applications Information Basic Connections RF Input Interfacing Resistive Tap RF Input Multiple RF Inputs Linearity Output Swing Output Offset Output Drive Capability and Buffering Selecting the Square-Domain Filter and Output Low-Pass Filter Power Consumption, Enable, and Power-On/Power-Off Response Time Device Calibration and Error Calculation Calibration for Improved Accuracy Drift over a Reduced Temperature Range Device Handling Evaluation Board Land Pattern and Soldering Information Outline Dimensions Ordering Guide
