HMC913LC4B. SUCCESSIVE DETECTION LOG VIDEO. AMPLIFIER (SDLVA), 0.6 - 20 GHz. Pin Descriptions
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC913LC4B
v05.0614

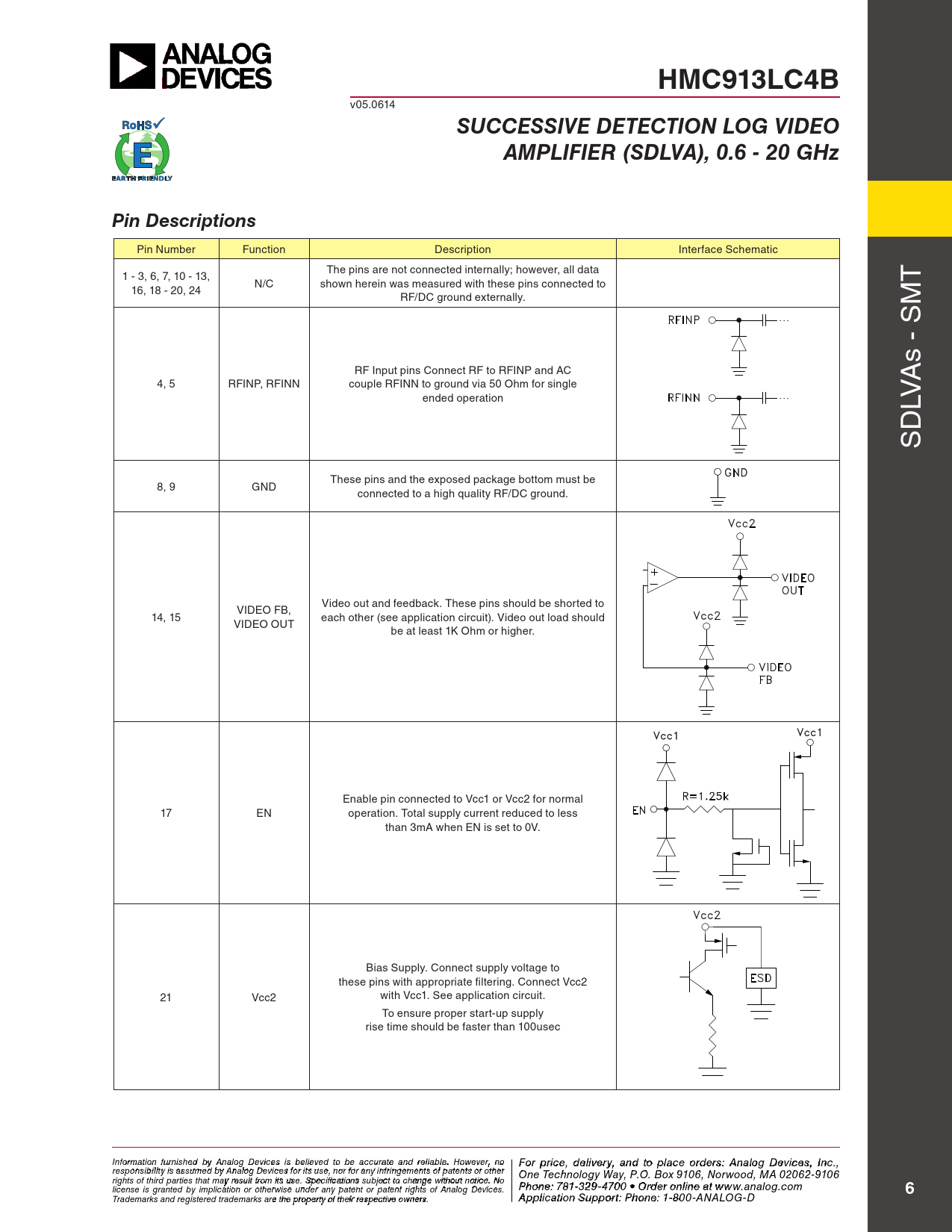

SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA), 0.6 - 20 GHz Pin Descriptions
Pin Number Function Description Interface Schematic The pins are not connected internally; however, all data 1 - 3, 6, 7, 10 - 13, N/C shown herein was measured with these pins connected to T 16, 18 - 20, 24 RF/DC ground externally. M S - RF Input pins Connect RF to RFINP and AC As 4, 5 RFINP, RFINN couple RFINN to ground via 50 Ohm for single ended operation LV SD These pins and the exposed package bottom must be 8, 9 GND connected to a high quality RF/DC ground. Video out and feedback. These pins should be shorted to VIDEO FB, 14, 15 each other (see application circuit). Video out load should VIDEO OUT be at least 1K Ohm or higher. Enable pin connected to Vcc1 or Vcc2 for normal 17 EN operation. Total supply current reduced to less than 3mA when EN is set to 0V. Bias Supply. Connect supply voltage to these pins with appropriate filtering. Connect Vcc2 21 Vcc2 with Vcc1. See application circuit. To ensure proper start-up supply rise time should be faster than 100usec Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
6
Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
