HMC948LP3E
v02.0913

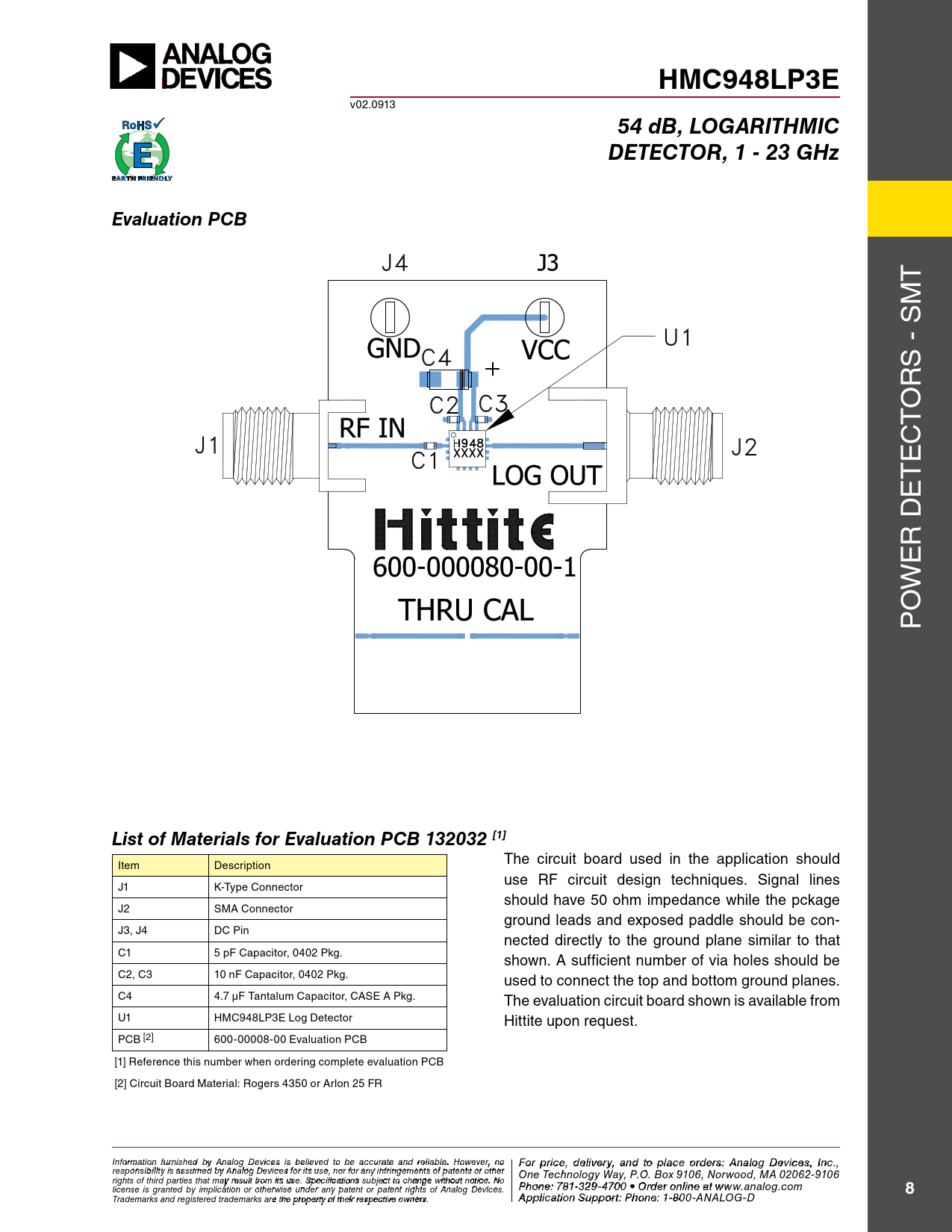

54 dB, LOGARITHMIC DETECTOR, 1 - 23 GHz Evaluation PCB
T M S - RS O T C TE E D R WE O P
List of Materials for Evaluation PCB 132032 [1]
The circuit board used in the application should Item Description use RF circuit design techniques. Signal lines J1 K-Type Connector should have 50 ohm impedance while the pckage J2 SMA Connector ground leads and exposed paddle should be con- J3, J4 DC Pin nected directly to the ground plane similar to that C1 5 pF Capacitor, 0402 Pkg. shown. A sufficient number of via holes should be C2, C3 10 nF Capacitor, 0402 Pkg. used to connect the top and bottom ground planes. C4 4.7 µF Tantalum Capacitor, CASE A Pkg. The evaluation circuit board shown is available from U1 HMC948LP3E Log Detector Hittite upon request. PCB [2] 600-00008-00 Evaluation PCB [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Rogers 4350 or Arlon 25 FR Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
