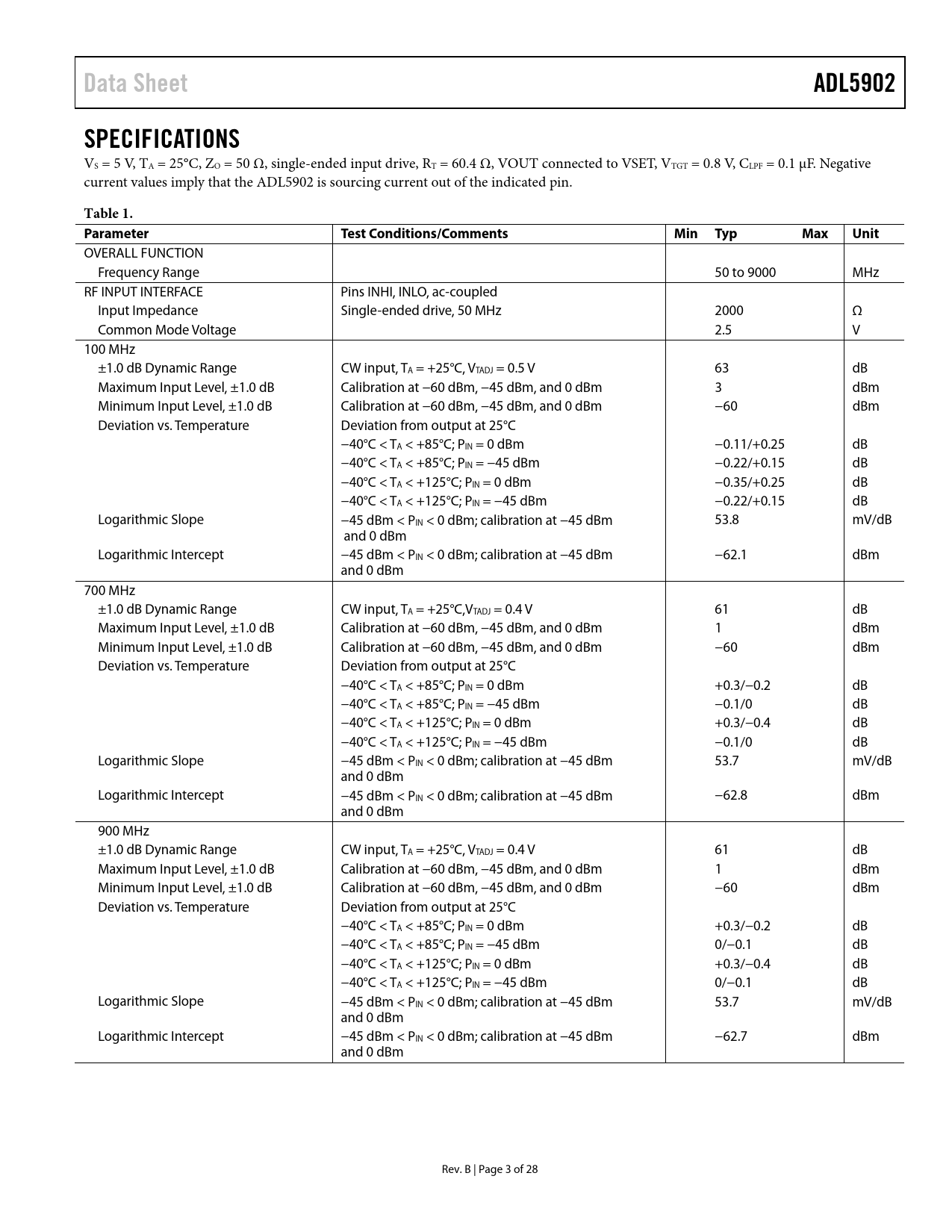

Data Sheet ADL5902 SPECIFICATIONS
VS = 5 V, TA = 25°C, ZO = 50 Ω, single-ended input drive, RT = 60.4 Ω, VOUT connected to VSET, VTGT = 0.8 V, CLPF = 0.1 μF. Negative current values imply that the ADL5902 is sourcing current out of the indicated pin.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 50 to 9000 MHz RF INPUT INTERFACE Pins INHI, INLO, ac-coupled Input Impedance Single-ended drive, 50 MHz 2000 Ω Common Mode Voltage 2.5 V 100 MHz ±1.0 dB Dynamic Range CW input, TA = +25°C, VTADJ = 0.5 V 63 dB Maximum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm 3 dBm Minimum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm −60 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 0 dBm −0.11/+0.25 dB −40°C < TA < +85°C; PIN = −45 dBm −0.22/+0.15 dB −40°C < TA < +125°C; PIN = 0 dBm −0.35/+0.25 dB −40°C < TA < +125°C; PIN = −45 dBm −0.22/+0.15 dB Logarithmic Slope −45 dBm < PIN < 0 dBm; calibration at −45 dBm 53.8 mV/dB and 0 dBm Logarithmic Intercept −45 dBm < PIN < 0 dBm; calibration at −45 dBm −62.1 dBm and 0 dBm 700 MHz ±1.0 dB Dynamic Range CW input, TA = +25°C,VTADJ = 0.4 V 61 dB Maximum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm 1 dBm Minimum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm −60 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 0 dBm +0.3/−0.2 dB −40°C < TA < +85°C; PIN = −45 dBm −0.1/0 dB −40°C < TA < +125°C; PIN = 0 dBm +0.3/−0.4 dB −40°C < TA < +125°C; PIN = −45 dBm −0.1/0 dB Logarithmic Slope −45 dBm < PIN < 0 dBm; calibration at −45 dBm 53.7 mV/dB and 0 dBm Logarithmic Intercept −45 dBm < PIN < 0 dBm; calibration at −45 dBm −62.8 dBm and 0 dBm 900 MHz ±1.0 dB Dynamic Range CW input, TA = +25°C, VTADJ = 0.4 V 61 dB Maximum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm 1 dBm Minimum Input Level, ±1.0 dB Calibration at −60 dBm, −45 dBm, and 0 dBm −60 dBm Deviation vs. Temperature Deviation from output at 25°C −40°C < TA < +85°C; PIN = 0 dBm +0.3/−0.2 dB −40°C < TA < +85°C; PIN = −45 dBm 0/−0.1 dB −40°C < TA < +125°C; PIN = 0 dBm +0.3/−0.4 dB −40°C < TA < +125°C; PIN = −45 dBm 0/−0.1 dB Logarithmic Slope −45 dBm < PIN < 0 dBm; calibration at −45 dBm 53.7 mV/dB and 0 dBm Logarithmic Intercept −45 dBm < PIN < 0 dBm; calibration at −45 dBm −62.7 dBm and 0 dBm Rev. B | Page 3 of 28 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SQUARE LAW DETECTOR AND AMPLITUDE TARGET RF INPUT INTERFACE SMALL SIGNAL LOOP RESPONSE TEMPERATURE SENSOR INTERFACE VREF INTERFACE TEMPERATURE COMPENSATION INTERFACE POWER-DOWN INTERFACE VSET INTERFACE OUTPUT INTERFACE VTGT INTERFACE BASIS FOR ERROR CALCULATIONS MEASUREMENT MODE BASIC CONNECTIONS SETTING VTADJ SETTING VTGT CHOOSING A VALUE FOR CLPF OUTPUT VOLTAGE SCALING SYSTEM CALIBRATION AND ERROR CALCULATION HIGH FREQUENCY PERFORMANCE LOW FREQUENCY PERFORMANCE DESCRIPTION OF CHARACTERIZATION EVALUATION BOARD SCHEMATICS AND ARTWORK ASSEMBLY DRAWINGS OUTLINE DIMENSIONS ORDERING GUIDE
