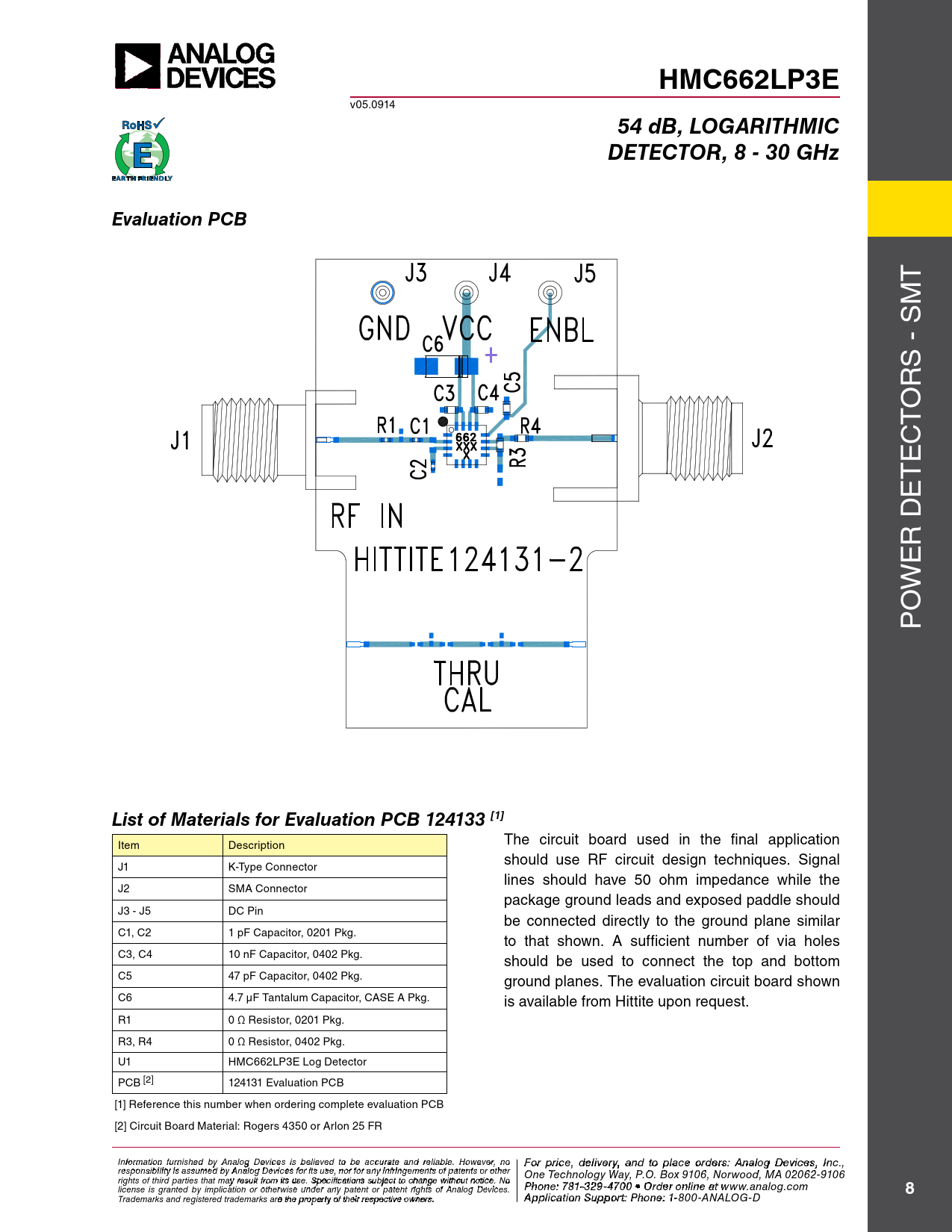

HMC662LP3E
v05.0914
54 dB, LOGARITHMIC DETECTOR, 8 - 30 GHz Evaluation PCB
T M S - RS O T C TE E D R WE O P
List of Materials for Evaluation PCB 124133 [1]
The circuit board used in the final application Item Description should use RF circuit design techniques. Signal J1 K-Type Connector lines should have 50 ohm impedance while the J2 SMA Connector package ground leads and exposed paddle should J3 - J5 DC Pin be connected directly to the ground plane similar C1, C2 1 pF Capacitor, 0201 Pkg. to that shown. A sufficient number of via holes C3, C4 10 nF Capacitor, 0402 Pkg. should be used to connect the top and bottom C5 47 pF Capacitor, 0402 Pkg. ground planes. The evaluation circuit board shown C6 4.7 µF Tantalum Capacitor, CASE A Pkg. is available from Hittite upon request. R1 0 Ω Resistor, 0201 Pkg. R3, R4 0 Ω Resistor, 0402 Pkg. U1 HMC662LP3E Log Detector PCB [2] 124131 Evaluation PCB [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Rogers 4350 or Arlon 25 FR I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 • Fax: 978-250-3373 • O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Ph e o r O ne n : 7 -l 81 i-n 3 e a 29-4t w 70 ww 0 • O .h rd iettit r o e nli.c n om license is granted by implication or otherwise under any patent or patent rights of Analog Devices. e at www.analog.com
