Datasheet HMC1094 (Analog Devices)
Fabricante | Analog Devices |
Descripción | 50 dB, Logarithmic Detector, 1 - 23 GHz |
Páginas / Página | 15 / 1 — 50 dB, Logarithmic Detector,. 1 GHz to 23 GHz. Data Sheet. HMC1094. … |
Formato / tamaño de archivo | PDF / 597 Kb |
Idioma del documento | Inglés |

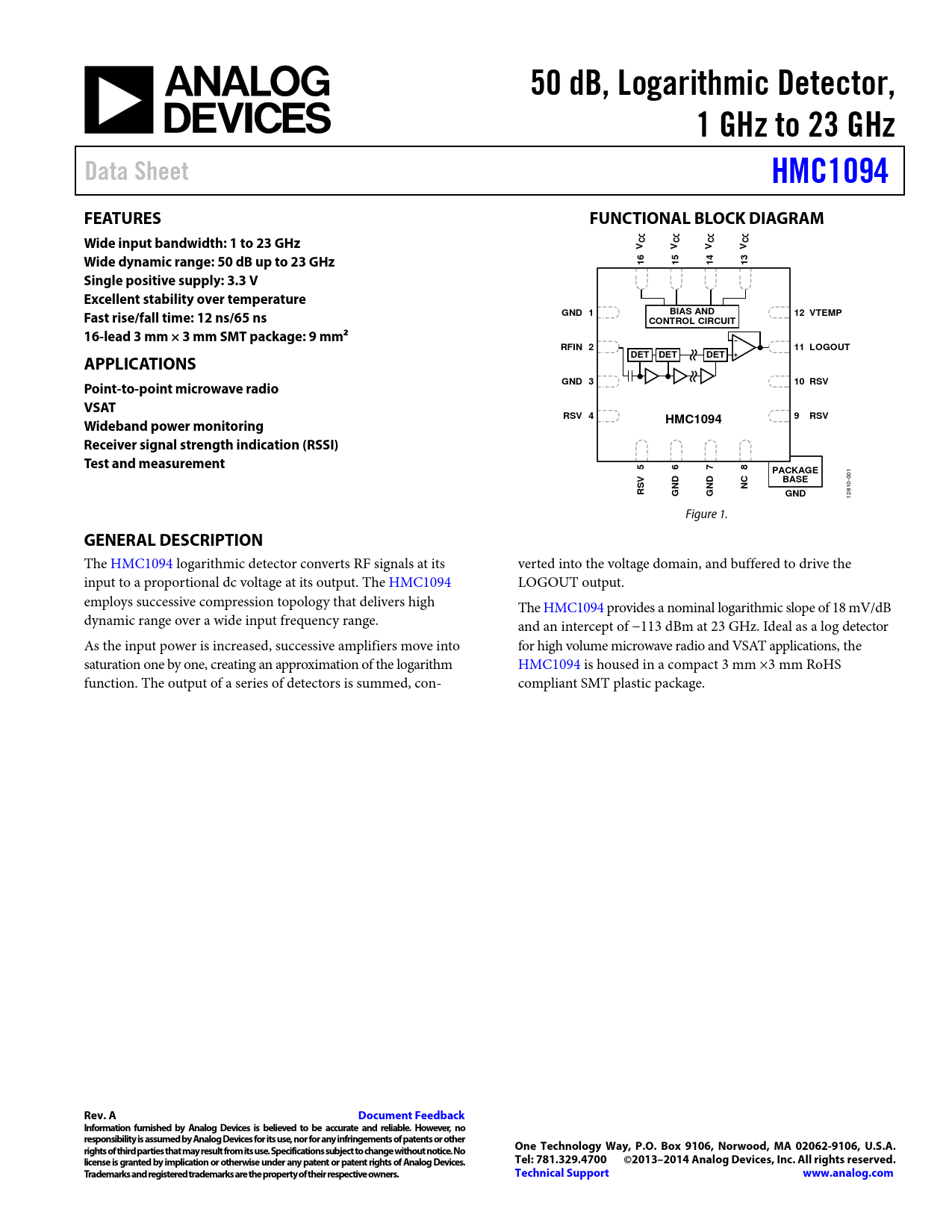

50 dB, Logarithmic Detector,. 1 GHz to 23 GHz. Data Sheet. HMC1094. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Versión de texto del documento
50 dB, Logarithmic Detector, 1 GHz to 23 GHz Data Sheet HMC1094 FEATURES FUNCTIONAL BLOCK DIAGRAM Wide input bandwidth: 1 to 23 GHz CC CC CC CC V V V V Wide dynamic range: 50 dB up to 23 GHz 16 15 14 13 Single positive supply: 3.3 V Excellent stability over temperature Fast rise/fall time: 12 ns/65 ns GND 1 BIAS AND 12 VTEMP CONTROL CIRCUIT 16-lead 3 mm × 3 mm SMT package: 9 mm² RFIN 2 11 LOGOUT APPLICATIONS DET DET DET Point-to-point microwave radio GND 3 10 RSV VSAT RSV 4 9 RSV Wideband power monitoring HMC1094 Receiver signal strength indication (RSSI) Test and measurement 5 6 7 8 PACKAGE V BASE
001
ND ND NC RS G G GND
12810- Figure 1.
GENERAL DESCRIPTION
The HMC1094 logarithmic detector converts RF signals at its verted into the voltage domain, and buffered to drive the input to a proportional dc voltage at its output. The HMC1094 LOGOUT output. employs successive compression topology that delivers high The HMC1094 provides a nominal logarithmic slope of 18 mV/dB dynamic range over a wide input frequency range. and an intercept of −113 dBm at 23 GHz. Ideal as a log detector As the input power is increased, successive amplifiers move into for high volume microwave radio and VSAT applications, the saturation one by one, creating an approximation of the logarithm HMC1094 is housed in a compact 3 mm ×3 mm RoHS function. The output of a series of detectors is summed, con- compliant SMT plastic package.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2013–2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION AND EVALUATION PRINTED CIRCUIT BOARD (PCB) SCHEMATIC EVALUATION PCB BILL OF MATERIALS FOR EVALUATION PCB PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
