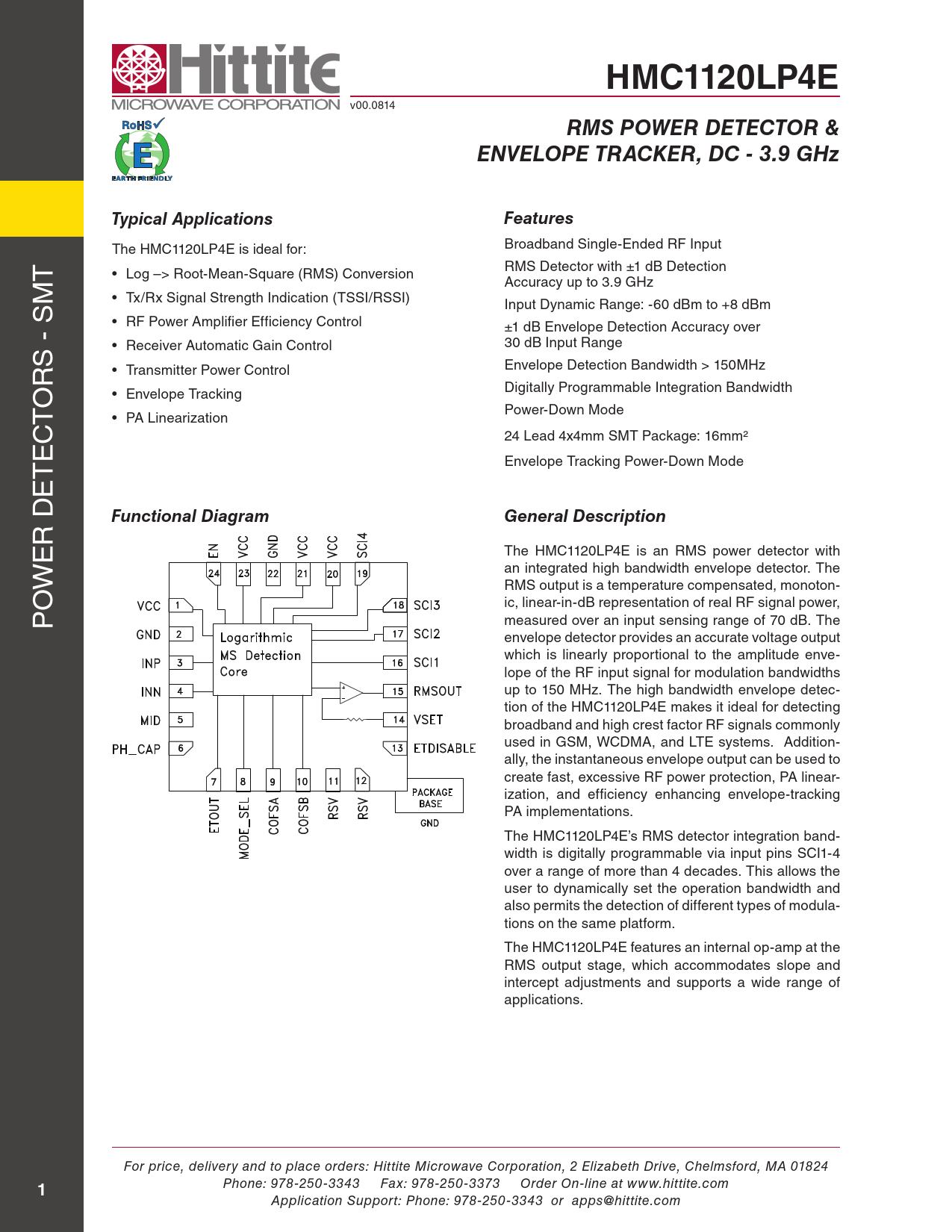

HMC1120LP4E
v00.0814
RMS POWER DETECTOR & ENVELOPE TRACKER, DC - 3.9 GHz Typical Applications Features
Broadband Single-Ended RF Input The HMC1120LP4E is ideal for: T RMS Detector with ±1 dB Detection • Log –> Root-Mean-Square (RMS) Conversion M Accuracy up to 3.9 GHz • Tx/Rx Signal Strength Indication (TSSI/RSSI) Input Dynamic Range: -60 dBm to +8 dBm S • RF Power Amplifier Efficiency Control - ±1 dB Envelope Detection Accuracy over 30 dB Input Range • Receiver Automatic Gain Control RS Envelope Detection Bandwidth > 150MHz • Transmitter Power Control O Digital y Programmable Integration Bandwidth • Envelope Tracking T Power-Down Mode • PA Linearization C 24 Lead 4x4mm SMT Package: 16mm² E T Envelope Tracking Power-Down Mode E D
Functional Diagram General Description
R E The HMC1120LP4E is an RMS power detector with W an integrated high bandwidth envelope detector. The O RMS output is a temperature compensated, monoton- ic, linear-in-dB representation of real RF signal power, P measured over an input sensing range of 70 dB. The envelope detector provides an accurate voltage output which is linearly proportional to the amplitude enve- lope of the RF input signal for modulation bandwidths up to 150 MHz. The high bandwidth envelope detec- tion of the HMC1120LP4E makes it ideal for detecting broadband and high crest factor RF signals commonly used in GSM, WCDMA, and LTE systems. Addition- al y, the instantaneous envelope output can be used to create fast, excessive RF power protection, PA linear- ization, and efficiency enhancing envelope-tracking PA implementations. The HMC1120LP4E’s RMS detector integration band- width is digital y programmable via input pins SCI1-4 over a range of more than 4 decades. This al ows the user to dynamical y set the operation bandwidth and also permits the detection of different types of modula- tions on the same platform. The HMC1120LP4E features an internal op-amp at the RMS output stage, which accommodates slope and intercept adjustments and supports a wide range of applications. For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
1
