Datasheet ADL5910 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | DC to 6 GHz, ≤45 dB Envelope Threshold Detector/Trigger |
| Páginas / Página | 22 / 7 — Data Sheet. ADL5910. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |

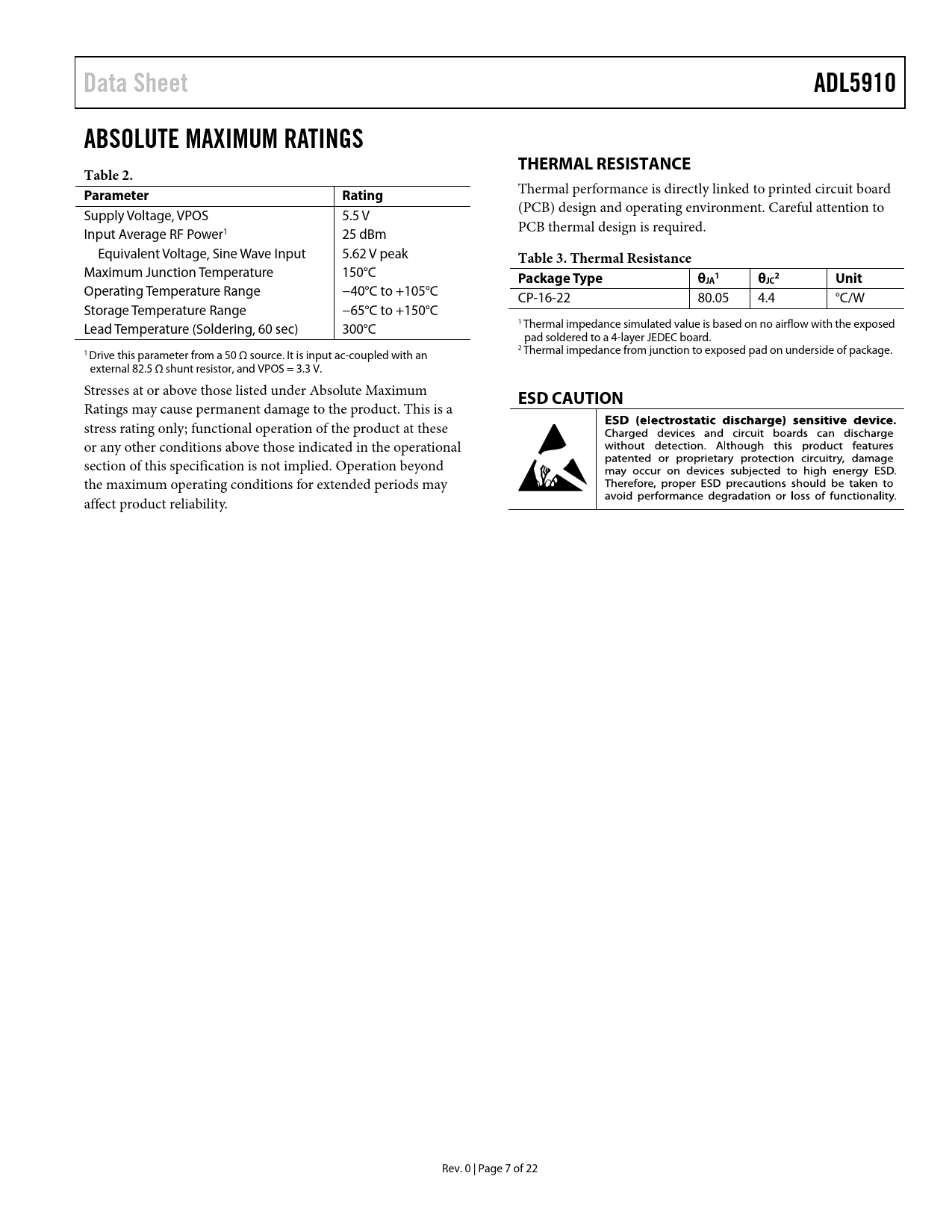

Data Sheet. ADL5910. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADL5910 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
Thermal performance is directly linked to printed circuit board Supply Voltage, VPOS 5.5 V (PCB) design and operating environment. Careful attention to Input Average RF Power1 25 dBm PCB thermal design is required. Equivalent Voltage, Sine Wave Input 5.62 V peak
Table 3. Thermal Resistance
Maximum Junction Temperature 150°C
Package Type θ 1 2 JA θJC Unit
Operating Temperature Range −40°C to +105°C CP-16-22 80.05 4.4 °C/W Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C 1 Thermal impedance simulated value is based on no airflow with the exposed pad soldered to a 4-layer JEDEC board. 2 1 Drive this parameter from a 50 Ω source. It is input ac-coupled with an Thermal impedance from junction to exposed pad on underside of package. external 82.5 Ω shunt resistor, and VPOS = 3.3 V. Stresses at or above those listed under Absolute Maximum
