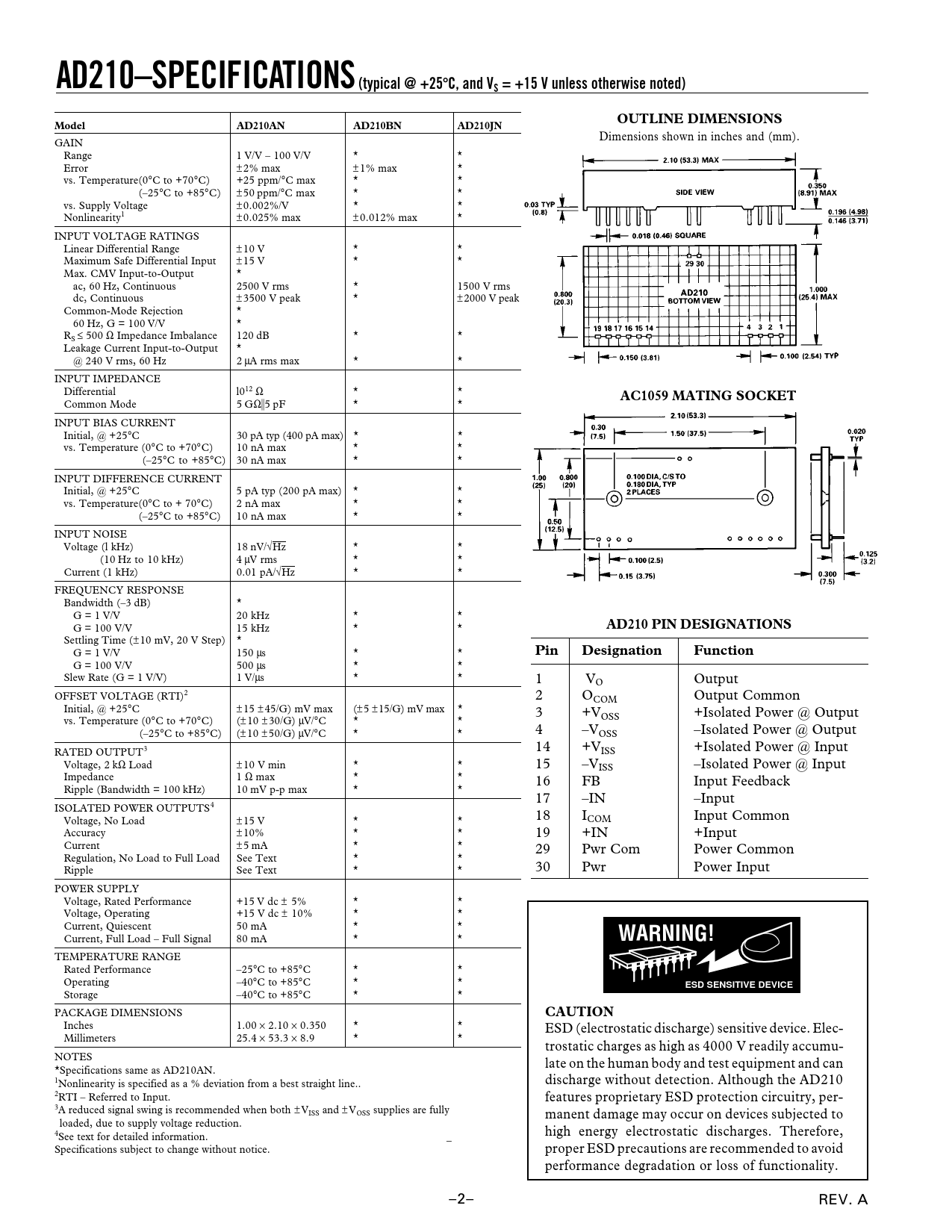

AD210–SPECIFICATIONS(typical @ +25
8
C, and VS = +15 V unless otherwise noted) OUTLINE DIMENSIONS Model AD210AN AD210BN AD210JN
Dimensions shown in inches and (mm). GAIN Range 1 V/V – 100 V/V * * Error ±2% max ±1% max * vs. Temperature(0°C to +70°C) +25 ppm/°C max * * (–25°C to +85°C) ±50 ppm/°C max * * vs. Supply Voltage ±0.002%/V * * Nonlinearity1 ±0.025% max ±0.012% max * INPUT VOLTAGE RATINGS Linear Differential Range ±10 V * * Maximum Safe Differential Input ±15 V * * Max. CMV Input-to-Output * ac, 60 Hz, Continuous 2500 V rms * 1500 V rms dc, Continuous ±3500 V peak * ±2000 V peak Common-Mode Rejection * 60 Hz, G = 100 V/V * R ≤ S 500 Ω Impedance Imbalance 120 dB * * Leakage Current Input-to-Output * @ 240 V rms, 60 Hz 2 µA rms max * * INPUT IMPEDANCE Differential l012 Ω * *
AC1059 MATING SOCKET
Common Mode 5 GΩi5 pF * * INPUT BIAS CURRENT Initial, @ +25°C 30 pA typ (400 pA max) * * vs. Temperature (0°C to +70°C) 10 nA max * * (–25°C to +85°C) 30 nA max * * INPUT DIFFERENCE CURRENT Initial, @ +25°C 5 pA typ (200 pA max) * * vs. Temperature(0°C to + 70°C) 2 nA max * * (–25°C to +85°C) 10 nA max * * INPUT NOISE Voltage (l kHz) 18 nV/√Hz * * (10 Hz to 10 kHz) 4 µV rms * * Current (1 kHz) 0.01 pA/√Hz * * FREQUENCY RESPONSE Bandwidth (–3 dB) * G = 1 V/V 20 kHz * *
AD210 PIN DESIGNATIONS
G = 100 V/V 15 kHz * * Settling Time (± 10 mV, 20 V Step) * G = 1 V/V 150 µs * *
Pin Designation Function
G = 100 V/V 500 µs * * Slew Rate (G = 1 V/V) 1 V/µs * * 1 VO Output OFFSET VOLTAGE (RTI)2 2 OCOM Output Common Initial, @ +25°C ±15 ±45/G) mV max (± 5 ±15/G) mV max * 3 +VOSS +Isolated Power @ Output vs. Temperature (0°C to +70°C) (± 10 ± 30/G) µV/°C * * 4 –V (–25°C to +85°C) (± 10 ± 50/G) µV/°C * * OSS –Isolated Power @ Output 14 +VISS +Isolated Power @ Input RATED OUTPUT3 Voltage, 2 kΩ Load ±10 V min * * 15 –VISS –Isolated Power @ Input Impedance 1 Ω max * * 16 FB Input Feedback Ripple (Bandwidth = 100 kHz) 10 mV p-p max * * 17 –IN –Input ISOLATED POWER OUTPUTS4 18 ICOM Input Common Voltage, No Load ±15 V * * Accuracy ±10% * * 19 +IN +Input Current ±5 mA * * 29 Pwr Com Power Common Regulation, No Load to Full Load See Text * * Ripple See Text * * 30 Pwr Power Input POWER SUPPLY Voltage, Rated Performance +15 V dc ± 5% * * Voltage, Operating +15 V dc ± 10% * * Current, Quiescent 50 mA * * Current, Full Load – Full Signal 80 mA * *
WARNING!
TEMPERATURE RANGE Rated Performance –25°C to +85°C * * Operating –40°C to +85°C * *
ESD SENSITIVE DEVICE
Storage –40°C to +85°C * * PACKAGE DIMENSIONS
CAUTION
