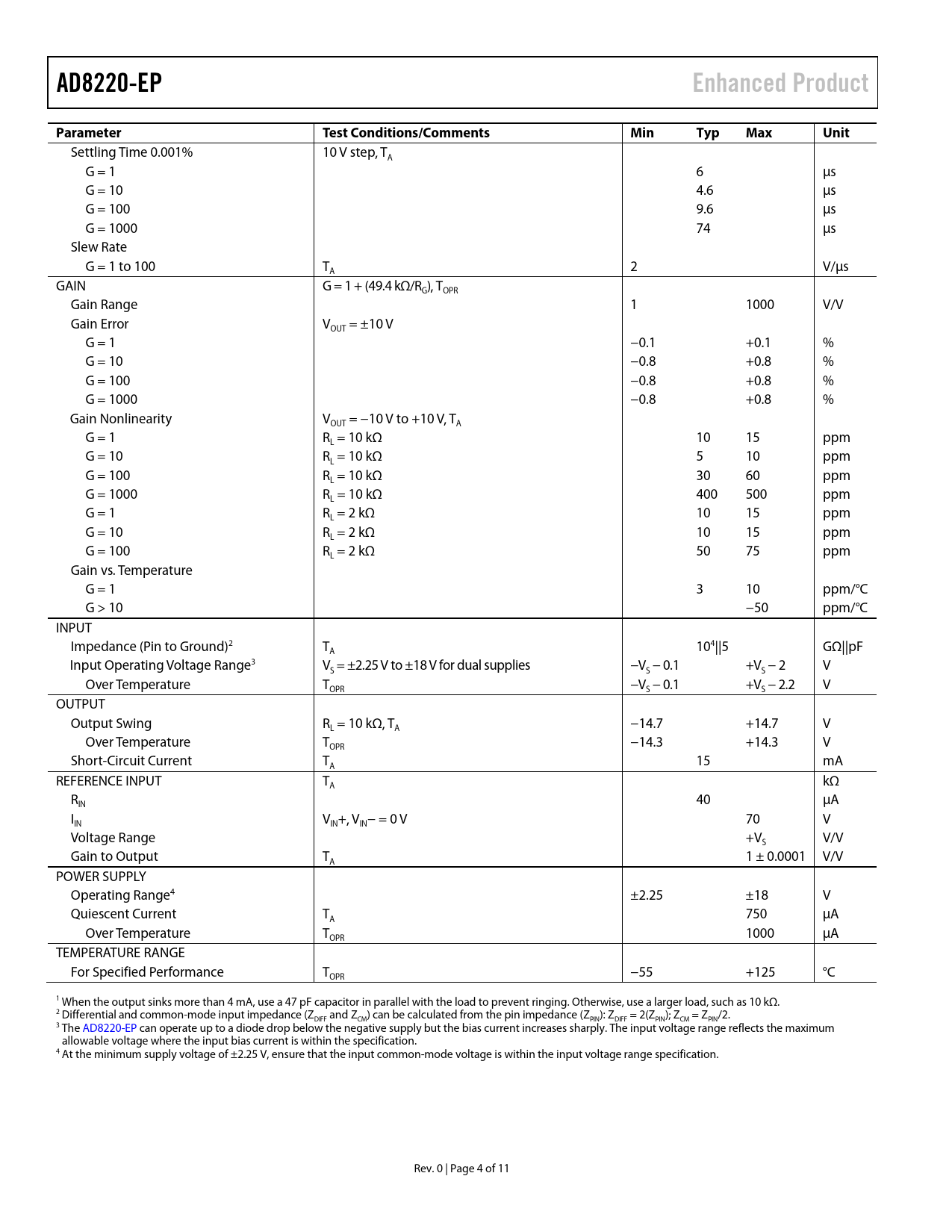

AD8220-EP. Enhanced Product. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

AD8220-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit

Versión de texto del documento

AD8220-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit
Settling Time 0.001% 10 V step, T A G = 1 6 µs G = 10 4.6 µs G = 100 9.6 µs G = 1000 74 µs Slew Rate G = 1 to 100 T 2 V/µs A GAIN G = 1 + (49.4 kΩ/R ), T G OPR Gain Range 1 1000 V/V Gain Error V = ±10 V OUT G = 1 −0.1 +0.1 % G = 10 −0.8 +0.8 % G = 100 −0.8 +0.8 % G = 1000 −0.8 +0.8 % Gain Nonlinearity V = −10 V to +10 V, T OUT A G = 1 R = 10 kΩ 10 15 ppm L G = 10 R = 10 kΩ 5 10 ppm L G = 100 R = 10 kΩ 30 60 ppm L G = 1000 R = 10 kΩ 400 500 ppm L G = 1 R = 2 kΩ 10 15 ppm L G = 10 R = 2 kΩ 10 15 ppm L G = 100 R = 2 kΩ 50 75 ppm L Gain vs. Temperature G = 1 3 10 ppm/°C G > 10 −50 ppm/°C INPUT Impedance (Pin to Ground)2 T 104||5 GΩ||pF A Input Operating Voltage Range3 V = ±2.25 V to ±18 V for dual supplies −V − 0.1 +V − 2 V S S S Over Temperature T −V − 0.1 +V − 2.2 V OPR S S OUTPUT Output Swing R = 10 kΩ, T −14.7 +14.7 V L A Over Temperature T −14.3 +14.3 V OPR Short-Circuit Current T 15 mA A REFERENCE INPUT T kΩ A R 40 µA IN I V +, V − = 0 V 70 V IN IN IN Voltage Range +V V/V S Gain to Output T 1 ± 0.0001 V/V A POWER SUPPLY Operating Range4 ±2.25 ±18 V Quiescent Current T 750 µA A Over Temperature T 1000 µA OPR TEMPERATURE RANGE For Specified Performance T −55 +125 °C OPR 1 When the output sinks more than 4 mA, use a 47 pF capacitor in parallel with the load to prevent ringing. Otherwise, use a larger load, such as 10 kΩ. 2 Differential and common-mode input impedance (ZDIFF and ZCM) can be calculated from the pin impedance (ZPIN): ZDIFF = 2(ZPIN); ZCM = ZPIN/2. 3 The AD8220-EP can operate up to a diode drop below the negative supply but the bias current increases sharply. The input voltage range reflects the maximum allowable voltage where the input bias current is within the specification. 4 At the minimum supply voltage of ±2.25 V, ensure that the input common-mode voltage is within the input voltage range specification. Rev. 0 | Page 4 of 11 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
