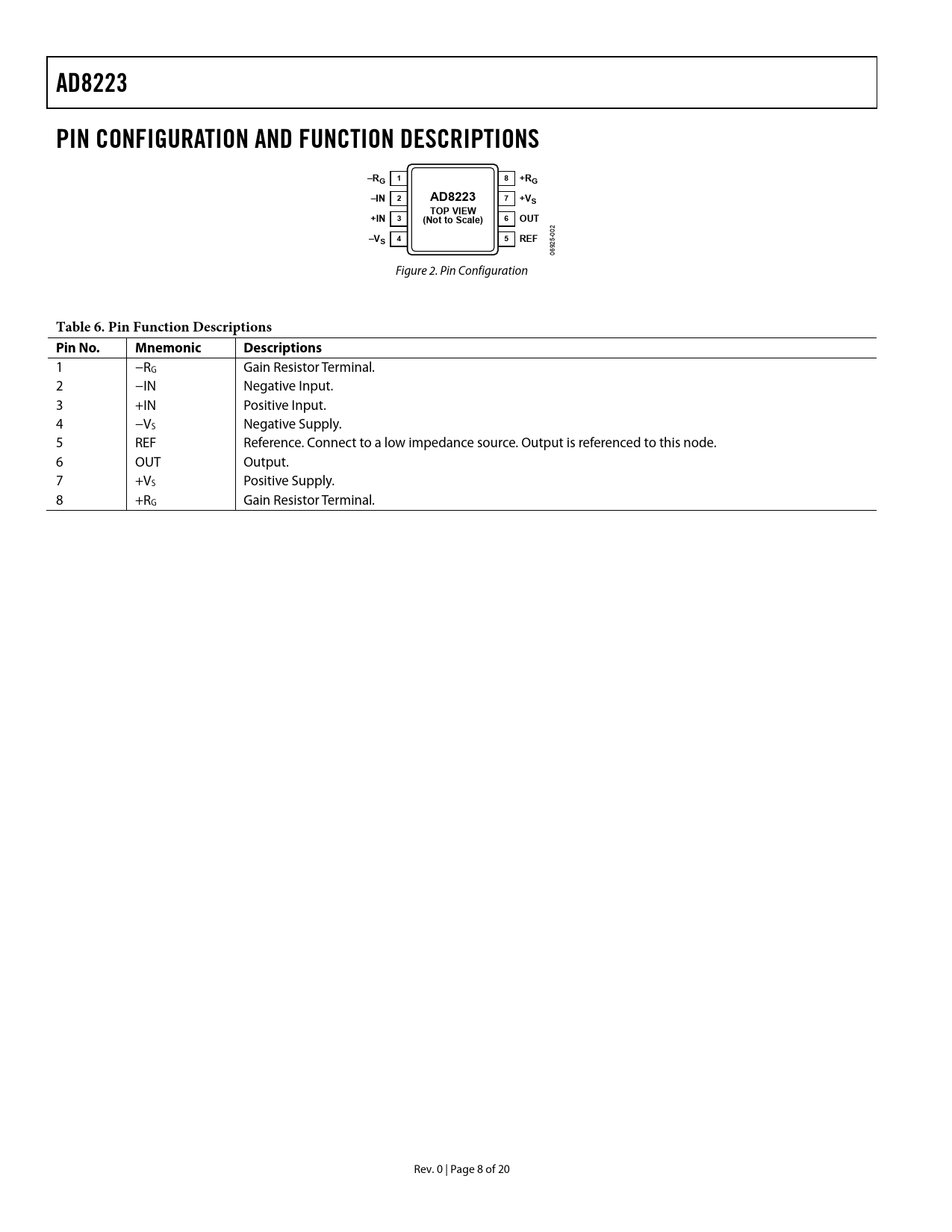

AD8223. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –RG 1. +RG. –IN. +VS. TOP VIEW. +IN. (Not to Scale). OUT. –VS 4. REF
Versión de texto del documento
AD8223 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS –RG 1 8 +RG –IN 2 AD8223 7 +VS TOP VIEW +IN 3 6 (Not to Scale) OUT
02 0
–VS 4 5 REF
5- 692 0 Figure 2. Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Descriptions
1 −RG Gain Resistor Terminal. 2 −IN Negative Input. 3 +IN Positive Input. 4 −VS Negative Supply. 5 REF Reference. Connect to a low impedance source. Output is referenced to this node. 6 OUT Output. 7 +VS Positive Supply. 8 +RG Gain Resistor Terminal. Rev. 0 | Page 8 of 20 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS SINGLE SUPPLY DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER ARCHITECTURE GAIN SELECTION INPUT VOLTAGE RANGE REFERENCE TERMINAL INPUT PROTECTION RF INTERFERENCE (RFI) GROUND RETURNS FOR INPUT BIAS CURRENTS APPLICATIONS INFORMATION BASIC CONNECTION DIFFERENTIAL OUTPUT OUTPUT BUFFERING CABLES Receiving from a Cable Driving a Cable A SINGLE-SUPPLY DATA ACQUISITION SYSTEM AMPLIFYING SIGNALS WITH LOW COMMON-MODE VOLTAGE OUTLINE DIMENSIONS ORDERING GUIDE
