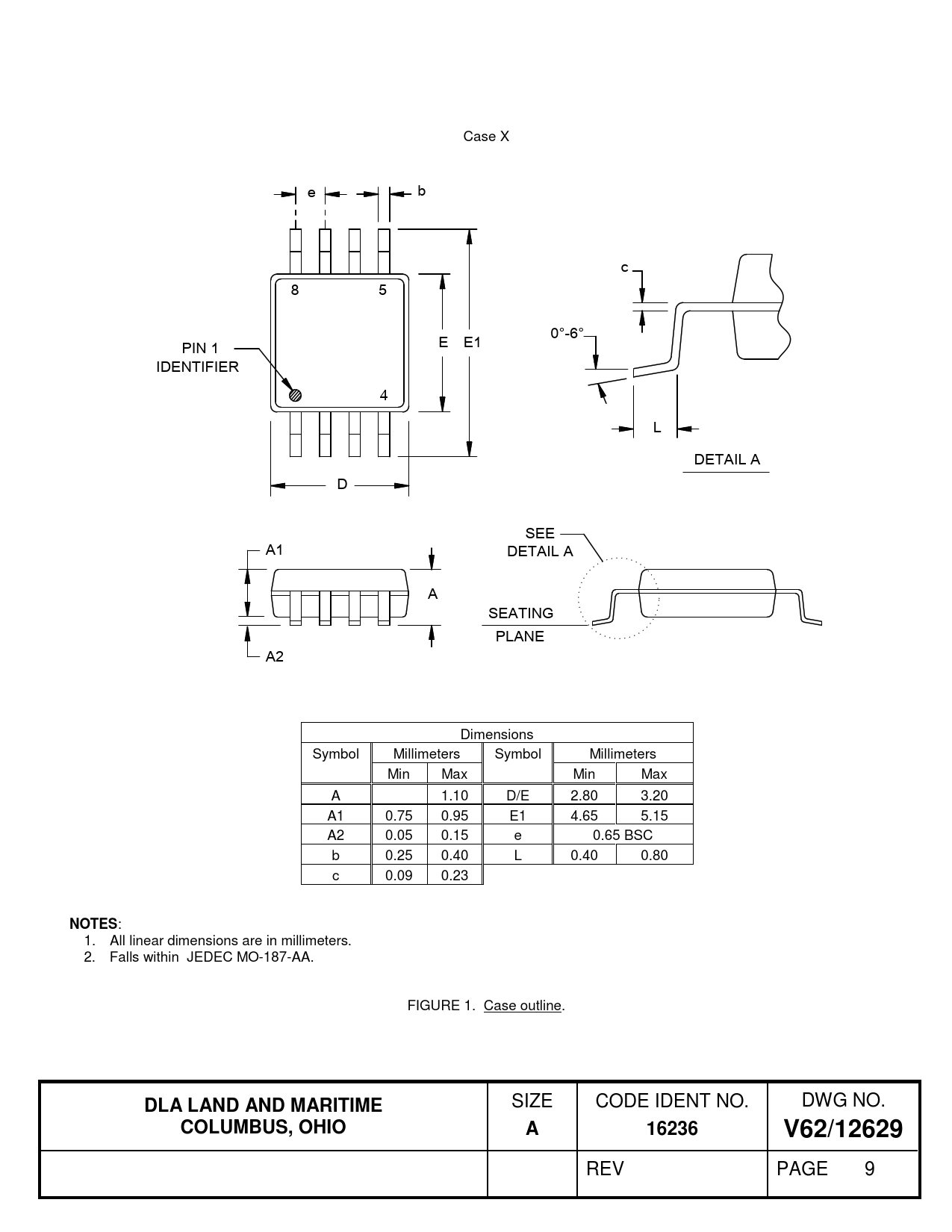

Case X e b c 8 5 E E1 0°-6° PIN 1 IDENTIFIER 4 L DETAIL A D SEE A1 DETAIL A A SEATING PLANE A2 Dimensions Symbol Millimeters Symbol Millimeters Min Max Min Max A 1.10 D/E 2.80 3.20 A1 0.75 0.95 E1 4.65 5.15 A2 0.05 0.15 e 0.65 BSC b 0.25 0.40 L 0.40 0.80 c 0.09 0.23
NOTES
: 1. All linear dimensions are in millimeters. 2. Falls within JEDEC MO-187-AA. FIGURE 1. Case outline.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12629
REV PAGE 9 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12629 REV
