VOCM TO ±OUT SPECIFICATIONS. Dynamic performance. Noise. DC performance. Power supply. DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236
Línea de modelo para esta hoja de datos
Versión de texto del documento

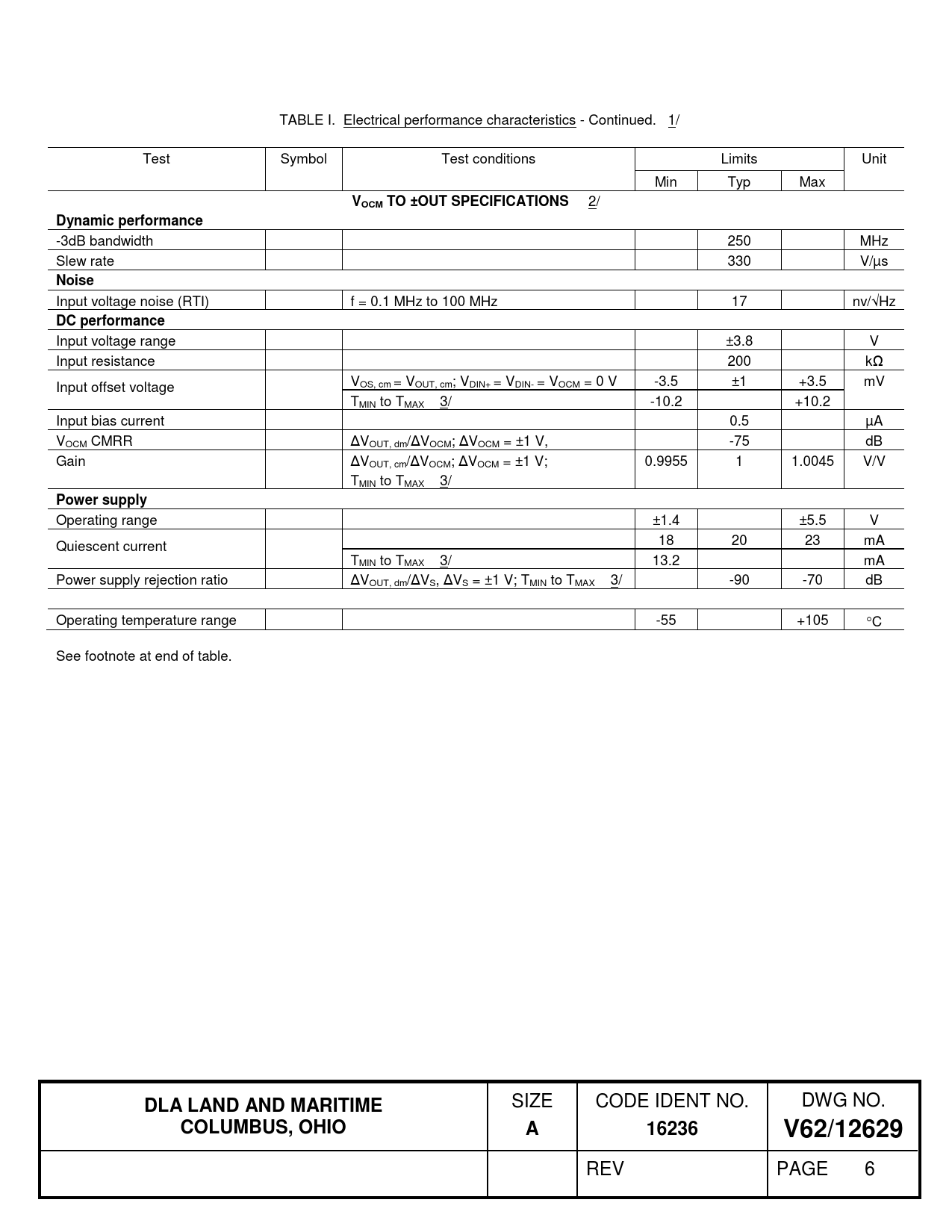

TABLE I. Electrical performance characteristics - Continued. 1/ Test Symbol Test conditions Limits Unit Min Typ Max
VOCM TO ±OUT SPECIFICATIONS
2/
Dynamic performance
-3dB bandwidth 250 MHz Slew rate 330 V/µs
Noise
Input voltage noise (RTI) f = 0.1 MHz to 100 MHz 17 nv/√Hz
DC performance
Input voltage range ±3.8 V Input resistance 200 kΩ Input offset voltage VOS, cm = VOUT, cm; VDIN+ = VDIN- = VOCM = 0 V -3.5 ±1 +3.5 mV TMIN to TMAX 3/ -10.2 +10.2 Input bias current 0.5 µA VOCM CMRR ΔVOUT, dm/ΔVOCM; ΔVOCM = ±1 V, -75 dB Gain ΔVOUT, cm/ΔVOCM; ΔVOCM = ±1 V; 0.9955 1 1.0045 V/V TMIN to TMAX 3/
Power supply
Operating range ±1.4 ±5.5 V Quiescent current 18 20 23 mA TMIN to TMAX 3/ 13.2 mA Power supply rejection ratio ΔVOUT, dm/ΔVS, ΔVS = ±1 V; TMIN to TMAX 3/ -90 -70 dB Operating temperature range -55 +105 °C See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12629
REV PAGE 6 Document Outline DESCRIPTION REV REV PMIC N/A TITLE SIZE A V62/12629 REV
