| Fabricante | Analog Devices |
| Descripción | 3.3 GHz Ultralow Distortion RF/IF Differential Amplifier |
| Páginas / Página | 21 / 6 — ADL5562. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 566 Kb |
| Idioma del documento | Inglés |

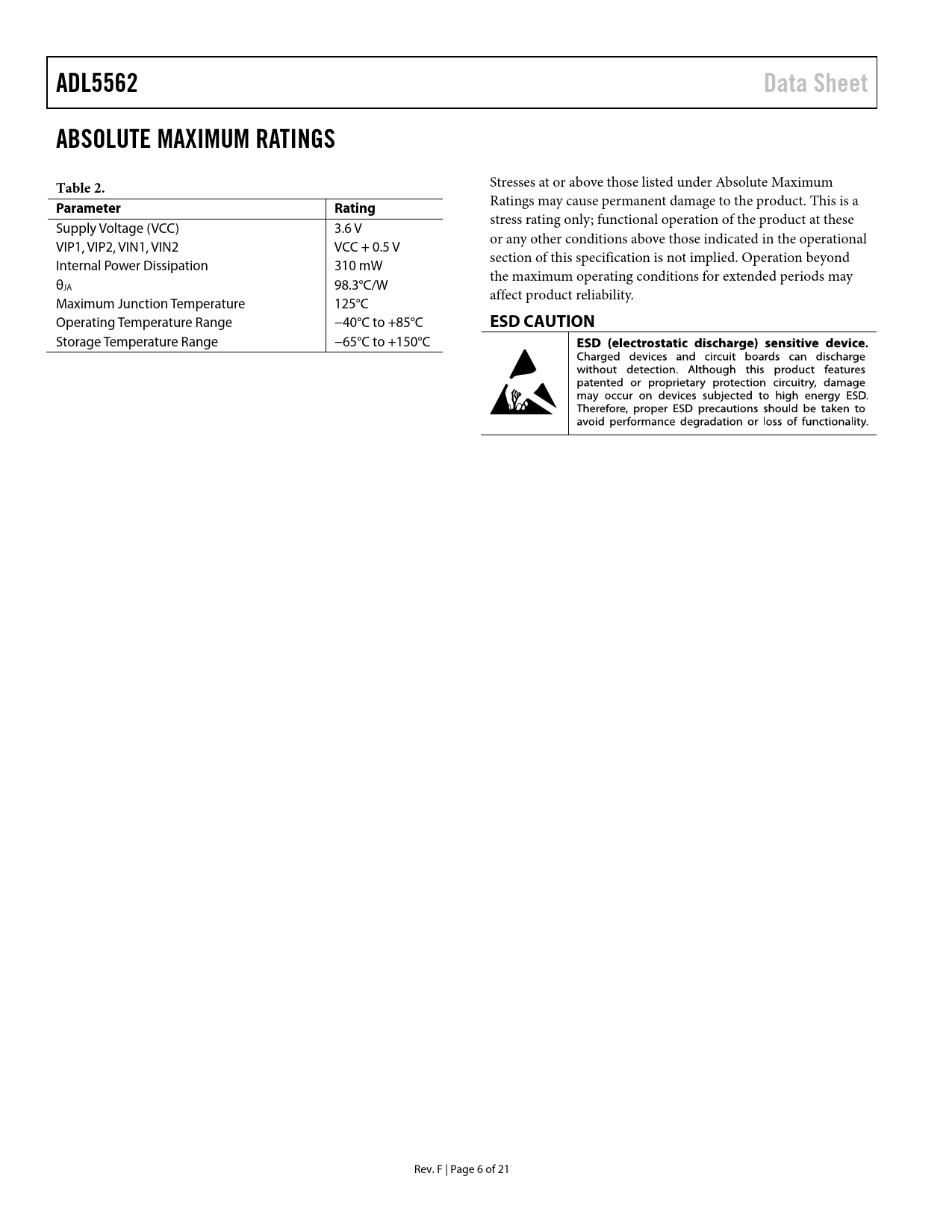

ADL5562. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5562 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage (VCC) 3.6 V or any other conditions above those indicated in the operational VIP1, VIP2, VIN1, VIN2 VCC + 0.5 V section of this specification is not implied. Operation beyond Internal Power Dissipation 310 mW the maximum operating conditions for extended periods may θJA 98.3°C/W affect product reliability. Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Rev. F | Page 6 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
