Data Sheet. ADL5562. SPECIFICATIONS. Table 1. Parameter. Conditions. Min Typ. Max Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5

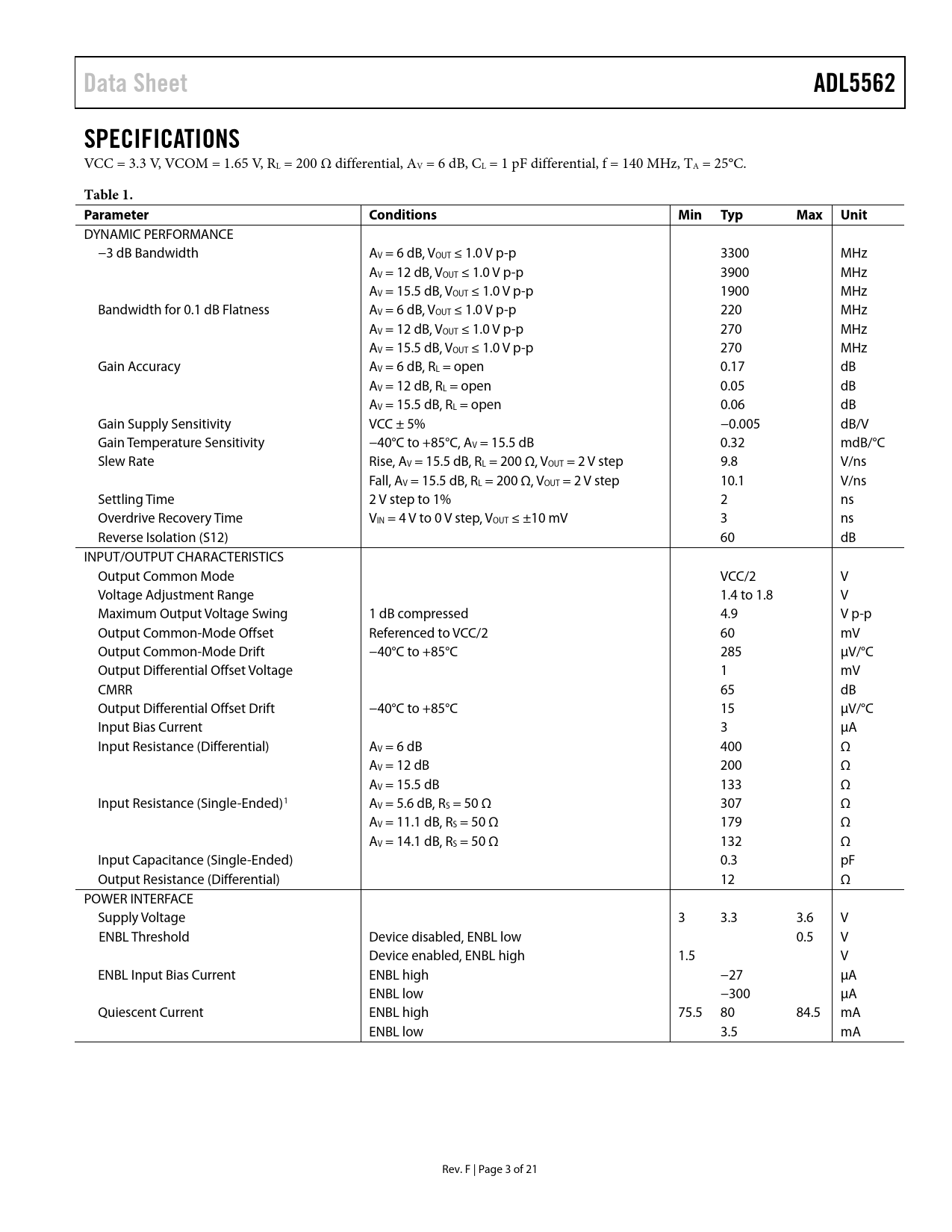

Data Sheet ADL5562 SPECIFICATIONS
VCC = 3.3 V, VCOM = 1.65 V, RL = 200 Ω differential, AV = 6 dB, CL = 1 pF differential, f = 140 MHz, TA = 25°C.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth AV = 6 dB, VOUT ≤ 1.0 V p-p 3300 MHz AV = 12 dB, VOUT ≤ 1.0 V p-p 3900 MHz AV = 15.5 dB, VOUT ≤ 1.0 V p-p 1900 MHz Bandwidth for 0.1 dB Flatness AV = 6 dB, VOUT ≤ 1.0 V p-p 220 MHz AV = 12 dB, VOUT ≤ 1.0 V p-p 270 MHz AV = 15.5 dB, VOUT ≤ 1.0 V p-p 270 MHz Gain Accuracy AV = 6 dB, RL = open 0.17 dB AV = 12 dB, RL = open 0.05 dB AV = 15.5 dB, RL = open 0.06 dB Gain Supply Sensitivity VCC ± 5% −0.005 dB/V Gain Temperature Sensitivity −40°C to +85°C, AV = 15.5 dB 0.32 mdB/°C Slew Rate Rise, AV = 15.5 dB, RL = 200 Ω, VOUT = 2 V step 9.8 V/ns Fall, AV = 15.5 dB, RL = 200 Ω, VOUT = 2 V step 10.1 V/ns Settling Time 2 V step to 1% 2 ns Overdrive Recovery Time VIN = 4 V to 0 V step, VOUT ≤ ±10 mV 3 ns Reverse Isolation (S12) 60 dB INPUT/OUTPUT CHARACTERISTICS Output Common Mode VCC/2 V Voltage Adjustment Range 1.4 to 1.8 V Maximum Output Voltage Swing 1 dB compressed 4.9 V p-p Output Common-Mode Offset Referenced to VCC/2 60 mV Output Common-Mode Drift −40°C to +85°C 285 µV/°C Output Differential Offset Voltage 1 mV CMRR 65 dB Output Differential Offset Drift −40°C to +85°C 15 µV/°C Input Bias Current 3 µA Input Resistance (Differential) AV = 6 dB 400 Ω AV = 12 dB 200 Ω AV = 15.5 dB 133 Ω Input Resistance (Single-Ended)1 AV = 5.6 dB, RS = 50 Ω 307 Ω AV = 11.1 dB, RS = 50 Ω 179 Ω AV = 14.1 dB, RS = 50 Ω 132 Ω Input Capacitance (Single-Ended) 0.3 pF Output Resistance (Differential) 12 Ω POWER INTERFACE Supply Voltage 3 3.3 3.6 V ENBL Threshold Device disabled, ENBL low 0.5 V Device enabled, ENBL high 1.5 V ENBL Input Bias Current ENBL high −27 µA ENBL low −300 µA Quiescent Current ENBL high 75.5 80 84.5 mA ENBL low 3.5 mA Rev. F | Page 3 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADL5562 SPECIFICATIONS
VCC = 3.3 V, VCOM = 1.65 V, RL = 200 Ω differential, AV = 6 dB, CL = 1 pF differential, f = 140 MHz, TA = 25°C.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth AV = 6 dB, VOUT ≤ 1.0 V p-p 3300 MHz AV = 12 dB, VOUT ≤ 1.0 V p-p 3900 MHz AV = 15.5 dB, VOUT ≤ 1.0 V p-p 1900 MHz Bandwidth for 0.1 dB Flatness AV = 6 dB, VOUT ≤ 1.0 V p-p 220 MHz AV = 12 dB, VOUT ≤ 1.0 V p-p 270 MHz AV = 15.5 dB, VOUT ≤ 1.0 V p-p 270 MHz Gain Accuracy AV = 6 dB, RL = open 0.17 dB AV = 12 dB, RL = open 0.05 dB AV = 15.5 dB, RL = open 0.06 dB Gain Supply Sensitivity VCC ± 5% −0.005 dB/V Gain Temperature Sensitivity −40°C to +85°C, AV = 15.5 dB 0.32 mdB/°C Slew Rate Rise, AV = 15.5 dB, RL = 200 Ω, VOUT = 2 V step 9.8 V/ns Fall, AV = 15.5 dB, RL = 200 Ω, VOUT = 2 V step 10.1 V/ns Settling Time 2 V step to 1% 2 ns Overdrive Recovery Time VIN = 4 V to 0 V step, VOUT ≤ ±10 mV 3 ns Reverse Isolation (S12) 60 dB INPUT/OUTPUT CHARACTERISTICS Output Common Mode VCC/2 V Voltage Adjustment Range 1.4 to 1.8 V Maximum Output Voltage Swing 1 dB compressed 4.9 V p-p Output Common-Mode Offset Referenced to VCC/2 60 mV Output Common-Mode Drift −40°C to +85°C 285 µV/°C Output Differential Offset Voltage 1 mV CMRR 65 dB Output Differential Offset Drift −40°C to +85°C 15 µV/°C Input Bias Current 3 µA Input Resistance (Differential) AV = 6 dB 400 Ω AV = 12 dB 200 Ω AV = 15.5 dB 133 Ω Input Resistance (Single-Ended)1 AV = 5.6 dB, RS = 50 Ω 307 Ω AV = 11.1 dB, RS = 50 Ω 179 Ω AV = 14.1 dB, RS = 50 Ω 132 Ω Input Capacitance (Single-Ended) 0.3 pF Output Resistance (Differential) 12 Ω POWER INTERFACE Supply Voltage 3 3.3 3.6 V ENBL Threshold Device disabled, ENBL low 0.5 V Device enabled, ENBL high 1.5 V ENBL Input Bias Current ENBL high −27 µA ENBL low −300 µA Quiescent Current ENBL high 75.5 80 84.5 mA ENBL low 3.5 mA Rev. F | Page 3 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
