Data Sheet. AD8475. –IN 0.8x 1. 10 +IN 0.8x. –IN 0.4x 2. 9 +IN 0.4x. TOP VIEW. 8 –VS. (Not to Scale. VOCM 4. 7 NC. +OUT 5. 6 –OUT
Línea de modelo para esta hoja de datos
Versión de texto del documento

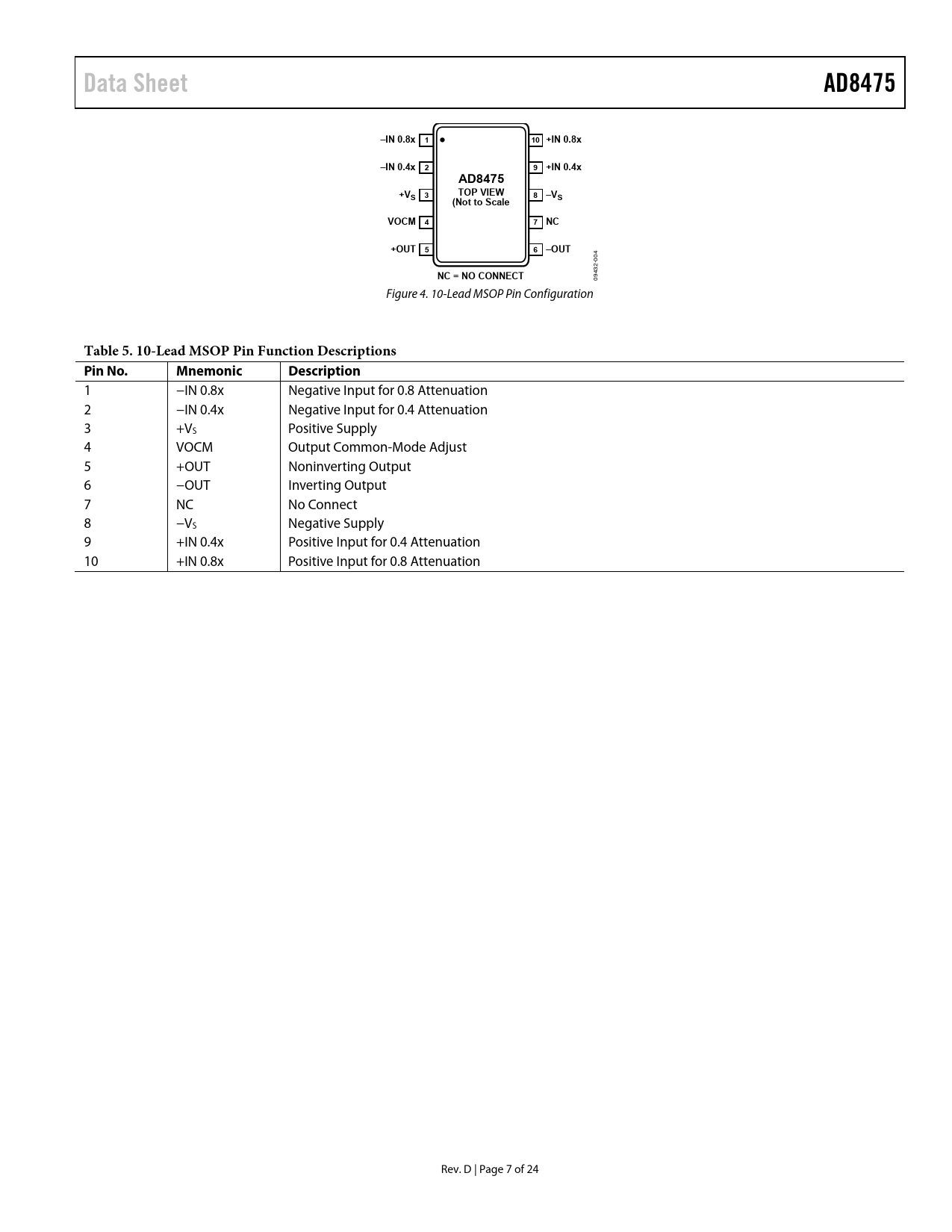

Data Sheet AD8475 –IN 0.8x 1 10 +IN 0.8x –IN 0.4x 2 9 +IN 0.4x AD8475 +V TOP VIEW S 3 8 –VS (Not to Scale VOCM 4 7 NC +OUT 5 6 –OUT
04 0 2-
NC = NO CONNECT
943 0 Figure 4. 10-Lead MSOP Pin Configuration
Table 5. 10-Lead MSOP Pin Function Descriptions Pin No. Mnemonic Description
1 −IN 0.8x Negative Input for 0.8 Attenuation 2 −IN 0.4x Negative Input for 0.4 Attenuation 3 +VS Positive Supply 4 VOCM Output Common-Mode Adjust 5 +OUT Noninverting Output 6 −OUT Inverting Output 7 NC No Connect 8 −VS Negative Supply 9 +IN 0.4x Positive Input for 0.4 Attenuation 10 +IN 0.8x Positive Input for 0.8 Attenuation Rev. D | Page 7 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION OVERVIEW CIRCUIT INFORMATION Output Common-Mode Voltage (VOCM) DC PRECISION INPUT VOLTAGE RANGE DRIVING THE AD8475 POWER SUPPLIES APPLICATIONS INFORMATION TYPICAL CONFIGURATION SINGLE-ENDED TO DIFFERENTIAL CONVERSION SETTING THE OUTPUT COMMON-MODE VOLTAGE HIGH PERFORMANCE ADC DRIVING AD8475 EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
